JINGTIAN SNB-3 Solder paste Rotational Viscometer with Data analysis software 80 million cp
Equipped with data collection analysis and drawing software, can collect analysis and download data, measurement viscosity up to 80000000mPa·s, equipped with L1, L2, L3, L4 four rotors, accuracy +/- 1%, suitable for testing high viscosity samples such as solder paste.
JingTian
SNB-3 + Data analysis software
-
FANGRUI LVDV-1T Laboratory Rotational Viscometer Viscosity: 1~ 2 million mPa·s
$ 1247.00 -
NIRUN NTV-T3HA viscosity temperature control machine 20 million cp 250 ℃ hot-melt adhesive and other molten materials
$ 4308.00 -
NIRUN 6000 series, standard solution (not sold separately)
$ 222.00 -
HUINUO NDJ-8ST Digital Rotational Viscometer 3 mode measurement with temperature probe 2 million cP
$ 444.00 -
NIRUN NTV-P3LV Digital Viscometer Rotor Viscosity Testing Instrument 6 million mpa.s
$ 4372.00
Introduction
The LCD of Jingtian SNB-3 digital display rotary viscometer can display viscosity, rotation speed, temperature, percentage torque, rotor number and the maximum measurable viscosity value of the selected rotor at the current rotation speed, etc. It is a digital display Rotational Viscometer with a measuring range of 160 to 80,000,000 mPa·s .

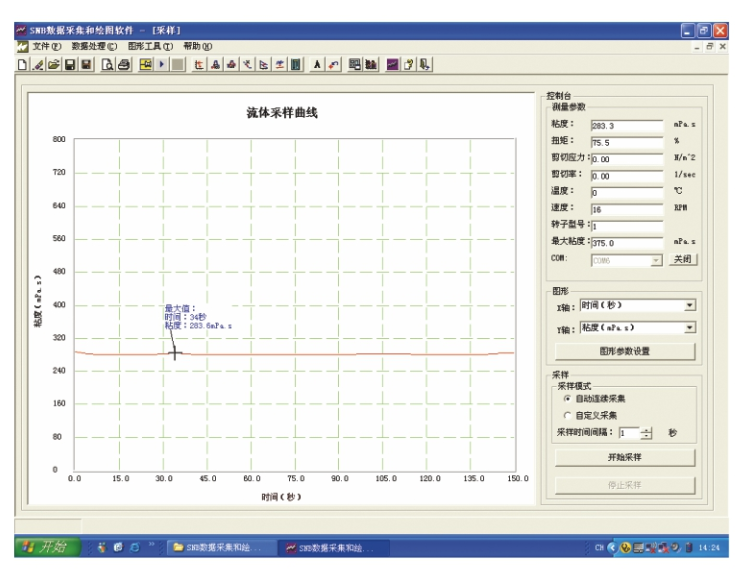

Introduction to data acquisition, analysis and graphing software
Automatically collect and record measurement data and generate relevant measurement curves, conduct data analysis, support ten historical data comparisons, output excel format files and print charts.
JingTian SNB-3 + Data analysis software Digital Rotational ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital |
| Measurement range | 160~80000000mPa·s |
| Rotor specification | L1#、L2#、L3#、L4# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 0.1~99.9rpm |
| Display information | Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc |
| Rotation speed Control mode | Continuously variable speed |
| software system | Data collection analysis and mapping software |
JingTian SNB-3 + Data analysis software Digital Rotational ViscoMeter Packing list
Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
