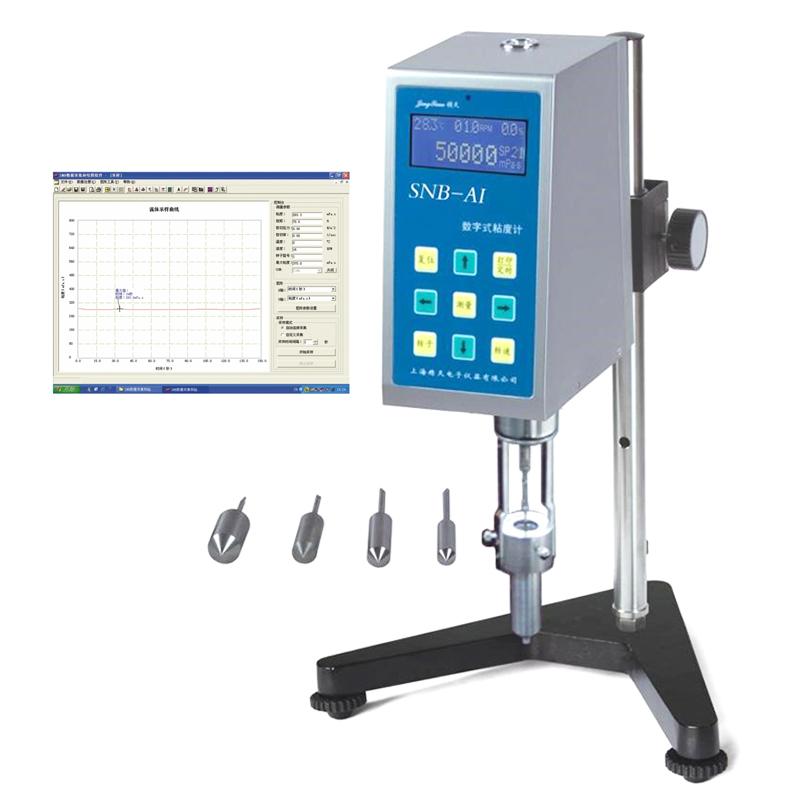

JINGTIAN SNB-AI Digital display Rotational Viscometer with Data analysis software 10 million CP
Equipped with data collection analysis and mapping software, can collect analysis and download data, measurement viscosity up to 10000000mPa·s, with 21, 27, 28, 29 four rotors, accuracy +/- 1%.
JingTian
SNB-AI + Data analysis software
-
Shangtian Jingyi RVT-2H T Series Color Screen Viscometer Viscosity-Tester 4 × 10 ^ 7 mPa.s
$ 4025.00 -
HUINUO SNB-2 digital display Rotational Viscometer with a small number of sample adapters
$ 1415.00 -
NIRUN LSNB-AI Digital Viscometer Viscosity range 10~6000000MPa · s
$ 1849.00 -
HUINUO SNB-3 digital Rotational Viscometer Viscosity Detector with L0 rotor
$ 1367.00 -
HUINUO SNB-1 Digital display Rotational Viscometer 600,000 CP
$ 879.00
Introduction
The SNB-AI intelligent digital viscometer adopts a 16-bit microcomputer processor core control circuit, without gear drive, and has intelligent automatic measurement and manual measurement methods. The blue screen LCD digital display directly displays the viscosity, rotation speed, temperature, percentage torque, rotor number and the maximum measurable viscosity value of the selected rotor at the current rotation speed. The sample volume is small, only 10-20ml. The optional "Data Acquisition and Drawing Software" can be used to perform multiple mathematical statistical analysis tasks such as data acquisition, data storage, and historical data comparison. The circuit adopts patch technology, with compact structure and reasonable layout. The measurement performance and functions of this series of products are close to the professional level of similar foreign products.
This instrument can measure the viscous resistance of liquids and the dynamic viscosity of liquids. Widely used in viscosity measurement of various fluids such as grease, paint, food, papermaking, cosmetics, chemicals, coatings, capsules, etc. Equipped with a special temperature-controlled heater, it can be used to measure the apparent viscosity of asphalt, hot sol, paraffin, high polymer and other fluids.
Measurement principle
As shown in the figure, the stepper motor is driven with high subdivision to drive the sensor pointer, and the rotor is driven to rotate through the hairspring and the rotating shaft. If the rotor is not resisted by the liquid, the hairspring sensor pointer is at the same position as the stepper motor sensor pointer. On the contrary, if the rotor is subjected to viscous resistance from the liquid, the hairspring generates torque to compete with the viscous resistance, and finally reaches balance. At this time, the photoelectric sensor outputs signals to the 16-bit microcomputer processor for data processing, and displays the liquid viscosity value (mPa·s) on the LCD.
Instrument structure
Rear structure diagram
Front structure diagram
Technical performance
Rotor kit
| Rotor number | No. 0 | The 21st | No. 27 | No. 28 | No. 29 |
| Measuring range (mPa·s) | 3ï½60K | 50ï½500K | 250ï½2.5M | 500ï½5M | 1Kï½10M |
| Rotation speed (rev/min) | 0.1ï½200 (continuously variable speed) | ||||
| Rotor specifications | 21, 27, 28, 29 (No. 0 is optional) | ||||
| measurement method | Manual measurement, automatic measurement | ||||
| measurement accuracy | ±1%ï¼FSï¼ | ||||
| Reproducibility | ±0.5% | ||||
| power supply | Special power adapter (input 100~240V, 50~60Hz) | ||||
Note K=1,000 M=1,000,000

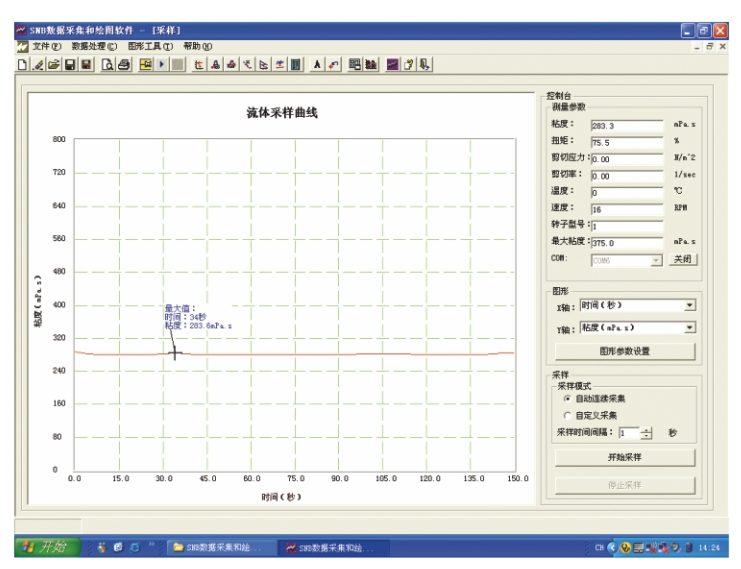

Introduction to data acquisition, analysis and graphing software
Automatically collect and record measurement data and generate relevant measurement curves, conduct data analysis, support ten historical data comparisons, output excel format files and print charts.
JingTian SNB-AI + Data analysis software Digital Rotational ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | 50~10000000mPa·s |
| Rotor specification | 21#、 27#、28#、29# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 0.1~200rpm |
| Display information | Viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc |
| Measurement mode | Manual measurement, automatic measurement |
| Rotation speed Control mode | Continuously variable speed |
| software system | With data collection analysis and mapping software |
JingTian SNB-AI + Data analysis software Digital Rotational ViscoMeter Packing list
Host X1, bracket X1, measuringflask X1, rotor X1 (sleeve), base and level adjusting bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
