Introduction

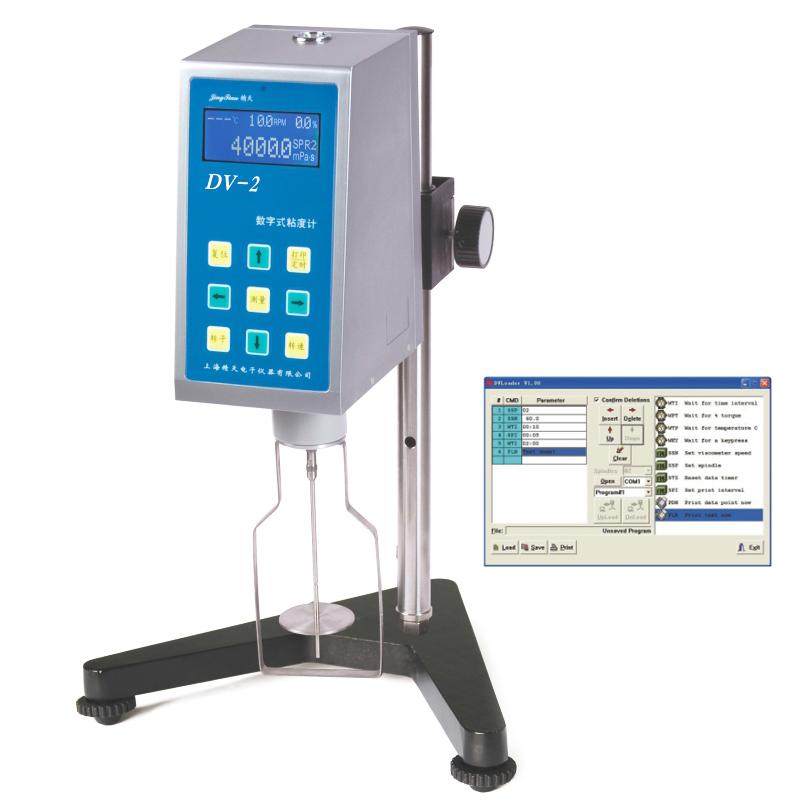

The LCD of Shanghai Jingtian RVDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotation speed, temperature, percentage torque, rotor number and the maximum measurable value of the selected rotor at the current rotation speed. Viscosity value, etc. It is a digital display Rotational Viscometer with a measuring range of 40 to 40,000,000 mPa·s.
Dimensions

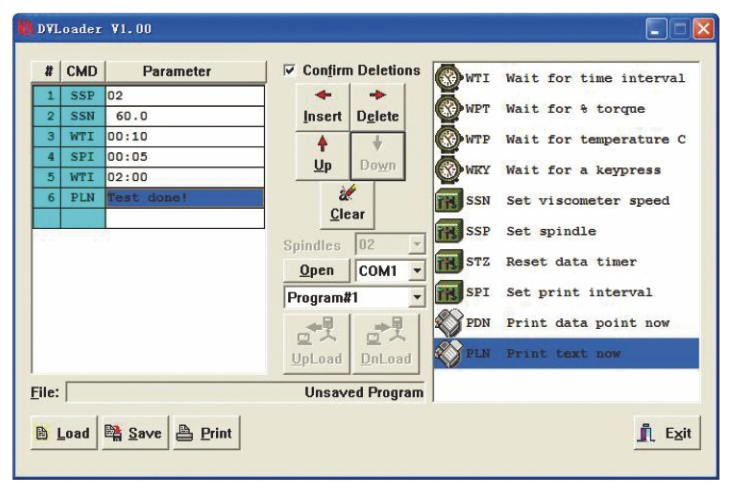

Software Description
Connect DV series viscometer and PC. Prepare a test program on the computer and download the test parameters to the viscometer.
JingTian RVDV-2 + program-controlled download software Digital Rotational ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital |
| Measurement range | 40~40000000mPa·s |
| Rotor specification | R2#、 R3#、R4#、R5#、R6#、R7# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 0.1~200rpm |
| Display information | Viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc |
| Rotation speed Control mode | Continuously variable speed |
| software system | With DV program control download software |
JingTian RVDV-2 + program-controlled download software Digital Rotational Viscometer Packing list
Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1, RS232 standard output interface X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
