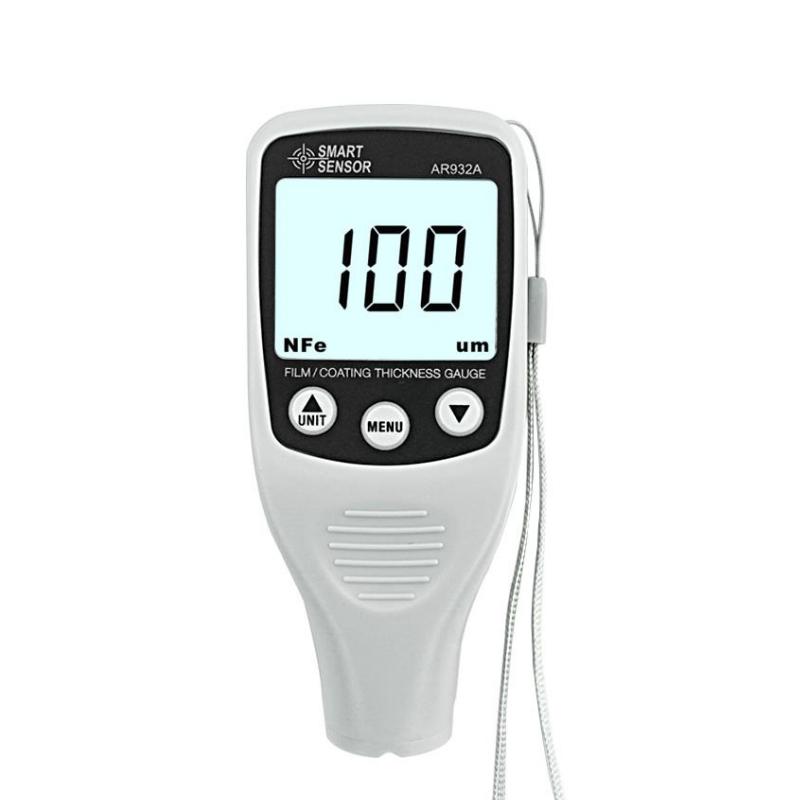

SMART SENSOR AR932A Galvanized Thickness Gauge 0um~ 1999um
AR932 upgrade, range 0um~ 1999um, accuracy +/- 2μm, built-in integrated probe, magnetic Induction and eddy Current two thickness measurement principles.
SMART SENSOR
AR932A
-
Qnix Fe/NFe 1.2mm Dual Function Thickness Probe for magnetic Induction and eddy Current 1250μm
$ 1041.00 -
DONGRU DR320 Coating Thickness Gauge electromagnetic induction principle for magnetic metal substrate surface platings measurement
$ 306.00 -
CHINA CTG-802-1500FV cylindrical coating Thickness Gauge, split iron-based large V type, suitable for surface measurement
$ 228.00 -
DONGRU DR5000S Coating Thickness Gauge 0~5000μm
$ 259.00 -
German EPK probe N1.6/90 eddy current Thickness Gauge probe, thickness range 0~1600um
$ 2247.00
Introduction
The high-range galvanized Thickness Gauge AR932A is based on the conventional AR932 and is specifically designed for galvanized coatingsIt is designed for R&D.
The AR932A is a coating Thickness Gauge with a wider range of applications, which has small measurement error, good stability, high reliability, easy operation, and coating Thickness GaugeThe matrix is generally divided into magnetic metal matrix steel, iron, alloy and hard steel, etc.) and non-magnetic metal matrix (generally referring to aluminum, copper, zinc, tin, etc.)It is a testing instrument required to control and ensure product quality
Application
It is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection, and second-handautomobiles, automobile manufacturing industry, etc.
It can be widely used to measure the electroplating layer of copper, chromium, zinc and other plating layers on steel or the thickness of coatings such as paints, coatings, enamels, etc.At the same time, it can measure the thickness of anodized film on aluminum and magnesium materials, the coating thickness on non-ferrous metal materials such as copper, aluminum, magnesium and zinc, and aluminum, copper and goldThe thickness of foil strips, paper, and plastic films, and the thickness of thermal spray coatings on various steel and non-ferrous metal materials.
SMART SENSOR AR932A Galvanized layer Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Standards | GB/T4956-2003;GB/T4957-2003 |
| Accuracy | ±2μm |
| Unit display | μm micron/mil exchange |
| Storage temperature | -10~60℃ |
| probe device | Built-in integrated |
| power on | Probe trigger boot |
| Automatic shutdown | 30 seconds without operation |
| backlit display | Yes. |
| MAX Maximum measurement | Yes. |
| MIN Minimum measurement | Yes. |
| Average measurement | Yes. |
| Factory reset | Yes. |
| Calibrated mode | Standard sheet calibrated, multi-point calibrated |
| Data storage | 20 pens |
| matrix recognition | automatic identification |
| Screen swirl/spin readings | 180° |
| Power Supply | 2 * 1.5VAAA battery |
| Product size | 120*50*25mm |
| Bare metal Weight | 75G (without battery) |
SMART SENSOR AR932A Galvanized layer Thickness Gauge Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
