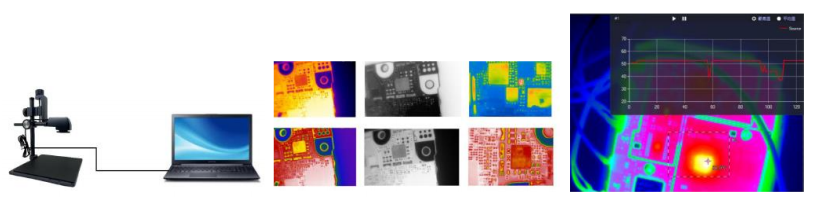

CIMA ST9660A + PCBA Circuit Board Thermal Analyzer

Introduction

The DytSpectrumOwl ST9660A+ PCBA thermal analyzer produced by our company is a special can provide a large amount of thermal experiment and thermal simulation data for PCBA product design and development stage. At the same time, It is also a special equipment for circuit board maintenance. When the production crystal fails, such as circuit leakage or short circuit circuit board, there will be abnormal temperature rise. The thermal analyzer can reflect the abnormal temperature rise. It is possible to quickly locate leakage and short-circuit devices, locate fault points, and achieve the purpose of rapid maintenance. In addition, components can also be tested, such as power modules and other devices, in applications such as testing overheating protection capabilities, a large amount of temperature measurement data can be obtained through thermal analyzers. PCBA circuit board leakage, short circuit, open circuit location and detection maintenance; mobile phone or other smart device comparison evaluation:

• Circuit board short circuit, open circuit, leakage fault maintenance

• Power consumption design of hardware circuit design

• Testing and inspection of overheating protection components

• Heat generation experiments in circuit design, thermal simulation, and verification of heat generation rationality: 1g of crystal heat dissipation capability test

• Evaluation and comparison of equipment heating conditions;

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
