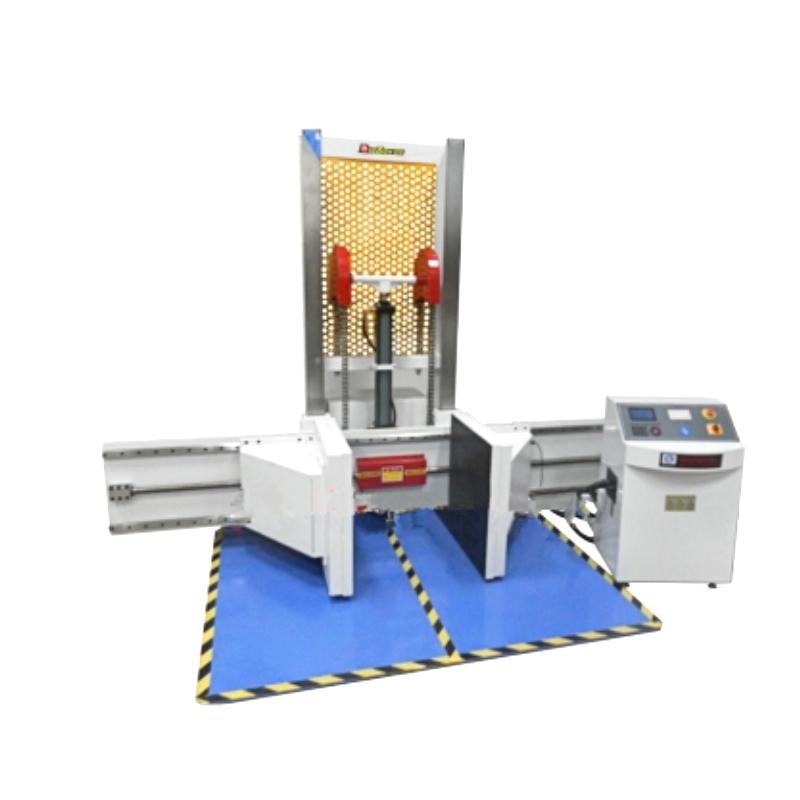

KESIONOTS Encasement Clamping Force Tester KS-OTS-P28 Clamping Force Tester

Introduction

The packaging clamping force testing machine is used to simulate the impact of the clamping force of the two splints on the package and the goods when the clamp is loading and unloading the package, and to evaluate the clamping strength of the package. It is suitable for finished products such as kitchen utensils, furniture, home appliances, toys, etc. Packaging, especially suitable for the package anti-clamping strength test required by Sears SEARS in the United States.

Structural principle

1. Bottom plate: The bottom plate adopts assembly weldments, which have high rigidity and strength, and the installation surface is processed after aging treatment; the test size of the bottom plate: length 2.0 meters × width 2.0 meters, there are warning boundaries around and in the center, and the middle line is also for testing The reference line of the test piece, the center of the test piece is relative to this line during the test, and people cannot stand on the bottom plate;

2. Transmission crossbeam: Servo motors of the left and right clamping arms in the transmission crossarm drive the screw to move inward at the same time (speed adjustable) to clamp the specimen to the set force, which is sensed by the built-in pressure sensor of the clamping arm. its cessation;

3. Servo system: When the clamping force of the two clamping arms of the transmission cross arm reaches and stops, the servo control station controls the servo to move up, stop and descend through the chain transmission cross arm. No one can be on both sides of the cross arm during the test;

4. Electrical control system;

5. The whole machine adopts PLC control to realize the effective control of the actions of each station;

6. The whole machine is equipped with a control cabinet to set the clamping force, clamping speed and lifting stop, and the manual or automatic test mode can be selected on the panel of the control cabinet. During the manual test, each action can be controlled manually. During the test, the coherent operation of each action is realized to ensure safe production and run according to the beat;

7. There is an emergency stop button on the panel of the control cabinet;

8. In order to ensure the reliable operation of the whole machine, the main components are imported brands.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
