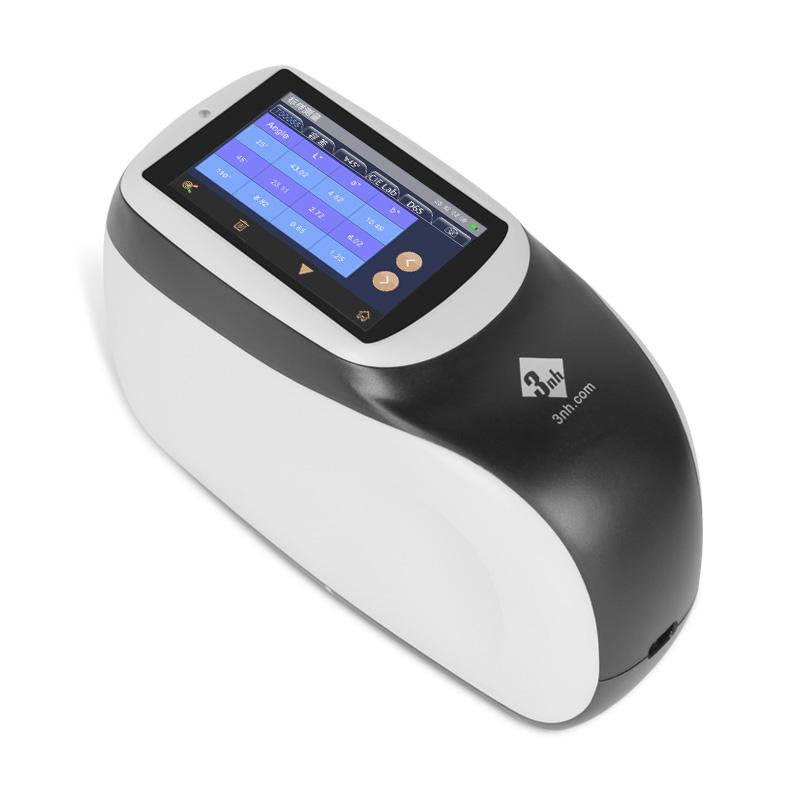

Kutai MS3003 Multi-angle Colorimeter Industrial MCU 3 Measurement angles
Industrial grade MCU, 3 Measurement angles, used to evaluate the effect of finish coating surface Appearance affected by different conditions, suitable for color, pearlescent color and other complex special effect Color.
3NH
MS3003
-
3NH TS8450 Portable Desktop Colorimeter φ 18mm Caliber
Login -
3NH DS360 portable Colorimeter φ 8mm/φ 10mm
$ 2869.00 -
3NH YS4510 Colorimeter measurement diameter φ 8mm
Login -
CHNSPEC CS-580B Computer Colorimeter 6mm
$ 2216.00 -
CHNSPEC CS-422 Liquid Colorimeter Spectrophotometer 4mm + 11mm with liquid component
$ 2325.00
3nh multi-angle Spectrophotometer Kutai MS3003 is used to evaluate the surface appearance of the effect topcoat is affected by different Viewing Angles and conditions, and can provide accurate and consistent colors for metallic colors, pearlescent colors and other complex special effect color products Measurement.
Kutai MS3003 multi-angle Spectrophotometer adopts industrial-grade MCU and is equipped with 3 measurement angles. With the support of the superior optical measurement system, the MS3003 multi-angle Spectrophotometer has excellent performance in multi-angle color difference measurement, even if it is On curved surfaces, it also has high measurement accuracy and stability.
3NH MS3003 ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement geometry | 3 Geometry (3 Light Sources, 1 Receiver) |
| Color Geometry | 45 ° receiver: 45as25 °, 45as45 °, 45as110 ° |
| lighting source | Blue Enhanced Full Light spectrum LED |
| Lighting source life | 5 years 3 million measurements |
| Spectroscopic method | Concave grating |
| Detector | 256-Pixel dual array CMOS image sensor |
| Measurement Wavelength range | 400nm-700nm |
| wavelength spacing | 10nm |
| Measuring range | 0~600% |
| Half Bandwidth | 10nm |
| Measurement caliber | F12mm |
| Color space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color difference formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Miscellaneous chromaticity indicator | Flop Index |
| Observer angle | 2°/10° |
| Observation light source | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| show | Light spectrum diagram/data, sample chromatic values, color difference values/diagram, pass/fail results, Color simulation |
| Measurement time | Single angle measurement time is about 1s, all angle measurement takes about 3s |
| Color repeability | Spectral reflectance: standard deviation within 0.08% chromatic value: 0.04ΔE * ab (after instrument preheating correction, the average value of the whiteboard is measured 30 times at intervals of 5s) |
| Color reproducibility | △ E * < 0.10, average on gray BCRA swatches △ E * < 0.25, average on color BCRA swatches |
| Inter-instrument difference | 0.2ΔE * 00 (BCRA series Ⅱ 12 color plate measurement average) |
| Effect parameters | / |
| Effect measurement | / |
| Effect, sexual repeability | / |
| Effect reproducibility | / |
| Trigger method | Pressure sensing trigger, button trigger, software trigger |
| Measurement method | Single measurement, average measurement (1~ 99 times), continuous measurement (1~ 99 times) |
| Positioning method | Color camera preview |
| size | L x W x H = 195X83X128mm |
| Weight | About 1Kg |
| Battery level | Lithium battery, 3.7V, 3200mAh, can be continuously tested 6000 times within 8 hours of being fully charged |
| Display | TFT true color 3.5inch, capacitive touch screen |
| interface | USB |
| Store data | 1000 master standards, 4000 samples. |
| language | Chinese (Simplified, Traditional) English |
| Operating temperature range | 10 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing |
| Storage temperature range | -20 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing |
| Calibrate | Built-in whiteboard parameters, external whiteboard, black light trap |
| Calibrated interval | 4 hours, 8 hours, 24 hours, boot correction |
| Standard accessories | Power adapter, data cable, manual, quality management software (official website download), correction box, black light trap, protective cover, wristband |
| Optional accessories | Micro printer |
| Standards | ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 |
3NH MS3003 Colorimeter Packing list
Host X1, power adapter X1, data cable X1, manual X1, quality management software (official website download) X1, correction box X1, black light trap X1, protective cover X1, wristband X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
