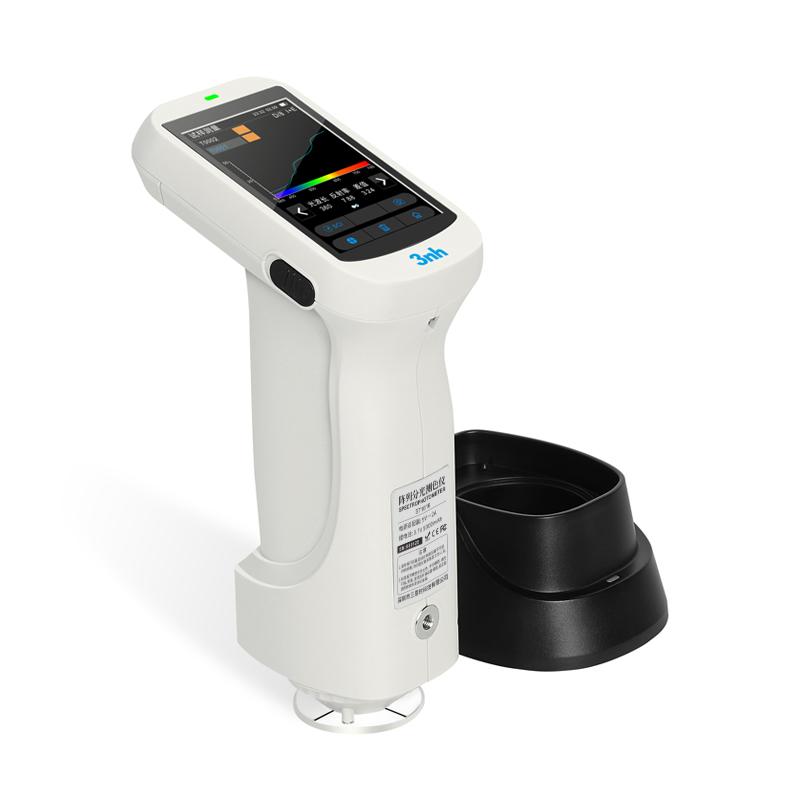

3NH ST1818 Array Colorimeter
Equipped with φ 8mm/φ 10mm platform + φ 8mm/φ 10mm tip two measurement diameters, sexual repeability Delta E * ab is less than 0.038, customizable light source, with SQCX Color quality management software.
3NH
ST1818
-
CHNSPEC CS-810 Colorimeter Color measurement for Glass liquids Platinum cobalt, Gardner chroma
$ 5170.00 -
IWAVE SA26 Colorimeter φ 8mm/φ 4mm Dual Caliber, Professional Edition
$ 4703.00 -
EVERFINE PSC-40H Portable Colorimeter Repeatability < 0.02
$ 5791.00 -
3NH YS4560 Colorimeter
Login -
CHNSPEC ColorSpec CS-500 Portable Colorimeter metrology authentication
$ 2247.00
product description
ST1818 is an array Spectrophotometer developed by 3nh using its own spectrometric core technology. It uses a built-in large-area silicon photodiode array (dual rows of 18 groups) sensor. It has excellent repeatability and inter-stage differences, and the measurement data is continuously stable, accurate and reliable. . The repeatability ÎE*ab of the array Spectrophotometer ST1818 is easily controlled within 0.038, and the inter-stage difference ÎE*ab is controlled within 0.38. The measurement is accurate and can be used for accurate color analysis and transmission in the laboratory.
The ST1818 array Spectrophotometer is equipped with two measuring apertures: Φ8mm/Φ10mm platform + Φ8mm/Φ10mm tip. Whether the sample surface is regular, flat or curved, it can easily measure and obtain reliable and repeatable data. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printed paper products, automobile, medical, cosmetics and food industries, scientific research institutions and laboratories.
3NH ST1818 Array ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | D/8 (diffuse illumination, 8 ° direction reception) |
| Measurement structure | SCI includes specular reflection |
| Meet the standard | CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Measurement repeability | ΔE*ab≤0.038 |
| stand-alone difference | ΔE*ab≤0.38 |
| Display Accuracy | 0.01 |
| Measurement/Lighting Aperture *** | Two caliber: φ 8mm/φ 10mm platform + φ 8mm/φ 10mm pointed nozzle |
| Measurement index | Light spectrum reflectance, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00), |
| Light source conditions | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50 |
| display mode | Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias |
| lighting source | Light spectrum LED light source |
| Measurement and positioning method | Stabilizer, visual |
| Calibrating method | Intelligent auto calibration (contact) |
| Accuracy | First Class Measurement Pass |
| Viewing Angle | CIE 2°/10° |
| Integrating sphere size | Φ40mm |
| spectroscopy | Plane grating spectroscopy |
| Sensor | Large Area Silicon Photodiode Array (Dual Row 18 Group) |
| wavelength interval | 10nm |
| Wavelength range | 400~700mm |
| Reflectance Measurement Range | 0~200% |
| Reflectance resolution | 0.01% |
| measurement mode | Single measurement, average measurement (2~ 99 times) |
| Measurement time | About 1 second |
| Dimensions | 114*70*208mm |
| Weight | Approximately 435g (excluding calibration seat) |
| battery life | Lithium battery, 3.7V, 5000mAh, 8500 cycles in 8 hours |
| Lifetime of lighting source | More than 1.50 million measurements in 10 years |
| Display | TFT true color 3.5inch, capacitive touch screen |
| interface | USB |
| data storage | 500 master standards, 10,000 samples; PC Mass storage |
| Software Support | Windows |
| operating language | Simplified Chinese, English, Traditional Chinese |
| Operating environment | 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m |
| Storage environment | -20~50 ℃, 0~85% RH (no condensation) |
| standard attachment | Power adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber |
| optional accessories | Micro printer, powder test box |
| Measurement index 2 | Whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) |
| Measurement index 3 | Blackness (My, dM), colour fastness, color fastness to change, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Isochromatic Index Milm, Munsell, hiding power, force (dyestuff strength, tinctorial strength) |
| Light source condition 2 | LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-B6, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-V3, customizable light source |
3NH ST1818 Array Colorimeter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
