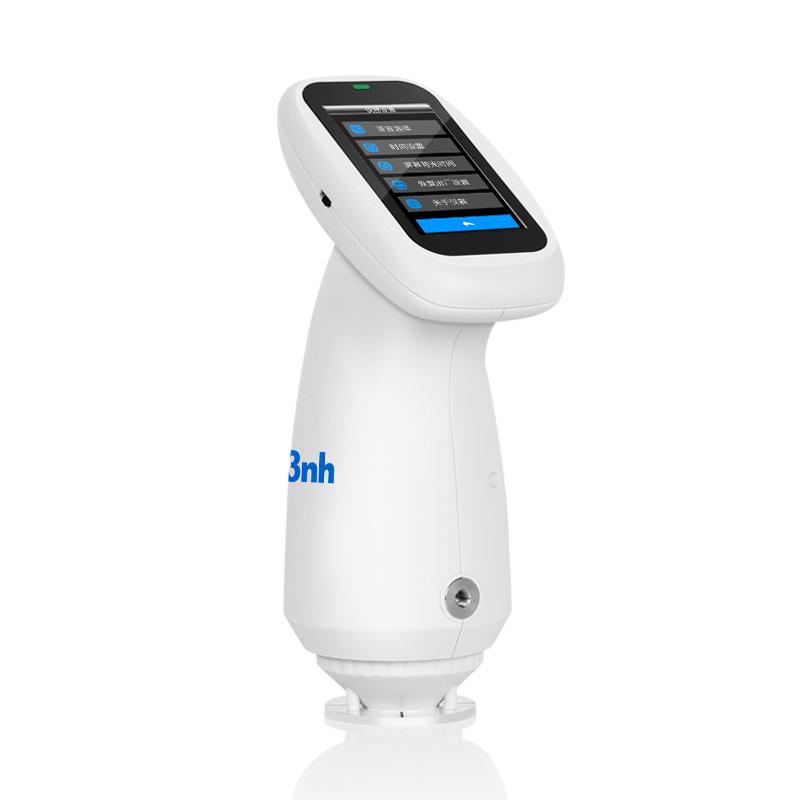

3NH PS2070 handheld Colorimeter φ 4mm/φ 8mm flat tip four calibers

Introduction

"Fat girl" is the nickname of the PS series of domestic (CN) Spectrophotometer , and the color measurement of "fat girl" is serious and the user satisfaction is high.

PS2070 "Fat Girl" Spectrophotometer is developed by 3nh using CMOS dual-channel Spectrophotometer , which is not only a Spectrophotometer , but also a Spectrophotometer , with excellent repeatability and inter-table difference, continuous and stable measurement data, accurate and reliable, with a comfortable and rounded appearance is more lovely, with quality management software support Andriod, IOS, Windows, HarmonyOS system, WeChat applet, color matching cloud, etc., convenient for quality monitoring and data management.

PS2070 Spectrophotometer is equipped with four measuring apertures: Φ8mm (platform + needle nozzle) and Φ4mm (platform + needle nose), which has a wider adaptability and is used for color difference quality control in various industries such as plastics and electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, etc., including UV for the measurement of fluorescent samples.

Technological advantages

1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology

The PS2070 Spectrophotometer adopts the internationally applicable D/8 illumination observation conditions and SCI/SCE (including specular reflection/without specular reflection) synthesis technology, which is suitable for color matching in various industries and color management and quality control in coatings, textiles, plastics, food, building materials, cosmetics and other industries.

2. Adopt full-band balanced LED light source + UV light source

The 400~700nm full-band balanced LED light source and UV light source are used as the instrument lighting light source, which has sufficient spectral distribution in the visible light range, which avoids the spectral loss of white LED in a specific band, and the fluorescent material can also be easily measured, ensuring the accuracy of the instrument measurement results.

3. CMOS dual-channel beam splitting sensor

 The high-speed, high-sensitivity CMOS dual-channel beamsplitter sensor makes color data processing more efficient and accurate

4. Non-contact automatic whiteboard verification

The Spectrophotometer PS2070 is equipped with an intelligent calibration base for non-contact automatic whiteboard verification, and the professional-grade standard whiteboard reflectivity R% ≥95%, good surface uniformity, high stability, and repeatable and accurate data can be obtained.

5. A variety of color measurement space, a variety of observation light sources

The Spectrophotometer PS2070 is available in CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99 color spaces, as well as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65 observation light sources, can meet the special measurement needs under different measurement conditions.

6. Ergonomic design and easy-to-measure device

Spectrophotometer PS2070 has a beautiful, smooth shape and comfortable grip, in line with the structural design of human body mechanics, fit the palm of the hand for continuous detection work, so that you can use it quickly and easily, add an easy-to-measure device for automatic measurement, portable and fast, easy to measure and use.

7、Cloud storage, portable massive color database

APP and applet synchronize massive storage, which can quickly search, analyze and compare color data. Use apps and applets to build your private color database in the cloud, and you don't need to carry a heavy Color Chart, you can share it with partners anytime and anywhere.

8. Metrological verification report

Each Spectrophotometer PS2070 has been verified and tested, and each instrument is verified according to the measurement standards of the credible verification department after leaving the factory, and the measurement data can be traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.

9. The camera is positioned by framing and positioning, and the measured area can be clearly observed

Built-in camera framing positioning, through the real-time framing of the camera, can accurately judge whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

10. Color management software

The quality management software supports Andriod, IOS, Windows, HarmonyOS system, WeChat applet, color matching cloud, etc., and is suitable for quality monitoring and color data management in various industries. Digitize the user's color management, compare the color difference, generate a test report, provide a variety of color space measurement data, and customize the customer's color management work.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
