3NH PS2080 high-precision Colorimeter with six calibers

Introduction

"Fat girl" is the nickname of the PS series of domestic (CN) Spectrophotometer , and the color measurement of "fat girl" is serious and the user satisfaction is high.

PS2080 "Fat Girl" Spectrophotometer is developed by 3nh using CMOS dual-channel Spectrophotometer , which is not only a Spectrophotometer , but also a Spectrophotometer , with excellent repeatability and inter-table difference, the measurement data is continuously stable, accurate and reliable, with a comfortable and rounded appearance is more lovely, with quality management software support Andriod, IOS, Windows, HarmonyOS system, WeChat applet, color cloud, etc., convenient for quality monitoring and data management.

PS2080 Spectrophotometer is equipped with six measuring apertures: Φ8mm (platform + sharp nozzle), Φ4mm (platform + sharp nozzle), and 1x3mm (platform + sharp nozzle), which has a wider adaptability and is used for color difference quality control in various industries such as plastics and electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, etc., including UV for the measurement of fluorescent samples.

Technological advantages

1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology

The PS2080 Spectrophotometer adopts the D/8 illumination observation conditions and SCI/SCE (including specular reflection/excluding specular reflection) synthesis technology, which is suitable for color matching and color management and quality control in various industries such as coatings, textiles, plastics, food, building materials, cosmetics and other industries.

2. Adopt full-band balanced LED light source + UV light source

The 400~700nm full-band balanced LED light source and UV light source are used as the instrument lighting light source, which has sufficient spectral distribution in the visible light range, which avoids the spectral loss of white LED in a specific band, and the fluorescent material can also be easily measured, ensuring the accuracy of the instrument measurement results.

3. CMOS dual-channel beam splitting sensor

 The high-speed, high-sensitivity CMOS dual-channel beamsplitter sensor makes color data processing more efficient and accurate

4. Non-contact automatic whiteboard verification

The Spectrophotometer PS2080 is equipped with an intelligent calibration base, which can carry out non-contact automatic whiteboard calibration, and the professional-grade standard whiteboard reflectance R% ≥95%, good surface uniformity, high stability, and can obtain repeatable and accurate data.

5. A variety of color measurement space, a variety of observation light sources

The Spectrophotometer PS2080 is available in CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99 color spaces, as well as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65 observation light sources, can meet the special measurement needs under different measurement conditions.

6. Ergonomic design and easy-to-measure device

The Spectrophotometer PS2080 has a beautiful, smooth shape and comfortable grip, conforms to the structural design of human body mechanics, fits the palm of the hand and is suitable for continuous detection work, so that you can use it quickly and easily.

7、Cloud storage, portable massive color database

APP and applet synchronize massive storage, which can quickly search, analyze and compare color data. Use apps and applets to build your private color database in the cloud, and you don't need to carry a heavy Color Chart, you can share it with partners anytime and anywhere.

8. Metrological verification report

Each Spectrophotometer PS2080 has been verified and tested, and each instrument is verified according to the measurement standards of the credible verification department after leaving the factory, and the measurement data is traced back to the National Institute of Metrology to ensure the credibility of the instrument test data.

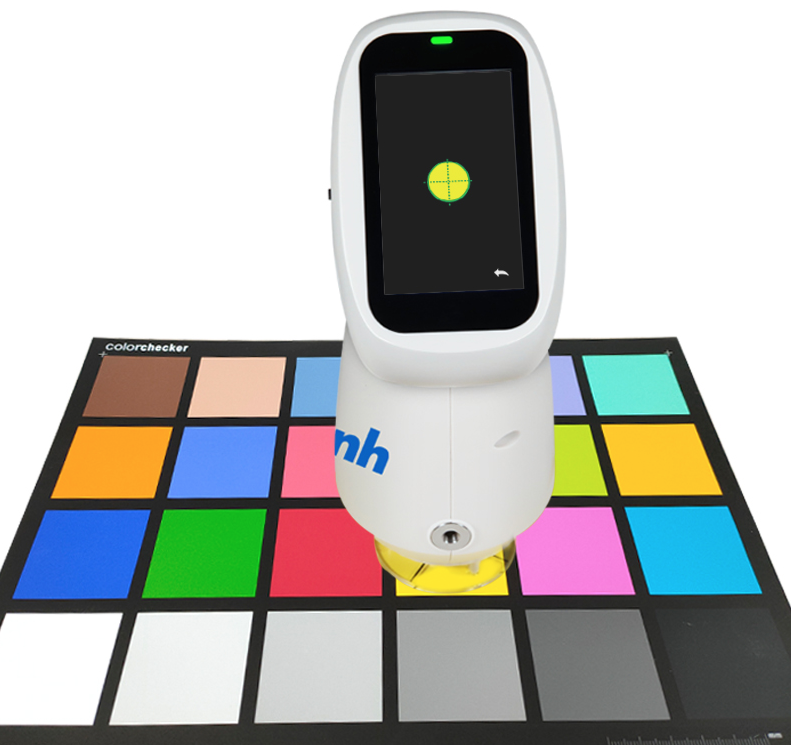

9. The camera is positioned by framing and positioning, and the measured area can be clearly observed

Built-in camera framing positioning, through the real-time framing of the camera, can accurately judge whether the measured part of the object is the center of the target, which improves the measurement efficiency and accuracy.

10. Color management software

The quality management software supports Andriod, IOS, Windows, HarmonyOS system, WeChat applet, color matching cloud, etc., and is suitable for quality monitoring and color data management in various industries. Digitize the user's color management, compare the color difference, generate a test report, provide a variety of color space measurement data, and customize the customer's color management work.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
