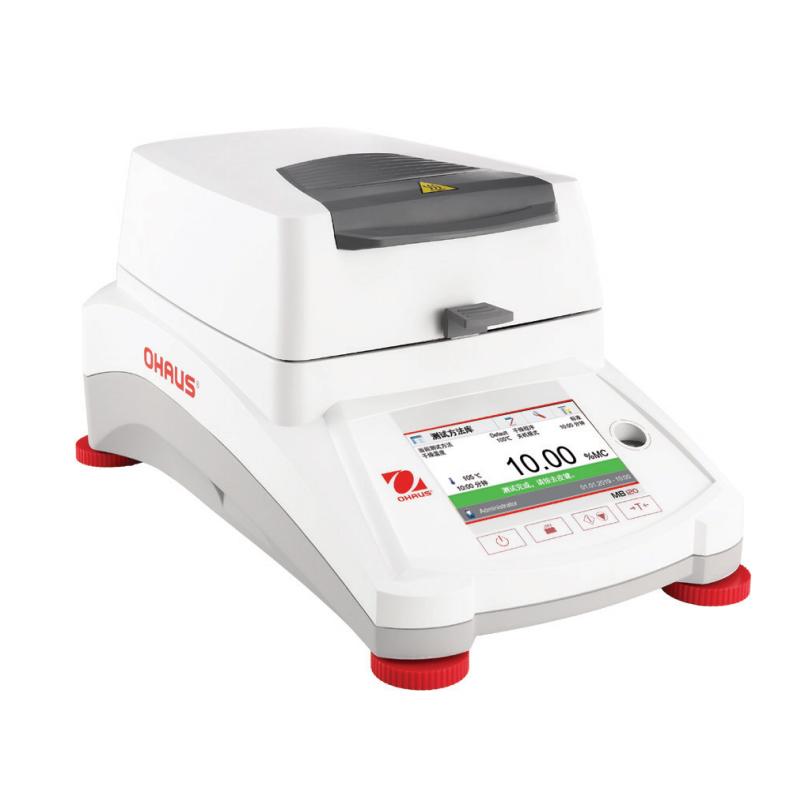

OHAUS MB120 halogen heating Moisture Analyzer 120g/40-230 ℃

Extraordinary performance and intelligent operation

Moisture testing has never been easier and more effective. As the flagship product of Ohaus, the MB120 rapid Moisture Meter is equipped with intelligent method development functions to quickly process routine and complex tests on various samples and synchronize with oven data.

Features

● No experience required, the heating method can be automatically determined using SmartGuideTM

 MB120 eliminates trial and error with heating parameters and intelligently develops and creates test methods with SmartGuide™ available and oven methods

Very similar test results. Greatly improves work efficiency and requires no operating experience.

● The precision and speed of halogen heating improves laboratory efficiency

 Excellent heating methods, such as 4 drying modes, customizable shut-off standards, and heating temperatures up to 230°C, can create more

Optimized test methods to increase accuracy and reduce test time.

● Excellent functions for professional moisture analysis

 The MB120 offers numerous additional features, such as internal memory for storing up to 100 methods and 1000 measurement results, and

USB flash drive export to Excel, 4-level user management system helps provide flexible security permission management, etc.

Excellent features

MB120 quickly responds to various test samples

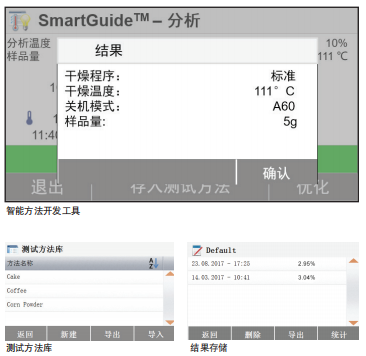

• SmartGuide™

The newly upgraded SmartGuide™ can quickly provide methods with better testing temperatures , greatly improving method development efficiency for sample testing.

• A library of 100 test methods to make testing easier

100 test methods can be quickly created and stored to meet the needs of testing different samples .

• Can store 1000 test results for quality control . Statistical analysis data can be easily queried and saved.

• Level 4 user management system

The set test temperature is locked, and the management permissions of corresponding level to protect data security.

Testing is simple and fast

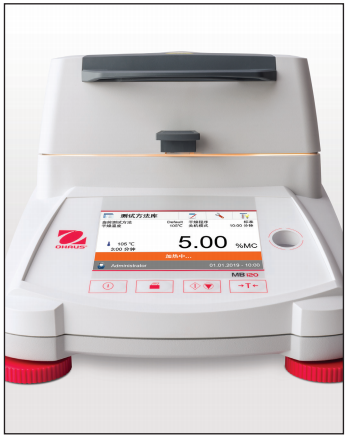

MB series Moisture Meter integrates many advantages into one, with large color

Touch screen and intuitive navigation menu, moisture testing is fast and the results are more accurate.

• Extra large touch screen

Easy to understand and operate.

• Representational navigation menu

No training required to operate.

• 4 commonly used buttons can withstand high-frequency daily operations

It can operate tare, start or stop testing, print, and turn on and off the machine.

• Standard RS232 and USB interface

Can be easily connected to a computer or USB flash drive.

• Moisture testing is simple and fast

It only takes 3 steps to complete the test of common samples:

 1. Remove the tare weight from the sample pan;

 2. Add appropriate amount of sample;

 3. Click Start and wait for the test results.

Test results are accurate

MB120/MB90 easily handles various tests with accurate results

• Rapid heating halogen heating technology

Halogen heating can dry the sample in a few seconds, which is 40% faster than traditional infrared heating.

• Uniform heating effect makes test results more accurate and repeatable

The new heating chamber design ensures uniform heating and more reliable results with a readability of 0.01%.

•Wide test temperature range and can be flexibly adjusted

The test temperature range is wider, MB90 temperature range is 40-200˚C, MB120 temperature range is 40-230˚C, and the temperature can be adjusted in 1˚C increments.

• 4 heating modes for more accurate results

Users can select the heating mode according to the sample type and start testing in one step by setting the heating temperature and time.

Rapid heating mode: quickly heats up and then drops to the set temperature.

Standard heating mode: avoid overheating during heating process.

Gentle heating mode: Temperature increases slowly over time (MB120 only).

Step heating mode: Different heating temperatures (MB120 only).

• Multiple shutdown modes to choose from

The user can customize the shutdown mode, and it will automatically shut down when the sample moisture is no longer lost. MB120 Moisture Meter has up to 7 shutdown modes to choose from, manual , timed, automatic (weight loss percentage/second), automatic (weight loss/second), A30, A60, A90, MB90 Moisture Meter comes with manual, timed, and automatic 3 shutdown mode.

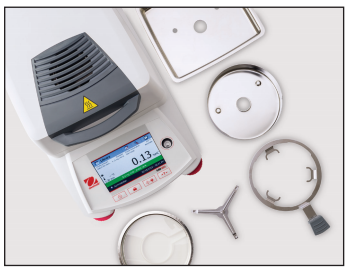

Easy to clean design

The sample pan holder and removable components make the MB120/MB90 Moisture Meter easy to maintain.

• Stainless steel tray design

Easy to clean.

• Removable heating chamber assembly

Glass plates and trays are easily removed without tools.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
