LinShang LS252DC Leeb Hardness TesterOverview
Specifications
Comments
FAQs

LS252DC

Leeb Hardness Tester

DC type impact device, using dual coil technology, more accurate measurement, probe built-in direction Sensors, full angle measurement without error, ten measurement materials can be switched

Introduction

LS252DC is an integrated Hardness Tester with compact structure. The instrument detects the hardness according to the principle of Leeb hardness measurement, and can measure the hardness of various metal materials. The instrument adopts excellent dual-coil technology, which has good repeatability and measurement accuracy. The probe has a built-in direction sensor, which automatically compensates the measurement error of different impact directions. The system has a variety of built-in hardness scales, including Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), Rockwell (HRA), Rockwell (HRB), Rockwell (HRC) Convert between each other to avoid tedious manual calculations. The instrument adopts DC impact device, which is suitable for measurement in inner hole or cylinder.

Application

LS252DC Leeb Hardness Tester is suitable for metal materials such as steel, cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, pure copper and forged steel. The instrument can be widely used It is used for hardness testing of materials such as machine tool guide rails, automobile chassis, heavy workpieces, mold cavities, bearings, pressure vessels, and installed machinery or assembly parts. It can help manufacturers conduct product quality inspection, reasonable process and product quality analysis.

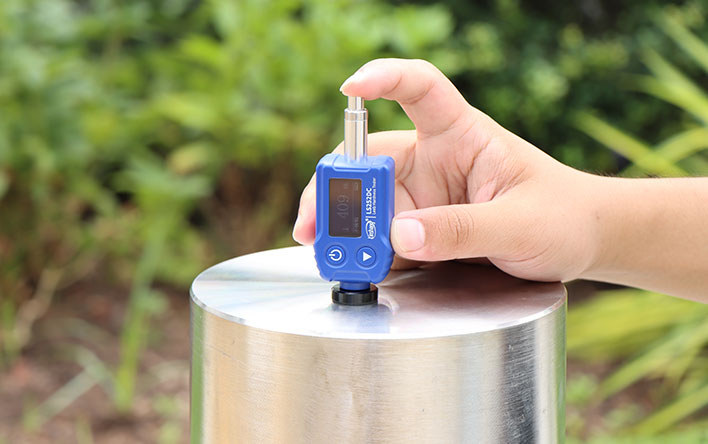

Linshang LS252DC Leeb Hardness Tester Details Figure 1

Linshang LS252DC Leeb Hardness Tester Details Figure 2

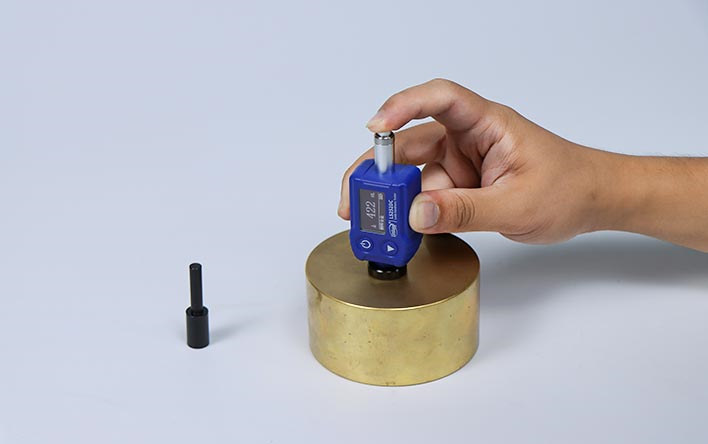

Linshang LS252DC Leeb Hardness Tester Details Figure 3

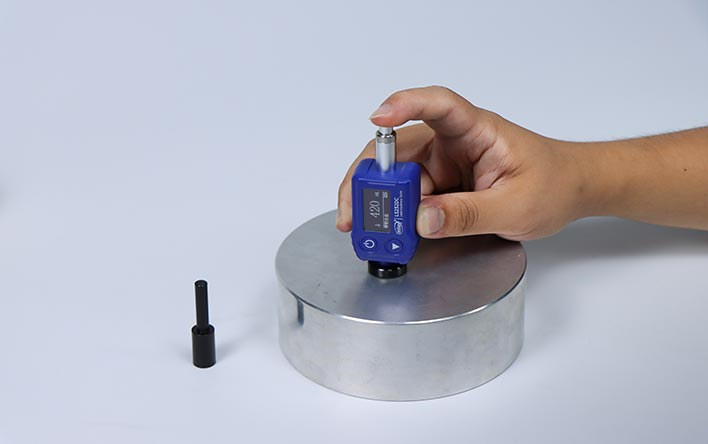

Linshang LS252DC Leeb Hardness Tester Details Figure 4

Standards

GB/T 13794.1 Leeb Hardness Test Part 1: Test Method

GB/T 13794.2 Leeb Hardness Test Part 2: Calibration and Calibration of Hardness Testers

GB/T 13794.4 Leeb Hardness Test Part 4: Hardness Value Conversion Table

JB/T 9378-2001 Leeb Hardness Tester industry standard

JJG 747-1999 Verification Regulations for Leeb Hardness Tester

LinShang LS252DC Leeb Hardness TesterSpecifications

LIST	VALUE
Impact device	DC type impact device
Hardness system	HL、HV、HB、HS、HRA、HRB、HRC
Measuring range	HLD (170-960); HV (83-976); HB (30-651); HRC (17.6-68.5); HS (26.4-99.5); HRB (13.5-100); HRA (60-85.8)
resolution	1HL
Measurement Accuracy	± 12 HL, ± 6HL typical
Sexual repeability	6HL
Display	128 * 64 dot matrix OLED
Power Supply	Rechargeable lithium battery 3.7V@250mAh, a single charge can be continuously measured more than 5000 times
Charging port	USB(Type-C)
size	883424 mm
Weight	About 48g
Operation temperature range	-10~50 ℃, 0~85% RH (no condensation)
Storage temperature range	-10~60 ℃, 0~85% RH (no condensation)

LinShang LS252DC Leeb Hardness Tester Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
