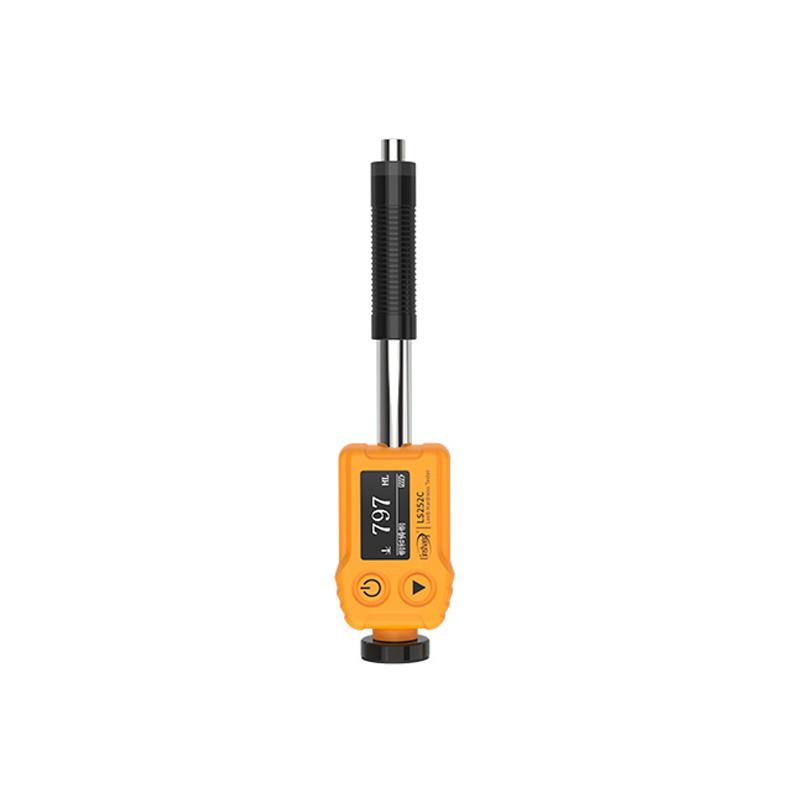

Linshang LS252C Light and thin metal parts Leeb Hardness Tester

Hardness Twin Coil technology for testing surface hardening and parts with small mass or Film thickness, providing good measurement accuracy and repeatability. The probe has built-in Direction Sensors for full angle measurement

Brand

SKU: NB041949

LinShang

Model

LS252C

Price

$ 173.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

LinShang shopSE

Information

Datasheet RFQ Contract Video

What else did others buy

PRLH320 Leeb Hardness Tester

$ 381.00
DUBAN DB22-HM450 Leeb Hardness Tester

$ 449.00
Leeb Hardness Tester DHT-400Dplus

$ 1924.00
Leeb Hardness Tester DHT-400D Deguang Electronics

$ 1551.00
LS252DL gear Leeb Hardness Tester DL type impact device

$ 413.00

Genuinegoods

LinShang LS252C Leeb Hardness TesterOverview
Specifications
Comments
FAQs

LS252C

Leeb Hardness Tester

Introduction

LS252C is an integrated Hardness Tester with small size, which can measure the hardness of various metal materials. C-type impact device is adopted, with small impact force, suitable for testing the hardness of surface hardened layer and parts with small mass or thin thickness. The instrument adopts excellent dual-coil technology, which has good repeatability and measurement accuracy. The probe has a built-in direction sensor, which automatically compensates the measurement error of different impact directions. The system has a variety of built-in hardness scales, which can be converted between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), and Rockwell (HRC), avoiding tedious manual calculations.

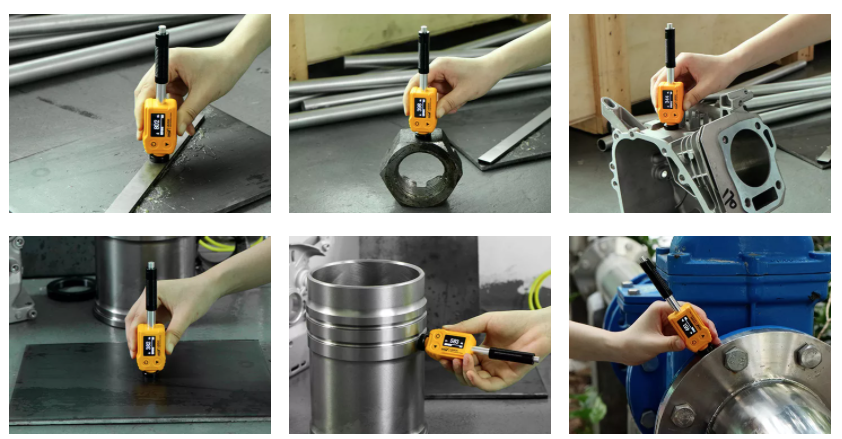

Application

The instrument adopts C impact device, built-in a variety of metal materials to choose from, and has a wide range of applications.

Standards

GB/T 13794.1 Leeb Hardness Test Part 1: Test Method

GB/T 13794.2 Leeb Hardness Test Part 2: Calibration and Calibration of Hardness Testers

GB/T 13794.4 Leeb Hardness Test Part 4: Hardness Value Conversion Table

JB/T 9378-2001 Leeb Hardness Tester industry standard

JJG 747-1999 Verification Regulations for Leeb Hardness Tester

LinShang LS252C Leeb Hardness TesterSpecifications

LIST	VALUE
Impact device	Type C
Hardness system	HL、HV、HB、HS、HRC
Measuring range	HLC(170-960);HV(80-996);HB(80-683);HRC(20-69.5); HS(31.9-102.3)
resolution	1HL
Measurement Accuracy	± 12 HL, ± 6HL typical
Sexual repeability	6HL
Display	128 * 64 dot matrix OLED
Power Supply	Rechargeable lithium battery 3.7V@250mAh, a single charge can be continuously measured more than 5000 times
Charging port	USB(Type-C)
size	1403424 mm
Weight	About 66g
Operation temperature range	-10~50 ℃, 0~85% RH (no condensation)
Storage temperature range	-10~60 ℃, 0~85% RH (no condensation)

LinShang LS252C Leeb Hardness Tester Packing list

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
