KEXIN QGZ - 6-12-24 drying performance Tester for determining drying time of paint film and putty film

The number of strokes is 4, the size of the strokes is R 0.25/0 5/1.0/1.5mm, the track period is 6/12/24h, the sample size is 200 * 200 * (0.2~ 3) mm, and the track period is 6/12/24h/T.

Brand

SKU: NB000420

KeXin

Model

QGZ-6-12-24

Price

$ 203.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

KeXin shopSE

Information

Datasheet RFQ Contract

What else did others buy

TQC sheen AB3600 Drying Time Recorder BK method, six-track -20 ℃ to 70 ℃ test

$ 4189.00
KEXIN BZT Non-stick Tire Time Tester

$ 201.00
PUSHEN GZY-I Linear Drying Time Recorder

$ 724.00
CHINA QGZ-A Linear Paint Film Drying Time Recorder

$ 444.00
MODERNER GZY-III Drying Time Recorder Linear Drying Time Recorder

Login

Genuinegoods

KeXin QGZ-6-12-24 Drying performance TesterOverview
Specifications
Comments
FAQs

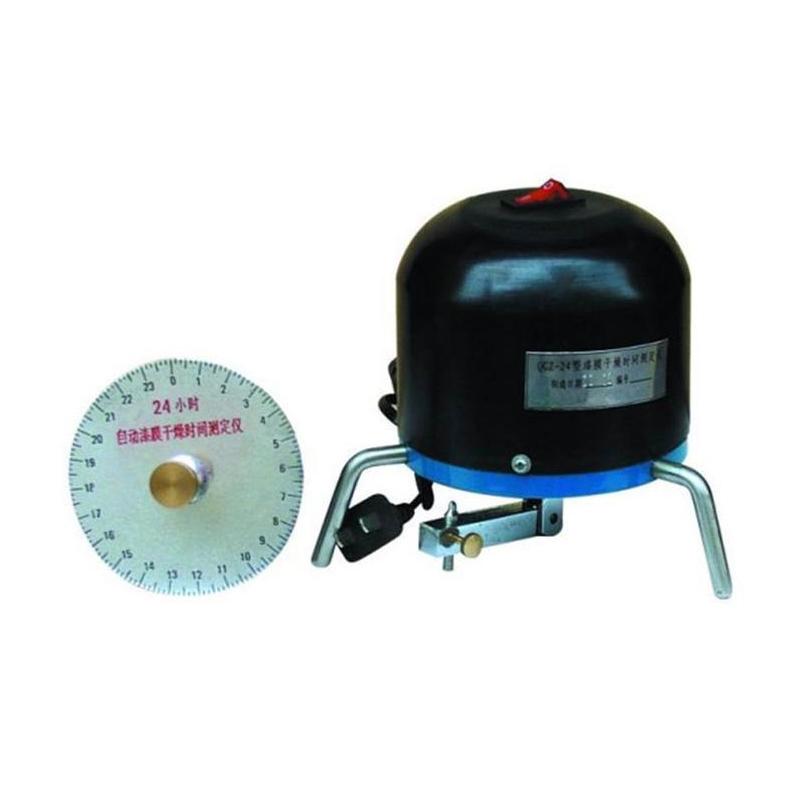

QGZ-6-12-24

Drying performance Tester

The number of strokes is 4, the size of the strokes is R 0.25/0 5/1.0/1.5mm, the track period is 6/12/24h, the sample size is 200 * 200 * (0.2~ 3) mm, and the track period is 6/12/24h/T.

The paint is in the form of a liquid and has a certain viscosity. After being painted on the surface of the utensils by different decoration methods such as brushing, spraying, pouring, and rolling, some of them are in the normal temperature of the atmosphere, and some are in a heated state. A chemical and physical change process, called the drying process of the coating. The drying time meter is mainly used to measure the time required for this process. It will play a very important role in improving the production efficiency of the coating process.

product description

The various stages of coating drying and curing are easy to detect, but defining them in terms of chemical and mechanical principles is not so simple. In order to get a satisfactory evaluation, it is necessary to use instruments to measure under controlled conditions, and the drying time Tester was conceived.

Specifications

model	QGZ-6-12-24
Needle radius	0.25/0.5/1.0/1.5mm
track period	6, 2, 24h/T
Sample size	200×200×(0.2-3)mm
use	Determination of drying time of paint film and putty film

KeXin QGZ-6-12-24 Drying performance TesterSpecifications

LIST	VALUE
Number of strokes	4 stitches
Scribing needle specification	R 0.25/0.5/1.0/1.5mm
Specimen size	200200(0.2~3)mm
trajectory period	6/12/24h/T

KeXin QGZ-6-12-24 Drying performance Tester Packing list

Drying performance tester x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Find a drying performance tester for GB/T1728

[A]

This QGZ-6-12-24 drying performance tester is.

[Q]

How is the QGZ-6-12-24 drying performance tester used?

[A]

Hello, 1) Make a sample according to the requirements of GB1727; 2) Select the scribe needle according to the drying characteristics of the film (choose the fine scribe needle for quick-drying paint); 3) Use your finger to pull the rotating arm counterclockwise (looking down) to eliminate the mechanical gap, and then place the tester on the test board; 4) Make a mark on the contact part between the test board and the scribe needle, turn on the power supply, press the switch, the indicator light is on at the same time, the motor runs, and the test starts; 5) Make a mark on the contact part between the test board and the scribe needle, turn on the power supply, press the switch, the indicator light is on at the same time, the motor runs, and the test starts; 6) At the end of the test, turn off the power supply, remove the test board, and place the time dial concentrically on the test board, and align the 0 points on the The starting point of the test on the film surface is judged according to the different states of the film surface. The time used in each stage of the whole drying process can be judged.

[Q]

Can putty film use this QFZ drying tester?

[A]

Hello, it's OK.
