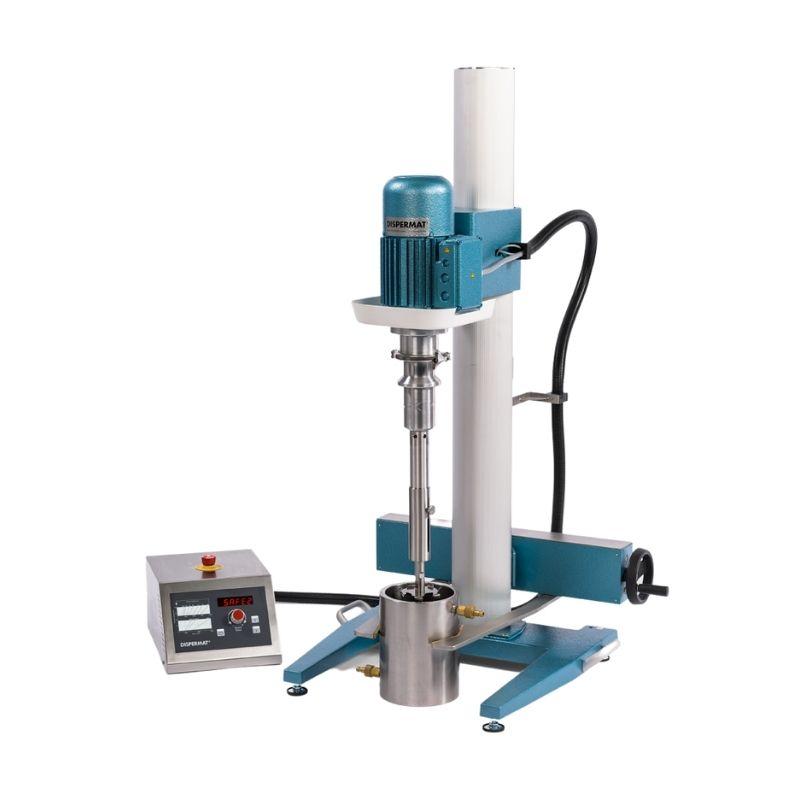

VMA DISPERMAT LC110-12 Small Lab Disperser

Introduction

VMA is a well-known brand in the world of dispersion, synonymous with innovation and high-quality homogenizers. Since its establishment, it has been focusing on the research of dispersion technology for coatings, paints, inks and other materials and the development and manufacturing of high-speed homogenizers. The homogenizer products it produces are particularly suitable for trial production and laboratory research, and have been used as standard dispersion equipment by domestic (CN) and foreign multinational companies.

The LC series electronic lifting disperser is suitable for the production and dispersion of small quantities in laboratories and large and medium-volume products in factories. Various models correspond to a variety of powers: from 0.3kW to 4kW, dispersion speeds from 6000rpm to 20000rpm, and torques from 0.4Nm to of 13.7Nm, and the output can be from 50ml to 70L.

The VMA LC110-12 small laboratory disperser is a product series that takes high economy into consideration, retaining only the core functions of dispersion. LC110-12 small laboratory dispersing machine has a high-speed dispersing speed of 0-12000rpm and a dispersing power of 1.1KW, which can support the dispersion of 0.25-10L samples.

All LC series high-speed dispersers have independent speed control and display: pulse-type stepless speed regulation, digital display, time preset and display functions highlight the humanized design concept; LC series all use novel motors to ensure smooth operation. Reliable and effective; except for the LC30 model, all other models can be equipped with safety devices to ensure high-power and high-speed dispersion while effectively protecting the operator's personal life.

Features

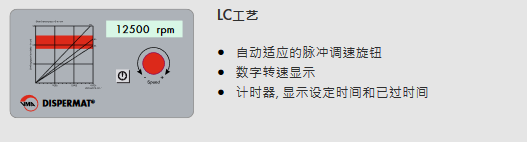

Convenient and easy-to-use control panel

The VMA LC110-12 small laboratory dispersion machine uses a stainless steel control module and a plastic control panel. The dispersion speed can be conveniently adjusted through the pulse speed adjustment knob on the control panel. There is also a digital timer on the control panel for intuitive display. Preset scatter time and elapsed scatter time.

Sturdy, durable stand

The VMA LC110-12 small laboratory disperser uses a specially designed cantilever bracket. The BK2 cantilever bracket has a trustworthy functional design. Models starting from the VMA LC110-12 small laboratory disperser have the function of electric height adjustment. , can easily adjust the height of the dispersing plate during dispersion.

Highly economical

VMA LC110-12 small laboratory dispersing machine is an entry-level dispersing machine that takes economy into consideration. The instrument itself only retains the core functions of dispersion and only meets the core needs of customers. Allows laboratories to conduct research and development at lower costs.

Modular design pattern

VMA LC110-12 small laboratory disperser adopts a modular design mode and provides a variety of different grinding and dispersing systems to choose from, which can be used as a sealed disperser, basket sand mill, emulsifying disperser, and vacuum disperser use.

Optional

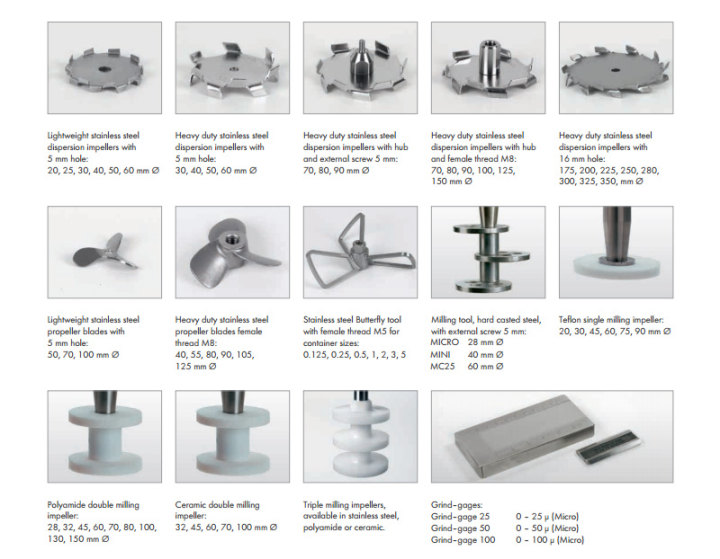

The VMA dispermat dispersing machine imported from Germany has many different types of dispersing discs:

Light stainless steel dispersion disc, heavy stainless steel dispersion disc, heavy stainless steel dispersion disc with wheel shaft and external thread, heavy stainless steel dispersion disc belt, light stainless steel blade pulp, heavy stainless steel blade propeller, concave M8 screw stainless steel butterfly stirring tool with concave M5 Screw mouth, suitable for cup grinding tools of the following sizes, hard cast steel with 5mm external thread, polytetrafluoroethylene single grinding disc, polyamide double-layer grinding disc, ceramic double-layer grinding disc, three-layer grinding disc, stainless steel available , polyamide or ceramic.

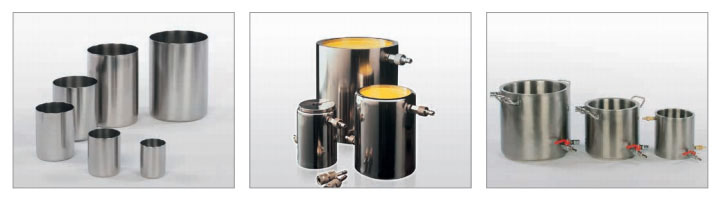

Single and double wall single and double wall dispersion containers:

Stainless steel single-wall dispersion cup, stainless steel double-wall dispersion cup, stainless steel double-wall dispersion cup with drain valve

Product parameters

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
