Hikmicrotech HM-TPH10-3AUF Handheld Thermometer
Support center point, highest temperature, lowest temperature measurement, temperature measurement range -20 ℃~ 350 ℃, support timing temperature difference shutter correction.
HIKMICRO
HM-TPH10-3ON
-
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00
Features
Thermal imaging image:
Native resolution 160 × 120, high sensitivity vanadium oxide uncooled Detector
Support timing temperature difference shutter correction
Support 3D noise reduction function, image detail enhancement function
Support 4 kinds of false color adjustable
Abnormal temperature alarm function:
Support central point, highest temperature, lowest temperature temperature measurement
Temperature range: -20 °C~350 °C
Temperature measurement accuracy: ±2 °C (or 2% of range), whichever is the maximum

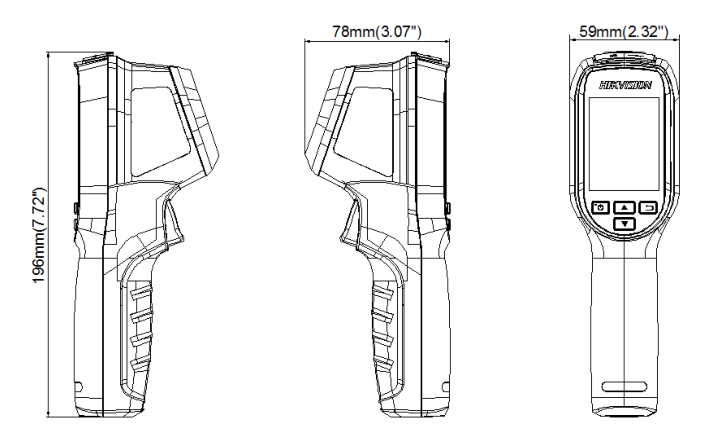

Product Dimensions

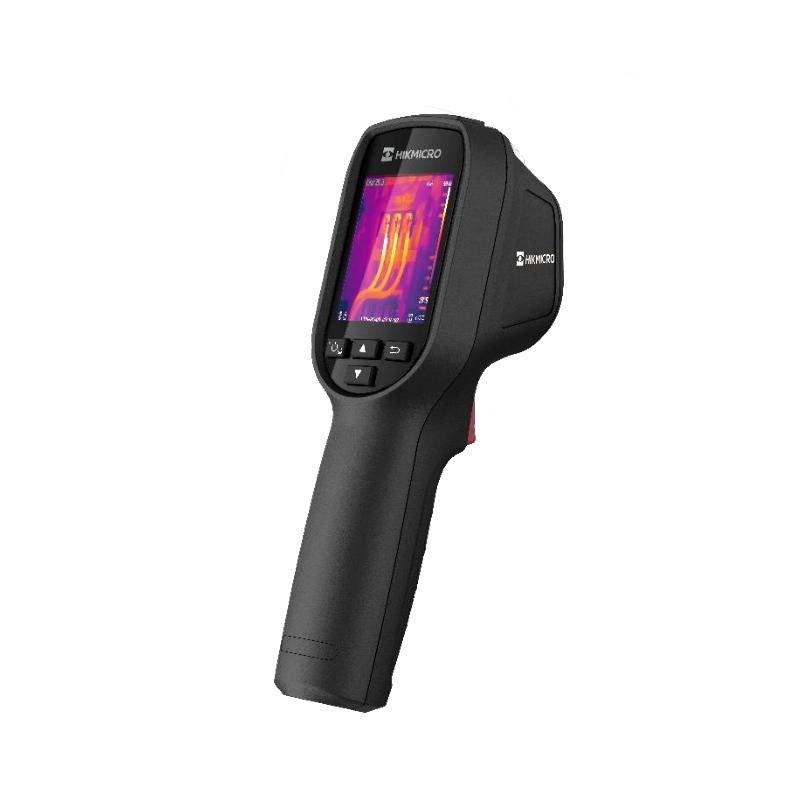

HIKMICRO HM-TPH10-3ON Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| temperature Measurement Range | -20°C~350°C |
| Accuracy | ± 2 ℃ or ± 2% (MAX Maximum) |
| Detector type | Uncooled vanadium oxidation microcalorimeter |
| Detector resolution | 160×120 |
| Response band | 8 ~ 14µm |
| Pixel size | 17um |
| NETD (Noise Equivalent Temperature Difference) | < 50mk(@25 °C,F#=1.0) |
| Thermal imagery lens focal length | F3.1 Fixed focus athermalization |
| Minimum measurement distance | 15cm |
| Field of view | 38.3°×50° |
| Aperture | F1.1 |
| Temperature measurement rules | 3 temperature measurement points (center point, highest temperature, lowest temperature) |
| Temperature measurement unit | Celsius, Fahrenheit, Kelvin |
| Maximum image size | 160×120 |
| frame rate | 25Hz |
| display | 2.4-Inch LCD (320 × 240) |
| Image mode | White hot, black hot, iron red, rainbow |
| image format | JPEG image with temperature measurement information, supports client side offline analysis |
| Laser pointer | Laser indication of temperature measurement area, activated by trigger button |
| storage | 8GB Micro SD卡 |
| Storage extension | Supports up to 128G |
| Power interface | Micro USB direct charging |
| Battery type | Rechargeable lithium-ion battery |
| Charging time | <3H@25 °C |
| Battery working time | >8H@25 °C |
| Power Management | Adjustable; off, 5 minutes, 10 minutes, 20 minutes |
| Operating Temperature | -10°C~50°C |
| Humidity | ≤95% |
| Storage temperature | -40°C~70°C |
| fall | 2m |
| Protection class | IP54 |
| size | 196mm × 78mm × 59mm |
| Weight | < 350G (including battery) |
| Recommended Power model | Comes with 5V power adapter + micro USB cable |
HIKMICRO HM-TPH10-3ON Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
