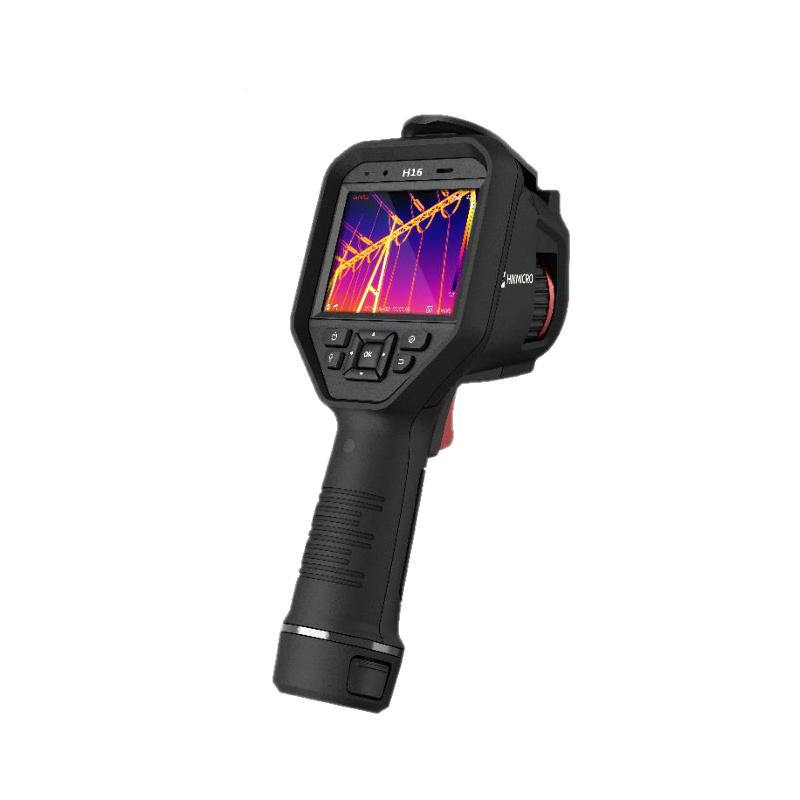

Hikmicrotech HM-TPH16-6VF/W Handheld Thermometer Thermal Imager
3.5 "Touch screen, with wifi connection function, display dual-light fusion image of visible light and thermal imagery at the same time, 16G storage capacity, temperature measurement range -20 ℃~ 400 ℃.
HIKMICRO
HM-TPH16-6VF / W
-
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00
Introduction
Hikvision TPH16 handheld temperature measurement thermal imager is powerful, easy-to-use and cost-effective. It can accurately measure the temperature of high-temperature targets in the environment, help on-site personnel quickly troubleshoot faults, assist decision-making, and ensure safety. It is ideal for construction, electrical, mechanical, etc. There are professional tools in the field of temperature measurement needs. The device adopts a 3.5” touch screen with wifi connection function, equipped with a 160 × 120 infrared Detector and an 800W pixel visible light Detector, which can simultaneously display the dual-light fusion image of visible light and thermal imaging, helping you find hidden problems and make you more quickly make key decisions.

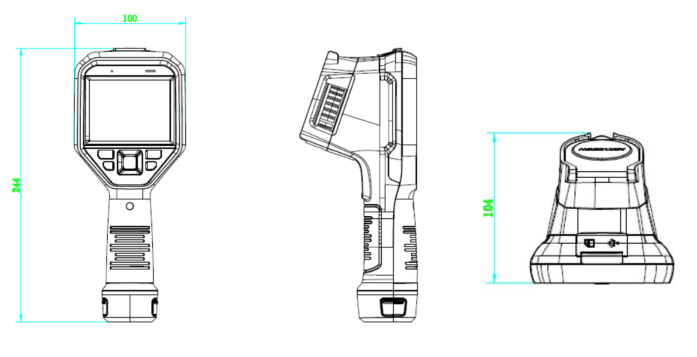

Product Dimensions
HIKMICRO HM-TPH16-6VF / W Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| temperature Measurement Range | -20 °C~400 °C |
| Accuracy | ± 2 ℃ or ± 2% (MAX Maximum) |
| Detector type | Uncooled Detector |
| Detector resolution | 160×120 |
| Response band | 8 ~ 14µm |
| NETD (Noise Equivalent Temperature Difference) | < 50mk(@25 °C,F#=1.0) |
| Thermal imagery lens focal length | 6.2 mm |
| Minimum measurement distance | 0.3m |
| Field of view | 25° × 19° |
| Aperture | F1.1 |
| Maximum image size | 3264 × 2448 |
| frame rate | 25Hz |
HIKMICRO HM-TPH16-6VF / W Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
