Hikmicrotech HM-TPH21Pro-3AQF Handheld Thermometer Thermal Imager
Temperature measurement range -20 ℃~ 350 ℃, support timing, temperature difference shutter correction, standby time > 6h, support automatic shutdown power saving mode, support thermal imagery and visible light dual-light fusion.
HIKMICRO
HM-TPH21Pro-3AQF
-
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00
Features
thermal image
Native resolution 256 × 192, high sensitivity vanadium oxide uncooled Detector
Support timing, temperature difference shutter correction
Support 3D noise reduction function, image detail enhancement function
Support 4 false colors adjustable
Dual light fusion: support thermal imaging and visible light dual light fusion
Abnormal temperature alarm function
Temperature range: -20 °C~350 °C
Temperature measurement accuracy: ±2 °C or ±2% of reading (whichever is the maximum value)
System functions
Standby time >6 h, support automatic shutdown power saving mode
Support central point, highest temperature, lowest temperature temperature measurement
Image storage full-screen temperature measurement information, support offline temperature measurement analysis (cooperate with the client)

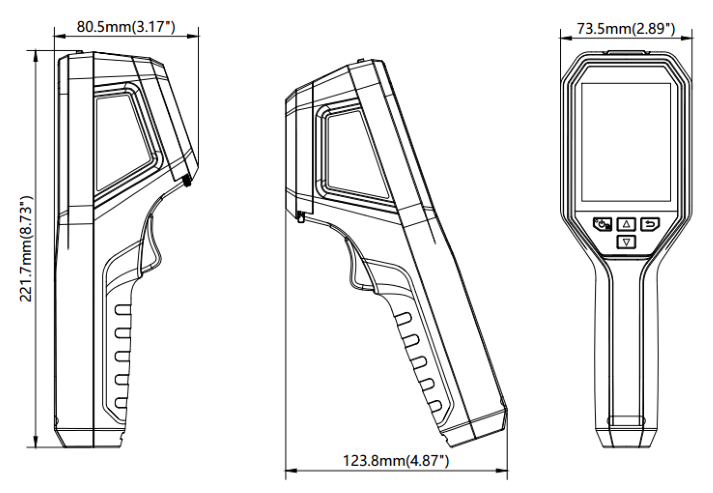

Product Dimensions
HIKMICRO HM-TPH21Pro-3AQF Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| Sensors Type | Uncooled vanadium oxidation microcalorimeter |
| Detector resolution | 256×192 |
| Response band | 8 ~ 14µm |
| NETD (Noise Equivalent Temperature Difference) | ＜50mk(@25°C,F#=1.0) |
| Maximum image size | 240×320 |
| Minimum imagery distance | 0.3m |
| Thermal imagery field of view | 37.2°×50.0° |
| Thermal imagery frame rate | 25Hz |
| Pixel size | 12µm |
| Minimum measurement distance | 0.3m |
| F value | F1.0 |
| Temperature measurement unit | Celsius, Fahrenheit, Kelvin |
| temperature Measurement Range | -20°C~350°C |
| Thermal imagery Accuracy | ± 2 ℃ or ± 2% of reading (MAX Maximum) |
| spatial resolution | (IFOV)3.3 mrad |
| Visible light resolution | 1600×1200 |
| Visible light field of view | 55°×42° |
| Visible light maximum image size | 1600×1200 |
| Visible light picture resolution | 1600×1200 |
| Image display display | 3.2-Inch LCD (240 × 320) |
| Image mode | White hot, black hot, iron red, rainbow |
| Screen display mode | Fusion, thermal imagery, visible light, PIP |
| Maximum image size | 240×320 |
| Image display frame rate | 25Hz |
| image format | JPEG image with temperature measurement information, supports client side offline analysis |
| UVC screen projection | support |
| lighting | support |
| WIFI | Not supported |
| alarm linkage | Support sound alarm, light alarm, image alarm |
| Temperature measurement rules | 6 temperature measurement points (center point, highest temperature, lowest temperature, 3 custom points) |
| storage | 16GB built-in emmc |
| Power interface | Type-C direct charging |
| Battery type | Rechargeable lithium-ion battery |
| Charging time | ＜3h@25°C |
| Battery working time | ＞6h@25°C |
| Power Management | Adjustable; off, 5 minutes, 10 minutes, 20 minutes |
| Operating Temperature and Humidity | -10°C~50°C，≤95% |
| Storage temperature and humidity | -20°C~60°C，≤95% |
| Protection class | IP54 |
| anti-drop grade | 2m |
| Weight | 380G (including battery) |
| size | 221.7mm×73.5mm×80.5mm |
HIKMICRO HM-TPH21Pro-3AQF Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
