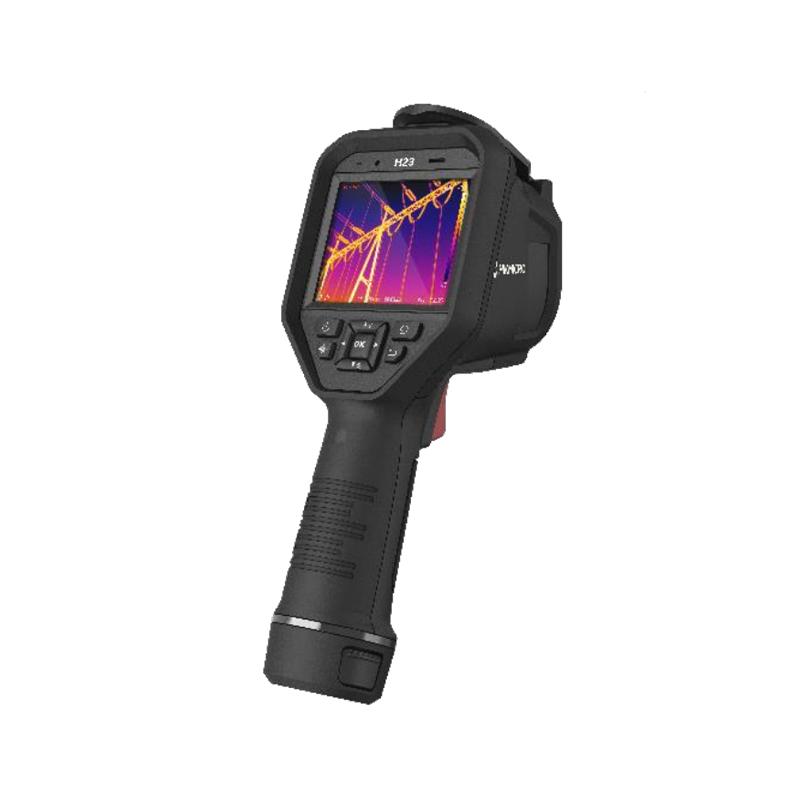

Hikmicrotech HM-TPH23-3AQF/W Handheld Thermometer Thermal Imager
Temperature measurement range -20 ℃~ 150 ℃ or 100 ℃~ 550 ℃, thermal imagery fixed focus lens 3.6mm, 3.5-inch touch sunlight screen, with the app to support remote album access.
HIKMICRO
HM-TPH23-3AQF/W
-
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00
Features
Thermal imaging fixed focus lens 3.6 mm
Minimum focusing distance 0.5 m
Resolution 256 × 192 high sensitivity Detector
3.5 inches touch sunlight screen
Support maximum, low temperature, center positioning
Support point, line, frame temperature measurement
Temperature range: -20 °C~150 °C or 100 °C~550 °C
Temperature measurement accuracy: ±2 °C or ±2% of reading (take the maximum value)
Support 3D noise reduction function, digital zoom, false color adjustment, contrast adjustment
Support dual-light fusion of thermal imaging and visible light
Cooperate with the app to support remote photo album access, download, and report quickly
Support Weiying Thermal Vision APP, Analyzer, UVC projection software

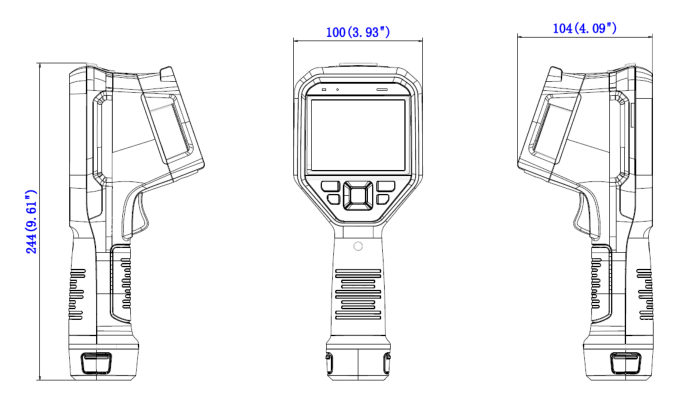

Product Dimensions
HIKMICRO HM-TPH23-3AQF/W Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| Sensors Type | Uncooled Detector |
| Response band | 8 ~ 14µm |
| NETD (Noise Equivalent Temperature Difference) | ＜50mk(@25°C,F#=1.0) |
| Maximum image size | 256×192 |
| Minimum imagery distance | 0.5m |
| Thermal imagery field of view | 50° × 37.2° |
| Thermal imagery frame rate | 25Hz |
| Pixel size | 12µm |
| Minimum measurement distance | 0.5m |
| F value | F1.0 |
| temperature Measurement Range | -20°C~550°C |
| Thermal imagery Accuracy | ± 2 ℃ or ± 2% of reading (MAX Maximum) |
| spatial resolution | (IFOV)3.3 mrad |
| Focus mode | Fixed focus is not adjustable |
| Visible light picture resolution | 3264 × 2448 |
| Visible light maximum image size | 3264 × 2448(8 MP) |
| Visible light video resolution | 1600×1200 |
| Image display display | 3.5 "LCD capacitive touch screen 640 × 480 |
| Image mode | Support 7 pseudo-color modes of white hot, black hot, rainbow, iron red, red hot, fusion, and rain, and support two pseudo-color functions such as high temperature focusing |
| Screen display mode | Visible light, thermal imagery, dual light fusion, PIP |
| Bluetooth | support |
| Laser indication | support |
| take a picture | Thermal imagery, visible light, dual light fusion, PIP |
| video recording | Thermal imagery, visible light, dual light fusion, PIP |
| lighting | support |
| Text annotation | support |
| interface language | Chinese |
| WIFI | support |
| storage | 16 G (maximum support 128 G) |
| Hardware interface | TYPE-C |
| Battery type | Li-ion battery |
| Battery working time | 6H, can be replaced on site, can be charged |
| Protection class | IP54 |
| Operating Temperature and Humidity | -10 °C~50 °C，≤95% |
| Weight | 660 g |
| size | 244 mm × 100 mm × 104 mm |
| Thermal imagery lens focal length | 3.6mm |
| Number zoom | 1.0~8.0 Continuous digital multiplication |
| anti-drop grade | 2 m |
HIKMICRO HM-TPH23-3AQF/W Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
