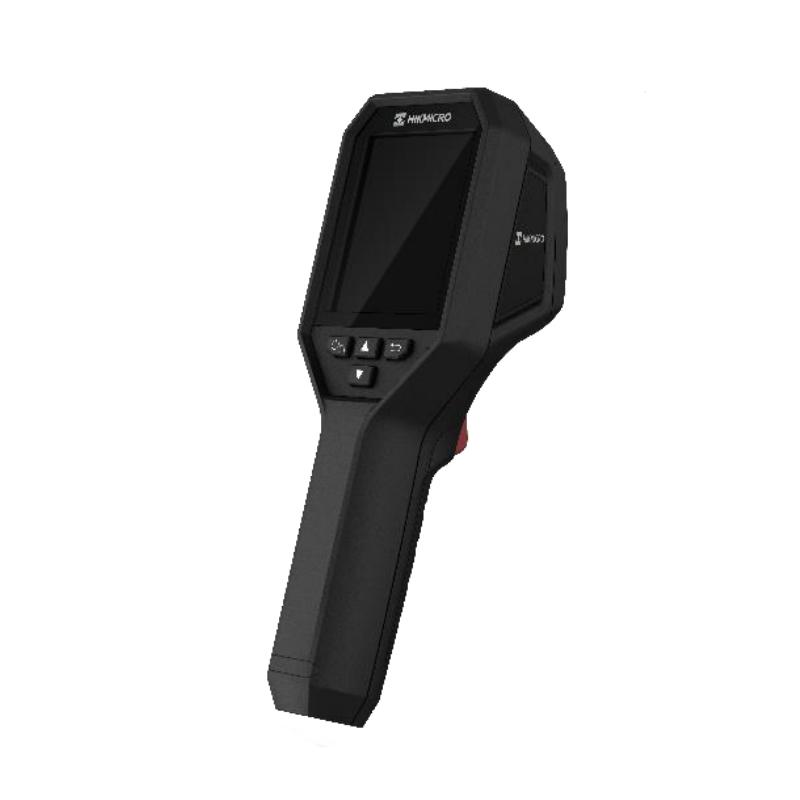

Hikmicrotech HM-TPH21-3AXF Portable Thermometer
Temperature measurement range -20 ℃~ 350 ℃, support timing, temperature difference shutter correction, minimum measurement distance 0.3m, support laser indication, UVC screen projection.
HIKMICRO
HM-TPH21-3AXF
-
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00
Features
Thermal imaging image:
Native resolution 256 × 192, high sensitivity vanadium oxide uncooled Detector
Support timing, temperature difference shutter correction
Support 3D noise reduction function, image detail enhancement function
Support 4 false colors adjustable
Abnormal temperature alarm function:
Support central point, highest temperature, lowest temperature temperature measurement
Temperature range: -20 °C~350 °C
Temperature measurement accuracy: ±2 °C or ±2% of reading (take the maximum value)
System functions:
Standby time > 8 h, support automatic shutdown power saving mode
Image storage full-screen temperature measurement information, support offline temperature measurement analysis (cooperate with the client)

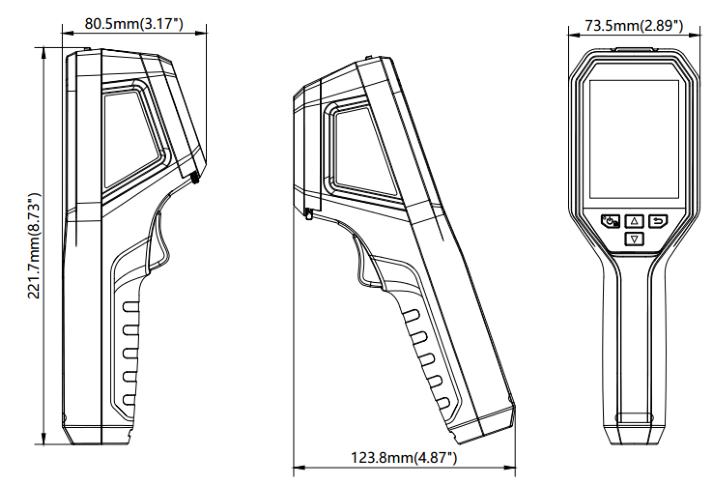

Product Dimensions
HIKMICRO HM-TPH21-3AXF Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| Sensors Type | Uncooled vanadium oxidation microcalorimeter |
| Response band | 8 ~ 14µm |
| NETD (Noise Equivalent Temperature Difference) | ＜50mk(@25°C,F#=1.0) |
| Maximum image size | 240×320 |
| Minimum imagery distance | 0.3m |
| Thermal imagery field of view | 37.2° × 50.0° |
| Thermal imagery frame rate | 25Hz |
| Pixel size | 12µm |
| Minimum measurement distance | 0.3m |
| F value | F1.0 |
| temperature Measurement Range | -20°C~350°C |
| Thermal imagery Accuracy | ± 2 ℃ or ± 2% of reading (MAX Maximum) |
| spatial resolution | (IFOV)3.3 mrad |
| Image display display | 3.2-Inch LCD (240 × 320) |
| Image mode | High temperature highlights, white heat, black heat, iron red, rainbow |
| Maximum image size | 240 × 320 |
| frame rate | 25 Hz |
| image format | JPEG image with temperature measurement information, supports client side offline analysis |
| Laser indication | support |
| UVC screen projection | support |
| lighting | Not supported |
| WIFI | Not supported |
| storage | 4 GB built-in emmc |
| Hardware interface | Type-C direct charging |
| Battery type | Rechargeable lithium-ion battery |
| Battery working time | ＞8 h@25 °C |
| Protection class | IP54 |
| Operating Temperature and Humidity | -10 °C~50 °C，≤95% |
| Weight | 380G (including battery) |
| size | 221.7 mm × 73.5 mm × 80.5 mm |
| anti-drop grade | 2 m |
| Detector resolution | 256 × 192 |
| Temperature measurement unit | Celsius, Fahrenheit, Kelvin |
| Temperature measurement rules | 6 temperature measurement points (center point, highest temperature, lowest temperature, 3 custom points) |
| Charging time | ＜3h@25 °C |
| Power Management | Adjustable; off, 5 minutes, 10 minutes, 20 minutes |
| Storage temperature and humidity | -20 °C~60 °C，≤95% |
HIKMICRO HM-TPH21-3AXF Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
