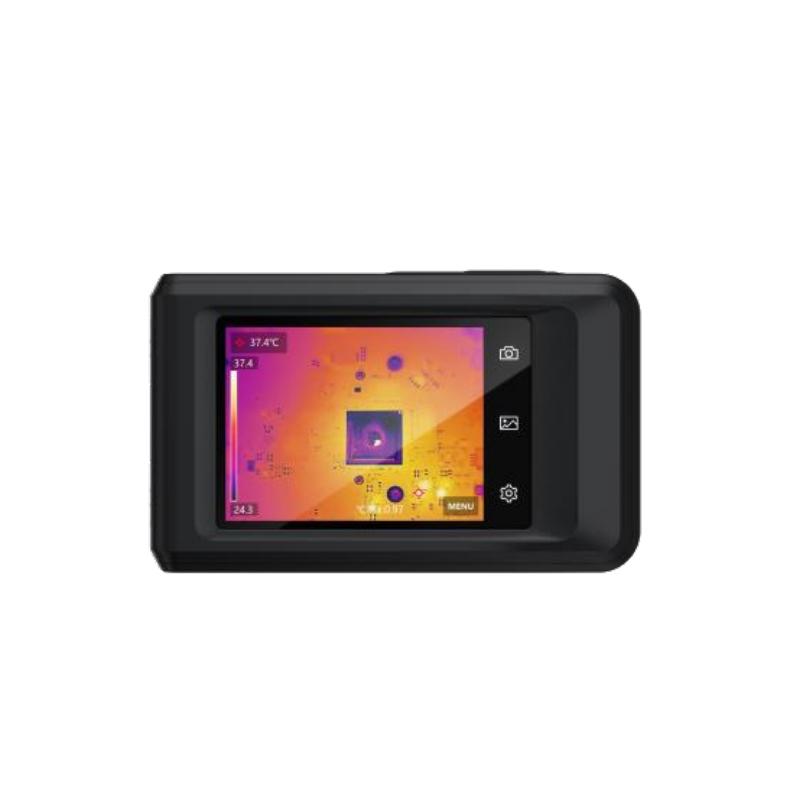

HIKMICRO HM-TPK200-3AQF/W Handheld Infrared thermal imager
Temperature measurement range -20 ℃~ 400 ℃, support 1.x~ 4.x continuous digital zoom, 8MP visible light camera, battery life up to 4 hours.
HIKMICRO
HM-TPK20-3AQF/W
-
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00
Introduction
The resolution of the infrared Detector is 256Ã192 (49152 pixels), NETDï¼50mK (@25°C, F#=1.0)
Temperature measurement range: -20°C~400°C
Temperature measurement accuracy: ±2°C or ±2% (whichever is the maximum)
Supports 1.x~4.x continuous digital zoom
Support automatic AGC, manual AGC, one-click AGC
Frame rate: 25Hz
8MP visible light camera
Battery life up to 4 hours

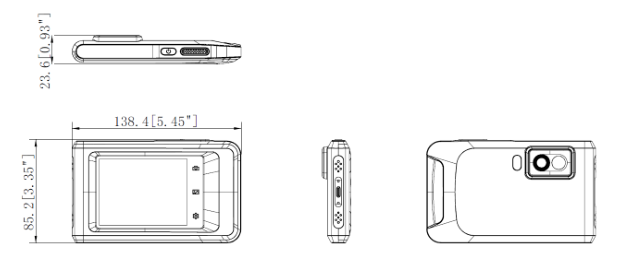

Product size chart
HIKMICRO HM-TPK20-3AQF/W Handheld thermal imaging cameraSpecifications
| LIST | VALUE |
|---|---|
| Sensor type | Uncooled Detector |
| Response band | 8~14μm |
| NETD (Noise Equivalent Temperature Difference) | ＜50mk（@25℃，F#=1.0） |
| Maximum image size | 256*192 |
| Thermal imagery lens focal length | 3.5mm |
| Minimum imagery distance | 0.3m |
| Field of view | 50°×37.5° |
| digital zoom | 1X~ 4X, minimum change 0.1X |
| frame rate | 25Hz |
| pixel size | 12μm |
| F value | F1.1 |
| Temperature Measurement Range | -20℃~400℃ |
| Accuracy | +/- 2 ° or +/- 2%, MAX Maximum |
| Spatial resolution (IFOV) | 3.43mrad |
| Visible light maximum image size | 3264×2448 |
| Visible image resolution | 1600x1200 |
| Visible video resolution | 1600x1200 |
| monitor | 3.5 "LCD Capacitive Touch Screen 640 × 480 |
| image mode | Support 7 pseudo-color modes such as rainbow and iron red |
| screen display mode | Visible light, thermal imagery, dual light fusion, PIP |
| Temperature measurement rule | Support hot, cold, and center points |
| UVC screen projection | support |
| Battery Capacity | 2100mAh |
| Charging time | 1.5 hours fast charge to 94% battery, 2.5 hours full charge |
| Bluetooth | support |
| take a picture | Thermal imagery, visible light, dual light fusion, PIP |
| video | Thermal imagery, visible light, dual light fusion, PIP |
| lighting | support |
| Text annotation | support |
| interface language | Chinese |
| WIFI | support |
| Storage | 16GB |
| Hardware interface | TYPE-C |
| Battery type | Li-ion battery |
| Working time of battery | 4h |
| tripod mounting | Support, standard UNC ¾ "-20 hole position |
| Operating temperature and Humidity | -10℃~50℃，≤95% |
| Protection level | IP54 |
| anti-drop grade | 2m |
| Weight | 218g |
| size | 138.5mm×85.2mm×23.6mm |
| PC software | Support for HikmicroAnalyzer client side |
| App | Support Lieying Heat Vision APP |
| screen projection | Support UVC screen projection |
HIKMICRO HM-TPK20-3AQF/W Handheld thermal imaging camera Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
