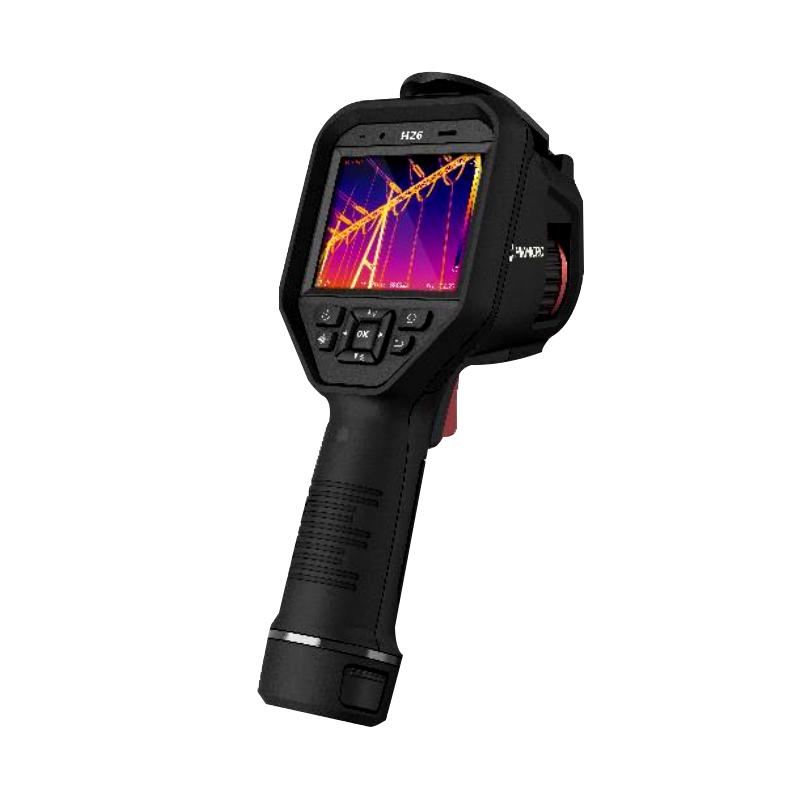

HIKMICRO HM-TPH26-7QF/W Handheld Infrared thermal imager
Thermal imagery fixed focus lens 6.9mm, temperature measurement range -20 ℃~ 550 ℃, supports 3D noise reduction function and dual-light fusion of thermal imagery and visible light, and supports remote album access with the app.
HIKMICRO
HM-TPH26-7QF/W
-
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
ST9450A + infrared thermal imagery instrument
$ 413.00
Introduction
Thermal imaging fixed focus lens 6.9mm
Minimum focus distance 0.1m
Resolution 256×192 high sensitivity Detector
3.5 inches touch sunlight screen
Support highest temperature, lowest temperature, center positioning
Support point, line, frame temperature measurement
Temperature range: -20-150°C or 100-550°C
Temperature measurement accuracy: ±2°C or ±2% of reading (take the maximum value)
Support 3D noise reduction function, digital zoom, false color adjustment, contrast adjustment
Support dual-light fusion of thermal imaging and visible light
Cooperate with the app to support remote photo album access, download, and report quickly
Support Weiying Thermal Vision APP, Analyzer, UVC projection software

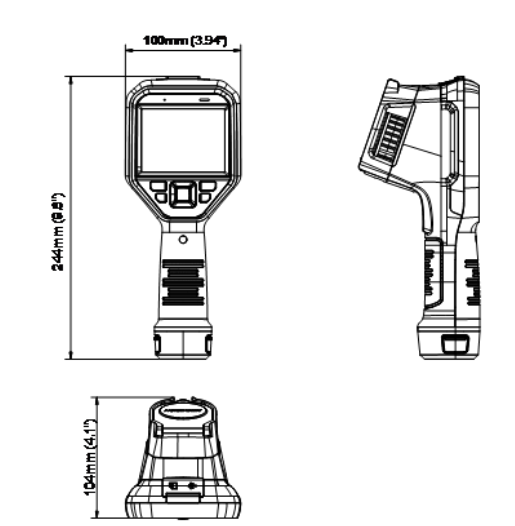

Product Dimensions
HIKMICRO HM-TPH26-7QF/W Handheld Thermometer Thermal ImagerSpecifications
| LIST | VALUE |
|---|---|
| Sensor type | Uncooled Detector |
| Response band | 7.5 ~ 14µm |
| NETD (Noise Equivalent Temperature Difference) | ＜50mk（@25℃，F#=1.0） |
| Maximum image size | 256×192 |
| Thermal imagery lens focal length | 6.9mm |
| Minimum imagery distance | 0.1m |
| Field of view | 25°×18.8° |
| Number zoom | 1.0~8.0 Continuous digital multiplication |
| frame rate | 25Hz |
| F value | F1.0 |
| temperature Measurement Range | -20°C~550°C |
| Accuracy | +/- 2 ℃ or +/- 2%, MAX Maximum |
| Spatial resolution (IFOV) | 1.74mrad |
| Visible light maximum image size | 3264×2448(8MP) |
| Visible image resolution | 3264×2448 |
| Visible video resolution | 1600x1200 |
| display | 3.5 "LCD capacitive touch screen 640 × 480 |
| Image mode | Support 7 pseudo-color modes of white hot, black hot, rainbow, iron red, red hot, fusion, and rain, and support two-stage pseudo-color functions such as high temperature focusing |
| Screen display mode | Visible light, thermal imagery, dual light fusion, PIP |
| Bluetooth | support |
| take a picture | Thermal imagery, visible light, dual light fusion, PIP |
| video recording | Thermal imagery, visible light, dual light fusion, PIP |
| lighting | support |
| Text annotation | support |
| interface language | Chinese |
| WIFI | support |
| storage | 16GB (maximum support 128G) |
| Hardware interface | TYPE-C |
| Battery type | Li-ion battery |
| Battery Working time | 6H, can be replaced on site, can be charged |
| Tripod mount | Support, standard UNC ¾ "-20 hole position |
| Operating temperature and Humidity | -10°C~50°C，≤95% |
| Protection class | IP54 |
| anti-drop grade | 2m |
| Weight | 660g |
| size | 244mm×100mm×104mm |
| Minimum measurement distance | 0.1m |
| Focus mode | Fixed focus manually adjustable |
| Laser indication | support |
HIKMICRO HM-TPH26-7QF/W Handheld Thermometer Thermal Imager Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
