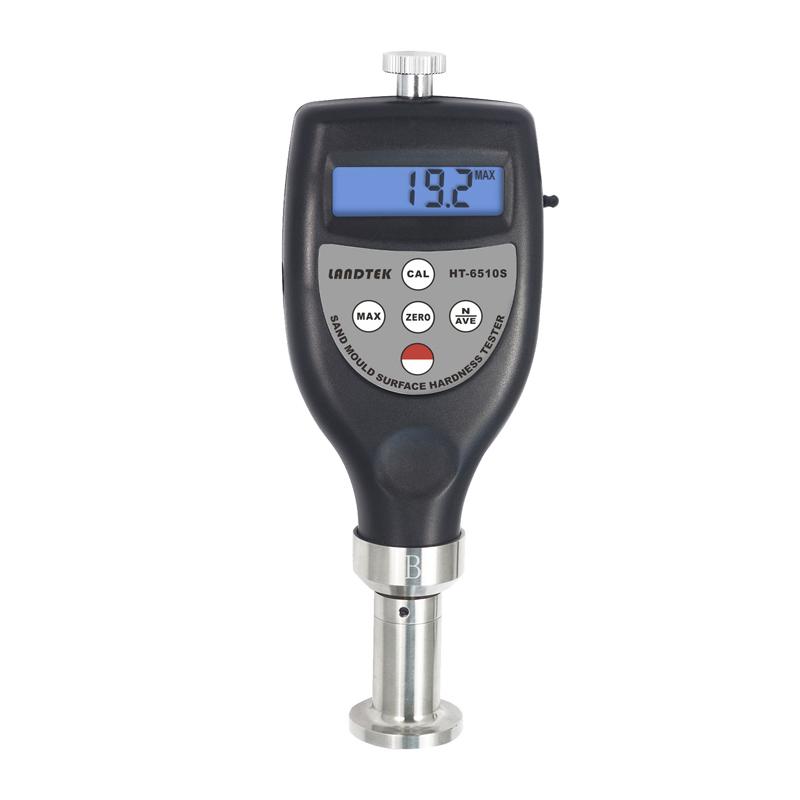

LANDTEK HT-6510S-C Sand surface Hardness Gauge

Features

The sand surface Hardness Tester is used to measure the surface hardness of the wet mold sand mold/core, and provide Specifications for formulating the molding process.

The sand surface Hardness Tester is divided into three types: A, B, and C, and the commonly used type is B type. in:

• Type A: Suitable for surface hardness testing of fine sand molds/cores for manual or mechanical low and medium pressure molding.

• Type B: suitable for surface hardness testing of fine and coarse sand molds/cores for manual or mechanical low and medium pressure molding.

• Type C: suitable for testing the surface hardness of sand molds for high-pressure molding.

The unit of type B of the sand surface Hardness Tester is (g/mm), but it is customary to use the hardness H (A/B/C) instead of the unit. Because their values are related and consistent, if the unit value is large (g/mm), the corresponding hardness value is also large.

Average value calculation, maximum value latch, underVoltage alarm indication function.

Use USB cable, bluetooth data output to communicate with PC.

Models

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
