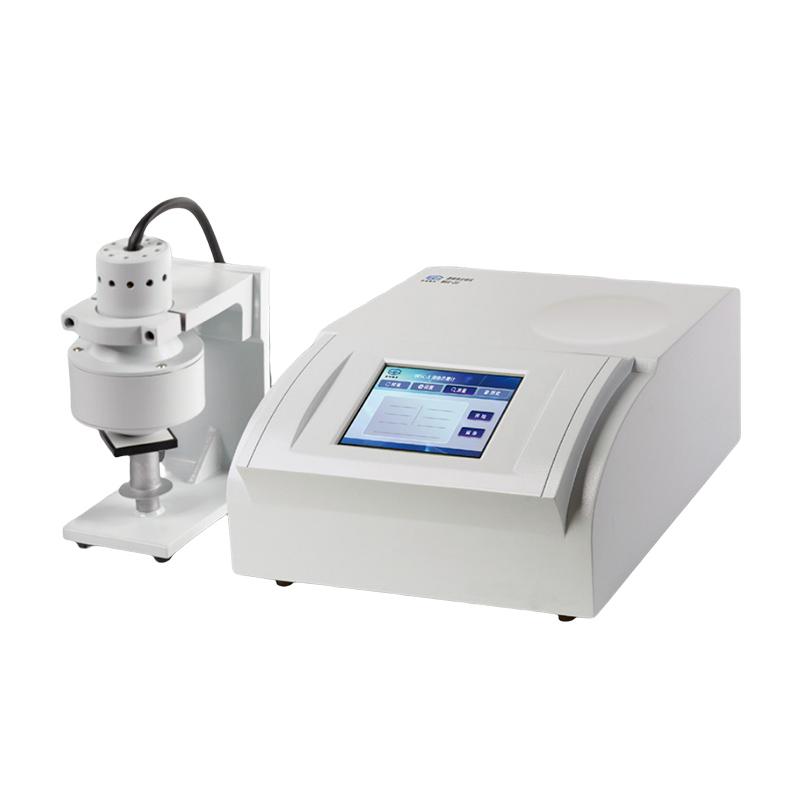

INESA WSC-2S Colorimeter touch screen control, multi-interface output
Equipped with 7-inch touch screen, supports a variety of color systems and color difference calculation, Repeatability s (Y) ≤ 0.3, with 1000 sets of Data storage and playback functions, easy to operate.
INESA
WSC-2S
-
3NH CR5 color difference treasure (industrial professional version) accuracy 0.1
$ 425.00 -
WF30 Colorimeter 4mm small diameter Colorimeter automatic correction, visual positioning
$ 1159.00 -
JZ-630 High Precision Colorimeter Suitable for Textile, coating powder industry color difference detection measurement diameter 14mm
$ 724.00 -
CHNSPEC Bluetooth Printer
$ 179.00 -
WF series Colorimeter liquid, powder multifunctional test accessories, suitable for 16mm aperture WF Colorimeter
$ 506.00
Introduction
WSC series Colorimeter is a widely used and easy-to-operate Colorimeter, which is suitable for determining the reflected color of various objects, and can test the whiteness, chromaticity and color difference of two objects.
The test head with geometric conditions is used, i.e. 0/d as specified by the CIE.
WSC-2S color Colorimeter, touch screen control display, with printout, host computer output, U disk output, data storage, data return visit functions.
This series of instruments can be widely used in textile, dyes, printing and dyeing, papermaking, building materials, enamel, food, printing, measurement and other departments.
INESA WSC-2S Color difference meterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 0/d |
| Light spectrum conditions | Overall Response is equivalent to the tristimulus values X, Y, Z under CIE standard illumination D65 and color-matching function of 10 ° field of view |
| Repeatability | s (Y) ≤0.3；s (x)，s (y) ≤0.001；ΔE(L*a*b*)≤0.2。 |
| Stability | Δh (Y) ≤0.2 |
| Precision | ΔY≤2 ΔX、ΔY≤0.02 |
| Color system Color | X、Y、Z； Y、x、y；L*、a*、b*； L、a、b； L*、U*、v*； L*、C*、h |
| Color system color difference | △E(L*a*b*) 、 △E(lab)、△E(L*u*V*)、△L*、△C*、△H* |
| Color system Yellow index | YI、△YI |
| Color whiteness | Gantz whiteness, CIE recommended binary linear whiteness |
| Color system blue light whiteness | W=B |
| Surface Color System Taube (Tabble) | American Materials Association ASTM recommendation, W = 4B-3G |
| Irradiated sample area | Φ20 |
| Display mode | 7-Inch touchscreen display |
| Communication interface | USB interface, U disk interface |
| Data storage | 1000 sets of Data storage space, with data playback |
| Performance class | JJG 595-2002 verification procedures: Level 1 |
| Printer model | Thermal printer RD TH-32SC (optional) |
| Power Supply | 220V ±22V，50Hz± 1Hz，30w |
| Instrument size | Host 365 × 290 × 169 (mm), test head φ 120mm × 170mm |
| Net Weight of instrument | 7.5kg |
| Surface color system Hunter whiteness | GB/T 5950-1996 "Methods for measuring the whiteness of building materials and Non-metallic mineral products", Wh = 100- [ (100-L) 2 + a2 + b2] 0.5; |
| Surface color system building materials whiteness | GB/T 5950-1996 "Building materials and Non-metallic mineral products whiteness Measuring method" adopted, Wj = Y + 400x-1000y + 205.5; |
| Color system yellowness index | ASTM E 313,Yi=100 (1.3013X-1.1498Z) |
INESA WSC-2S Color difference meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
