        Home> Peel Strength Tester> labchen> labchen WDB-020 Peel strength Tester

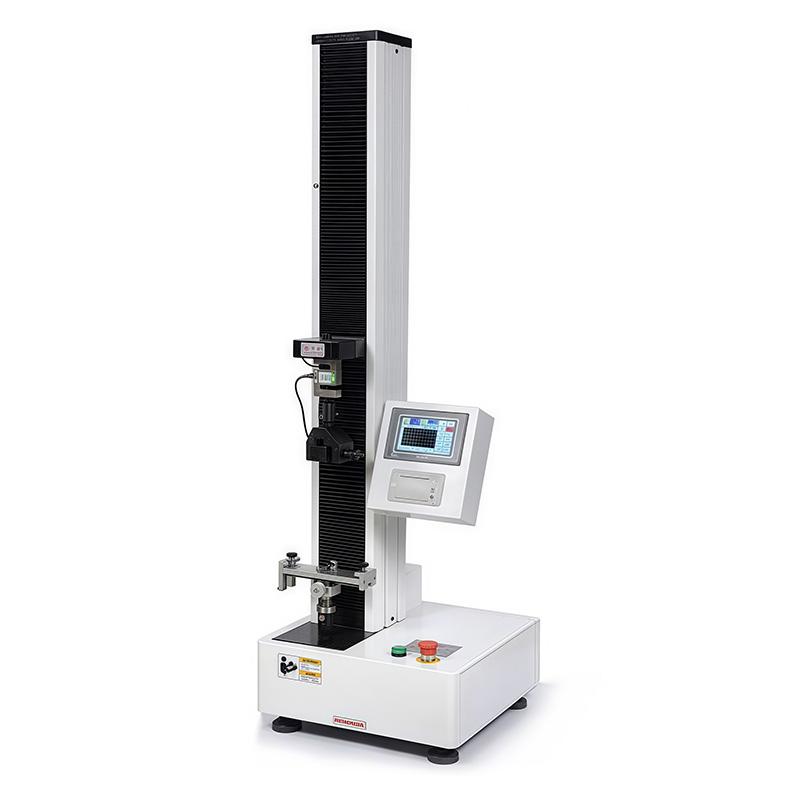

        labchen WDB-020 Peel strength Tester

        CHENCHI WDB-020 Sealing Strength Tester 2000N

        Five-inch color LCD touch screen, test force 0~2000N, accuracy level +/- 1%, stretch space 800mm, with overload, leakage, limit protection functions.

        Brand
        SKU: NB042760
        China labchen
        Stock
        Loading…
        Price
        $ 1544.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          labchenLOGO

          labchen shopSE

          Information
          Datasheet RFQ Contract Catalog
          What else did others buy
          Genuinegoods

          • labchen WDB-020 Peel strength TesterOverview

          • Specifications
          • Comments
          • FAQs
          WDB-020
          Peel strength Tester
          • CHENCHI WDB-020 Sealing Strength Tester 2000N
          Five-inch color LCD touch screen, test force 0~2000N, accuracy level +/- 1%, stretch space 800mm, with overload, leakage, limit protection functions.

          Introduction

          The instrument is a peel Strength Tester designed for colleges and universities and scientific research institutes. The design of the main body and auxiliary equipment of the testing machine integrates excellent technology, with beautiful appearance, convenient operation and stable and reliable performance. Various test methods such as tensile strength, 180°peel strength, and sealing strength can be realized; the system controls the rotation of the servo motor through the speed control system through the Chenchi controller, and after being decelerated by the deceleration system, it goes up through the precision screw auxiliary belt beam, Descending, to complete the tensile mechanical properties test of the sample, no pollution, low noise, high efficiency, and a wide range of speed regulation. The machine is widely used in the inspection and analysis of materials in construction materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Good test equipment.

          Reference standard

          GB 8808, GB/T 1040.1, GB/T 1040.2, GB/T 1040.3, GB/T 1040.4, GB/T 1040.5, GB/T 4850, GB/T 12914, GB/T 17200, GB/T 16578.1, GB/T T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB /T 1130.


          VS

          labchen WDB-020 Peel strength TesterSpecifications

          LIST VALUE
          test force 2000N
          Operation mode Five-inch color LCD touch screen,
          Measurement range 2%~ 100% of the maximum test force
          Accuracy level ±1%
          Test force Accuracy +/- 1% better than indication
          Deformation display error ≤±(50+0.15L)
          Test force minimum resolution 0.01N
          Displacement measurement resolution 0.01mm
          Deformation Accuracy Better than +/- 1%
          LCD content Test force, displacement, peak value, running state, running speed, etc
          stepless speed regulation Stepper Motor and Control system
          Drive mode Stepper motor, synchronous belt drive
          Motor Power 150W
          Speed regulation range 1mm/min~500mm/min
          test stroke 800mm (can be customized)
          stretch space 800mm (can be customized)
          Host size 500*420*1550mm
          Test protection function Overload protection, leakage protection, limit protection
          Power supply 220V  50Hz
          Weight About 80Kg

          labchen WDB-020 Peel strength Tester Packing list

          complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Plastic film tensile performance needs to be tested in our laboratory.
          [A]
          Applicable! WDB-020 is not only good at disbonding testing, but also supports tensile strength testing. It meets the GB/T 1040 plastic tensile standard. Measurement accuracy of force value is +/- 1%, and the speed range is adjustable from 1-500mm/min. It can accurately obtain key data such as tensile strength and fracture elongation of the film.
          [Q]
          What instruments are used for tensile strength testing in the Building materials industry?
          [A]
          The WDB-020 Peel strength tester meets the relevant standards of Building materials such as GB/T 1040, can accurately measure tensile strength and other parameters, its 2000N force range and +/- 1% accuracy can meet the requirements of building materials testing, and has overload protection function to ensure safe operation.
          [Q]
          Instruments requiring simultaneous 180 ° disbonding, seal strength and tensile testing
          [A]
          The device features a multi-functional integrated design, with three test modes switched through precision screws and servo motors. The five-inch touchscreen can be used to set different parameters intuitively, and the 1-500mm/min stepless speed regulation can be adapted to various material testing requirements.
