Pushen ISO-6 #Flow Cup with bracket, aluminum material

Introduction to ISO Cup

Pushen ISO Cup is a desktop Viscosity Cup with a bracket. It has five different models designed according to different measuring apertures: No. 3, No. 4, No. 5, No. 6, and No. 8 (need to be customized ) . They are 3mm, 4mm, 5mm, 6mm and 8mm respectively . The production designer of Pushen ISO cup complies with the standard ASTM D 5125, ISO 2431, which is the required testing instrument for laboratory testing of viscosity.

The Pushkin ISO Cup is made of anodized aluminum with a stainless steel bore and is used for measuring the viscosity of paints, varnishes and other similar products.

Viscosity unit

The kinematic viscosity value is usually expressed in seconds after the flow is completed, and can also be converted into centistokes (Centistokes) through the viscosity conversion disc.

The unit of kinematic viscosity is stokes, Stokes, when the fluid viscosity is 1P (poise), the kinematic viscosity with a density of 1g/cm3 is 1 Stokes.

cSt is the abbreviation of centistokes, called centistokes, which is one hundredth of 1 Stokes. Centistokes (cSt) is the smallest unit of kinematic viscosity.

Standards

Paint ISO cups are made according to ASTM D 5125, ISO 2431 "Determination of flow time by Flow Cup for paints and varnishes".

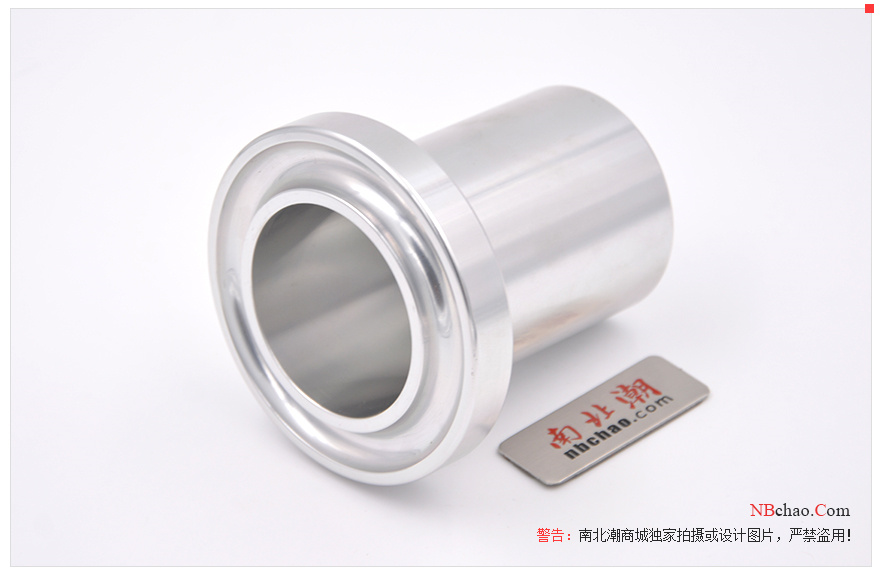

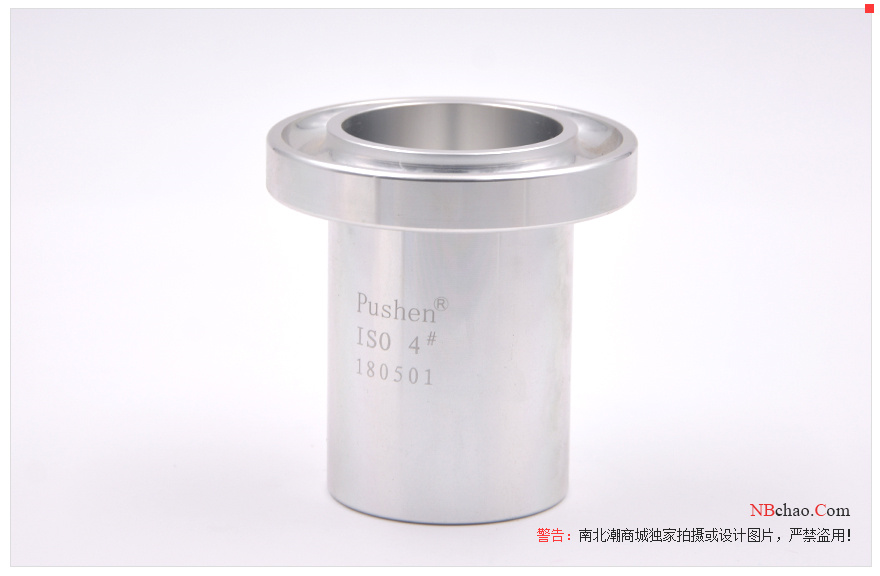

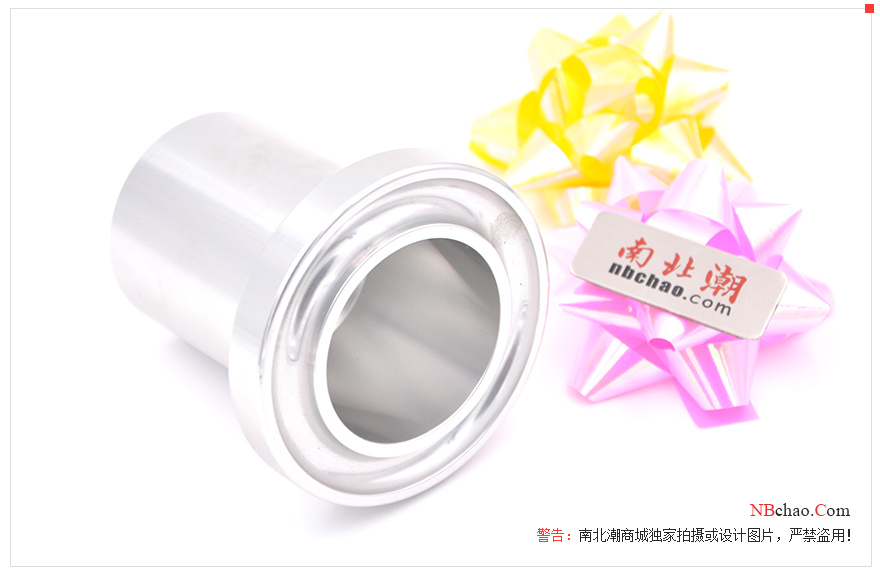

Pictures

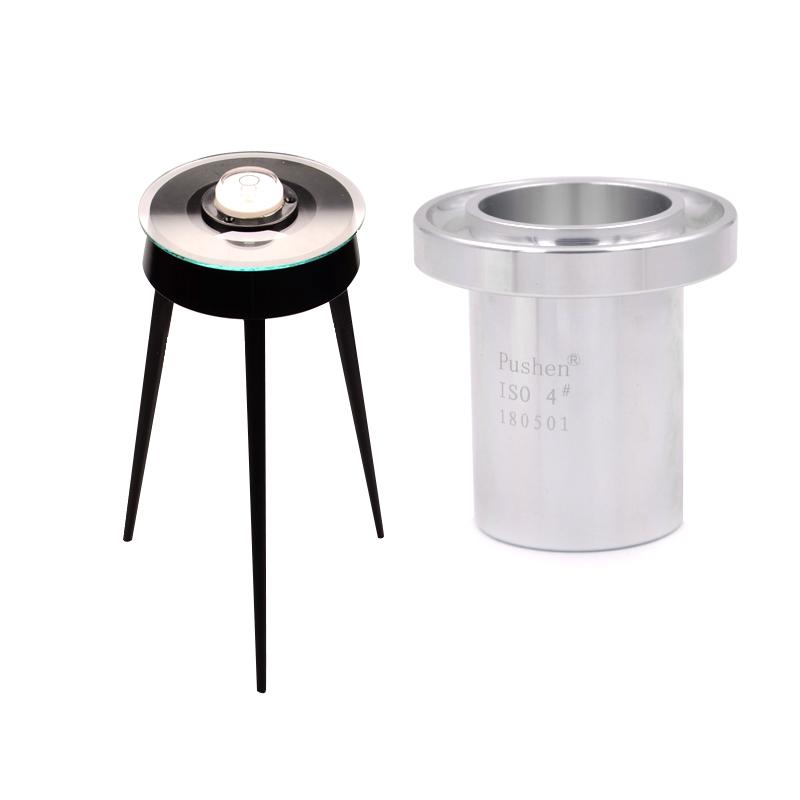

Viscosity cup x1, bracket x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
