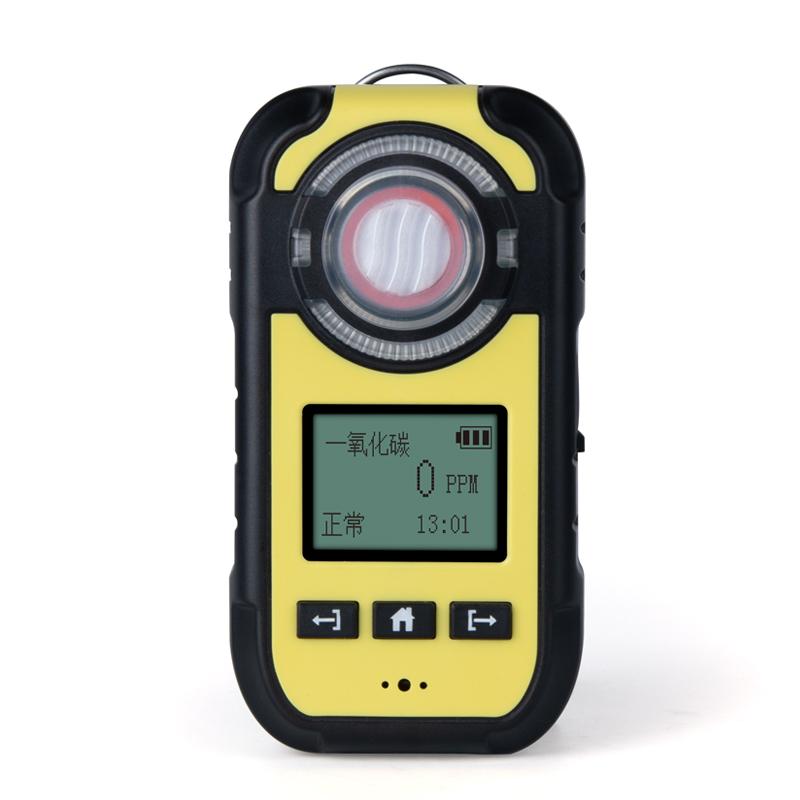

BOSEAN BH-90M Gas Detector host
Support a variety of gases, range 0~1000ppm, Response time T90 < 60s, diode sound, vibration indication alarm.
Bosean
BH-90M
-
HONEYEAGLE HNAG1000-NO Fixed nitric oxide Detector 0-2000PPM
$ 591.00 -
HONEYEAGLE HNAG1000-NH3 Fixed Ammonia Gas Detector 0-1000PPM
$ 607.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 500PPM
$ 285.00 -
GUOYUGRA GY/VGD-200-C2H6O-G (0-5% Vol) Ethanol Detector (Infrared)
$ 941.00 -
Empaer AATL-SO2 (4G) Pathfinder Series Stationary Sulfur Dioxide Detector
$ 722.00
Introduction
This portable Gas Detector (hereinafter referred to as the Detector) adopts large-scale integrated circuit technology and complies with international standards for intelligent technology. This Detector detects gases through natural diffusion and has excellent sensitivity and excellent repeatability. It is easy to use and maintain, which greatly meets the requirements for high reliability of equipment for industrial site safety monitoring. The shell is made of high-strength engineering plastics and composite anti-slip rubber. It has high strength, good feel, and is waterproof, dustproof, and explosion-proof. This Detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical, agriculture and other industries.
follow standards
GB3836.1-2010 "Explosive environments Part 1: General requirements for equipment"
GB3836.4-2010 "Explosive atmospheres Part 4: Equipment protected by intrinsically safe "i""
GB12358-2006 "General technical requirements for ambient gas detection and alarm devices in workplaces "
GB15322.3-2019 "Combustible Gas Detectors Part 3: Portable combustible Gas Detectors for industrial and commercial purposes"
JJG693-2011 "Calibration Regulations for Combustible Gas Detection and Alarm Devices"
JJG 365-2008 "Calibration Regulations for Electrochemical Oxygen Analyzers"
JJG695-2019 "Calibration Regulations for Hydrogen Sulfide Gas Detector"
JJG915-2008 "Calibration Regulations for Carbon Monoxide Detection Alarms"
Bosean BH-90M Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| range | 0~1000ppm (refer to the appendix - gas type selection table) |
| Resolution | 1 ppm (refer to the appendix - gas type selection table) |
| unit | PPM (depending on the type of gas) |
| Applicable gas | Appendix - Gas Type Selection Table |
| alarm point | It can be set manually, and the default alarm points for different gases are different. |
| Response time | T90<60s |
| Instruction method | LCD Real-time Data Display, System Status Light Emitting Diode Sound, Vibration Indication Alarm and Low Battery Prompt |
| Operating Environment | Temperature -10~55 ℃; Humidity < 95% RH No condensation |
| Operating Voltage | DC3.7V (carp battery) |
| Explosion-proof sign | Exib IIC T4 Gb |
| Charging time | 4~6h |
| Working time | Continuous use of not less than 8h |
| Sensors Life | 2 years (depending on the environment) |
| size | 114 * 60 * 43Mm (without Portable Accessories) |
| Weight | Up to 172g (without Portable Accessories) |
Bosean BH-90M Gas Detector Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
