Introduction
XY-100W series halogen moisture analyzer, full stainless steel mirror heating chamber, intermittent continuous heating, so that the sample is heated more evenly, the bottom is a precision cast aluminum shell, the top is imported materials, the heat resistance temperature reaches above 200 °, the sensor is imported from HBM , unique appearance design (patent number: ZL201430389248.2), can memorize multiple groups of drying processes. This Moisture Meter can be widely used in industries that require rapid moisture determination, such as food, grain, feed, seeds, rapeseed, tobacco, tea And in the production and experiment process in textile, agriculture, forestry, papermaking, rubber, textile and other industries. It is suitable for rapid market screening in farms, slaughterhouses, meat product deep-processing enterprises, inspection and quarantine units, and industrial and commercial quality supervision departments.
Features
The Moisture Meter adopts a metal shell, which is more stable
The temperature rises quickly during the test process, and the multi-layer stainless steel heating chamber effectively improves the heating efficiency and shortens the working time;
The temperature can be freely adjusted according to customer needs
Three heating and drying modes, easy to operate. The default heating program is one-key test operation.
Heating time can be freely set according to customer needs
LCD display with backlight is clear, and it can be equipped with a printer or connected with a computer.

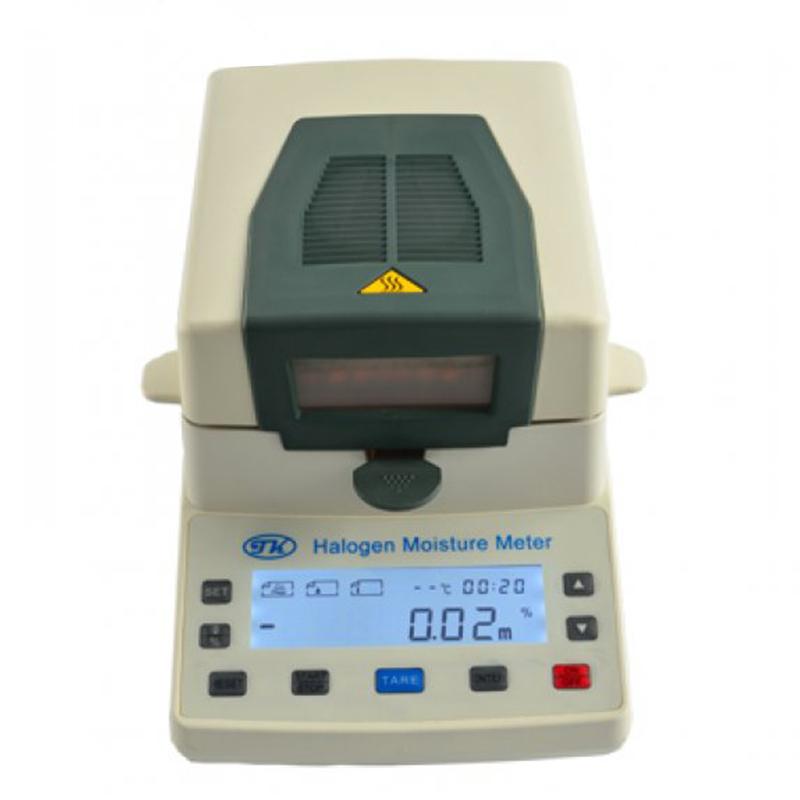

TSINGTAO TOKY XY-100W Halogen Moisture AnalyzerSpecifications
| LIST | VALUE |
|---|---|
| Maximum weighing value | 110g |
| Reading Accuracy | 0.001g |
| resolution | 0.01% |
| Display | LCD with backlight |
| Heating temperature range | RT+40~199℃ |
| Timer Range | 1~99min |
| Temperature regulation Accuracy | 1℃ |
| Heating mode | Standard heating mode, soft heating mode, fast heating mode |
| Determination end method | Automatic shutdown mode, manual shutdown mode, timed shutdown mode |
| Moisture Measurement Range | 0~100% |
| Pan size | Φ90mm |
| Calibrating method | Externally calibrated |
| Communication interface | Standard RS-232 interface |
| Dimensions | 200*180*380mm |
| heating source | Halogen lamp Halogen lamp |
| display parameters | Moisture and dry Weight content%, moisture content% |
| Power Supply | 220V 50HZ |
| Weight | 5.8KG |
| printer | Thermal paper type (optional) |
| power | 400W |
TSINGTAO TOKY XY-100W Halogen Moisture Analyzer Packing list
Host X1, operation manual, certificate of conformity, warranty card
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
