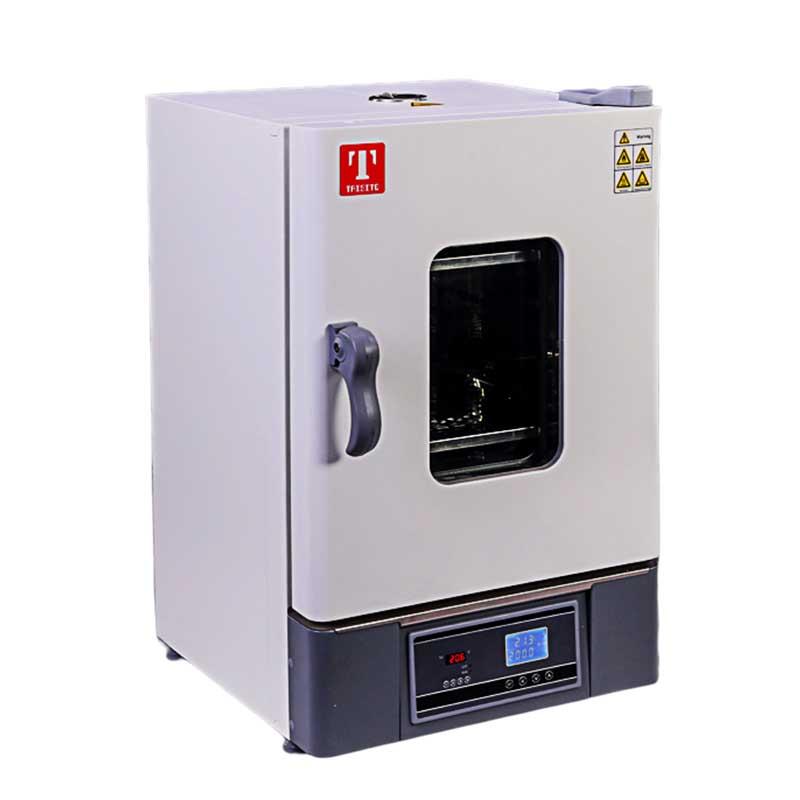

TAISITE WGL-125D digital Electric Forced Air Drying Oven capacity 125L
Temperature control 300 ℃, inner size 500 * 450 * 550mm, digital tube dual-row PID temperature control, touch four buttons to set, 4-digit digital display temperature value, support 11-layer Shelf, vertical double air duct air sleeve.
TaiSiTe
WGL-125D
-
MODERNER ZGX-6021 Vacuum Oven temperature control RT + 10~200 ℃
Login -
Kenton 101-4S pointer electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/640L
$ 1003.00 -
Kenton DZF-6090S thermostatic Vacuum Oven with 2L Vacuum Pump
$ 1484.00 -
HUITAI DHG-9030A Blast Drying Oven temperature control 250 ℃ Volume 30L with test hole 50mm
$ 403.00 -
HUITAI DZF-6020 Benchtop Vacuum oven 20L with intelligent program controller
$ 668.00
Features
Adopt PID intelligent temperature control, quickly reach the set value, and run stably.
Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.
Dedicated function keys for temperature setting.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.
A variable speed fan enables light, fine, powdery samples to be used.
Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.
Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.
Pull-out tray partition design scheme, convenient and quick to take and place samples.
The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable. (optional)
Overheating alarm, menu lock, overheating prevention. (optional)
Patent No
ZL201630486063.2
ZL201320059701.3
ZL201921000740.X
ZL201920940767.0
ZL201921001075.6
TaiSiTe WGL-125D Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| way | Double duct forced convection |
| Temperature range | RT+10~300°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±2.0% |
| Interior | Mirror stainless steel plate |
| Exterior | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| heater | Stainless steel heating tube |
| Rated power | 2.3KW |
| Exhaust port | Inner diameter 28mm * 1, top |
| Temperature Control mode | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Type D: Measured temperature display: 4-digit digital upper display; set temperature display: 4-digit digital lower display |
| Timer | 0~9999 minutes (with Timer and waiting function) |
| Run function | Fixed-value operation, regular operation, automatic stop, scheduled start |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Sensors | Pt100 |
| Inner size | 500 * 450 * 550mm (W * D * H) |
| Dimensions | 617 * 639 * 953mm (W * D * H) |
| Packing size | 742 * 718 * 1080mm (W * D * H) |
| Inner Volume | 125L |
| Shelf load bearing | 15kg |
| Shelf Layers | 11th floor |
| Shelf spacing | 40mm |
| Power | (50/60Hz) Rated current AC220V/10.5A |
TaiSiTe WGL-125D Electric Forced Air Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
