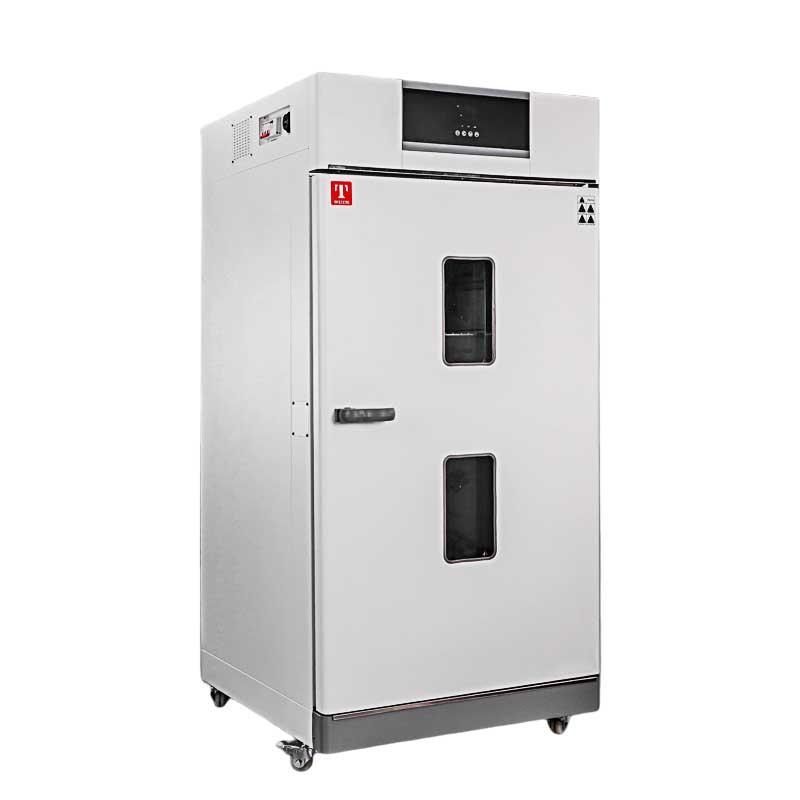

TAISITE WGL-625L Liquid crystal Electric Forced Air Drying Oven Volume 625L
Temperature control 300 ℃, inner size 660 * 760 * 1250mm, LCD dual-column PID temperature control, touch four buttons to set, LCD upper display temperature value, support 17 layers of Shelf, upper air duct rotary air supply.
TaiSiTe-
CHINA DHG-9145A Desktop Forced Air Drying Oven Temperature control Drying Oven 300 ℃
$ 521.00 -
HUITAI HTG-9140A vertical blower drying oven imported blower, volume 136L
$ 671.00 -
BOZHEN DHG-9030A Desktop Forced Air Drying Oven
$ 371.00 -
Kenton 101-1S pointer electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/70L
$ 389.00 -
SANFA DHG-9203J Precision thermostatic Drying Oven 200L
$ 1053.00
Features
Adopt PID intelligent temperature control, quickly reach the set value, and run stably.
Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.
Dedicated function keys for temperature setting.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.
A variable speed fan enables light, fine, powdery samples to be used.
Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.
Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.
Pull-out tray partition design scheme, convenient and quick to take and place samples.
The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable.
Overheating alarm, menu lock, overheating prevention.
L-shaped LCD multi-data full-screen operation display, power failure memory, power failure compensation.
Patent No
ZL201630486063.2
ZL201320059701.3
ZL201921000740.X
ZL201920940767.0
ZL201921001075.6
TaiSiTe WGL-625L Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Upper air duct rotary air supply |
| Temperature range | RT+10~300°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±2.0% |
| Chamber material | Mirror stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Rated power | 5.0KW |
| Exhaust port | Inner diameter 28mm * 2, top |
| thermostat | Liquid crystal dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | L type: measured temperature display: liquid crystal upper display; set temperature display: liquid crystal lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed-value operation, regular operation, automatic stop, scheduled start |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer, constant speed fan |
| Temperature sensor | pt100 |
| Interior size | 660760*1250mm |
| Dimensions | 900 * 960 * 1840mm (W * D * H) |
| Packing size | 1051*1060*1949mm |
| Volume | 625L |
| Shelf load bearing | 15kg |
| Shelf Layers | 7th floor |
| Shelf spacing | 150mm |
| Power | (50/60Hz) Rated current AC380V/7.6A |
| Optional accessories | Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature control, wireless SMS alarm, U disk data storage |
TaiSiTe WGL-625L Electric Forced Air Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
- ActiveSL 144.7-2008
- ActiveGB/T 9995-1997
- ActiveGB/T 6102.1-2006
- ActiveGB/T 6978-2007
- ActiveGB/T 10514-2012
- ActiveGB/T 24131.1-2018
- ActiveGB/T 30648.5-2015
- SL/T 144.7-2008
- ActiveGB/T 32710.10-2016


WGL-625L
