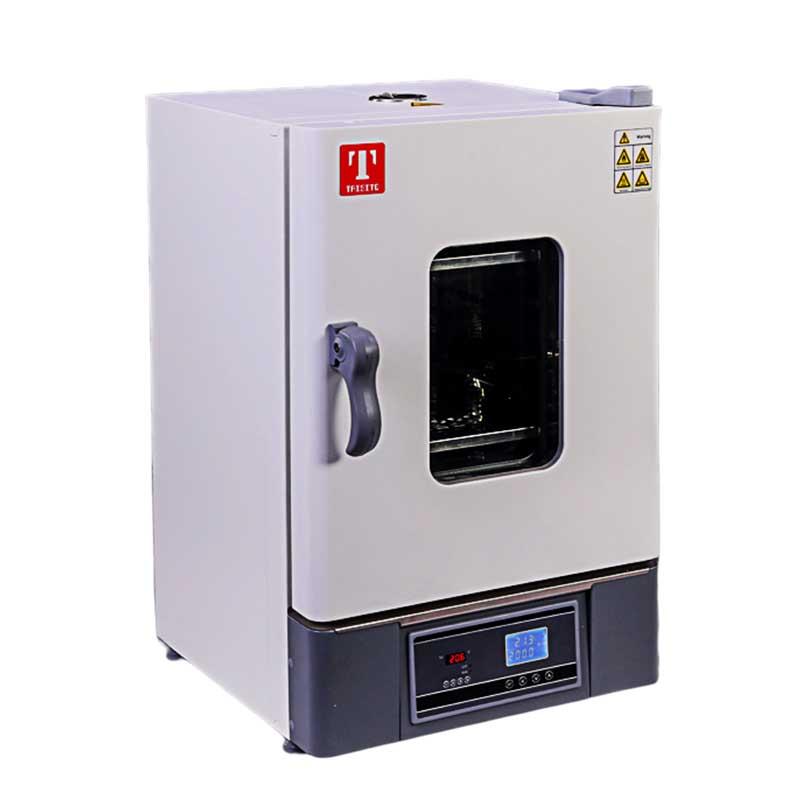

TAISITE WGL-85T touch screen Electric Forced Air Drying Oven capacity 85L
Temperature control 300 ℃, inner size 450 * 450 * 450mm, 5-inch color touch screen fuzzy PID temperature control, touch screen setting temperature, support program mode and over-rise alarm, vertical double air duct air sleeve.
TaiSiTe-
YIHENG DHG-9920A Vertical Forced Air Drying Oven Volume 1000L Temperature control: 10~200 ℃
$ 3458.00 -
Kenton DZF-3090S thermostatic Vacuum Oven with independent temperature control for each layer, including 2L Vacuum Pump
$ 2650.00 -
RONGHUA DZF-6051 Vacuum Oven capacity 53L
$ 601.00 -
SANFA DHG-9202-3A Electric thermostatic Drying Oven 300 ℃/225L stainless steel
$ 700.00 -
HUITAI HHG-9078A Laboratory high temperature oven volume 70L with test hole 50mm
$ 734.00
Features
Adopt PID intelligent temperature control, quickly reach the set value, and run stably.
Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.
Dedicated function keys for temperature setting.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.
A variable speed fan enables light, fine, powdery samples to be used.
Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.
Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.
Pull-out tray partition design scheme, convenient and quick to take and place samples.
The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable.
Overheating alarm, menu lock, overheating prevention.
Patent No
ZL201630486063.2
ZL201320059701.3
ZL201921000740.X
ZL201920940767.0
ZL201921001075.6
TaiSiTe WGL-85T Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Double duct forced convection |
| Temperature range | RT+10~300°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±2.0% |
| Chamber material | Mirror stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Rated power | 1.8KW |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | 5-Inch color touch screen fuzzy PID |
| Temperature setting | Touch screen settings |
| Temperature representation | T type: measured temperature display: touch screen upper display; set temperature display: touch screen lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed-value operation, regular operation, automatic stop, scheduled start |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power failure compensation, power failure memory, overlift preventer, L. T type speed regulating fan |
| Temperature sensor | pt100 |
| Interior size | 450*450*450mm |
| Dimensions | 567 * 640 * 853mm (W * D * H) |
| Packing size | 692*718*980mm |
| Volume | 85L |
| Shelf load bearing | 15kg |
| Shelf Layers | 8th floor |
| Shelf spacing | 40mm |
| Power | (50/60Hz) Rated current AC220V/8.2A |
| Optional accessories | Shelf, printer, recorder, external communication, remote control, program temperature Controller, wireless SMS alarm, U disk data storage |
| RS485 interface | Yes. |
TaiSiTe WGL-85T Electric Forced Air Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
