TAISITE WGL-125T touch screen Electric Forced Air Drying Oven volume 125L
Temperature control 300 ℃, inner size 500 * 450 * 550mm, 5-inch color touch screen fuzzy PID temperature control, touch screen setting temperature, support program mode and over-rise alarm, vertical double air duct air sleeve.
TaiSiTe-
HUITAI HTZ-6050L vacuum degree digital drying oven vacuum drying oven volume 50L
$ 1594.00 -
HUITAI HHG-9249A High temperature blast drying oven Volume 240L
$ 1973.00 -
HUITAI HTZ-6210L vacuum digital display oven vacuum drying oven volume 210L
$ 5056.00 -
YIHENG GRX-9073A Laboratory Hot Air Sterilizer, LCD Power 1550W
$ 689.00 -
Kenton 101-2AS digital display electric Forced Air Drying Oven, stainless steel inner tank 300 ℃/136L
$ 512.00
Features
Adopt PID intelligent temperature control, quickly reach the set value, and run stably.
Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.
Dedicated function keys for temperature setting.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.
A variable speed fan enables light, fine, powdery samples to be used.
Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.
Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.
Pull-out tray partition design scheme, convenient and quick to take and place samples.
The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable.
Overheating alarm, menu lock, overheating prevention.
Patent No
ZL201630486063.2
ZL201320059701.3
ZL201921000740.X
ZL201920940767.0
ZL201921001075.6

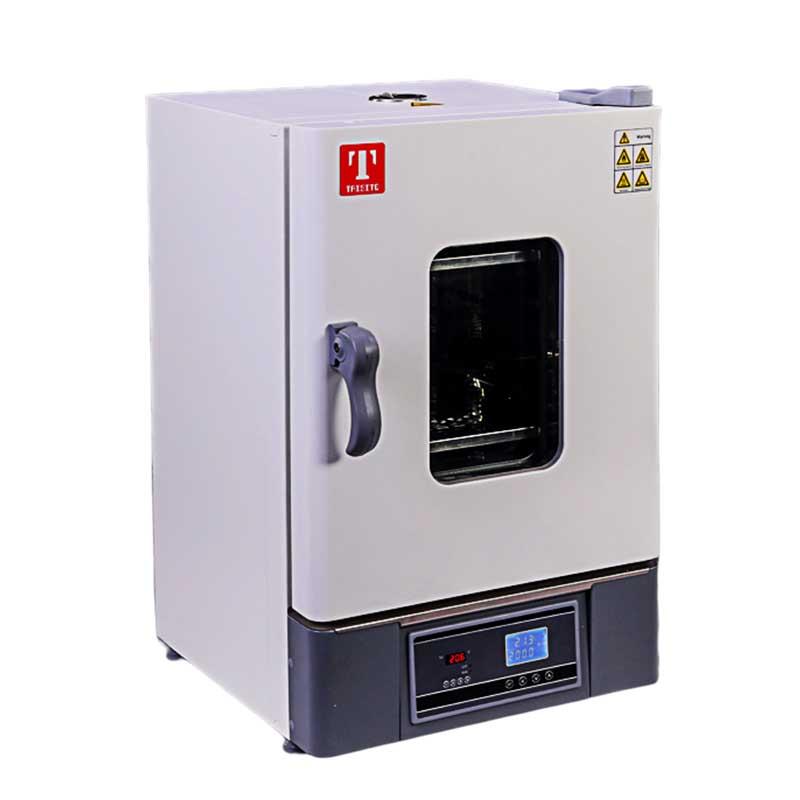

TaiSiTe WGL-125T Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Convection mode | Double duct forced convection |
| Temperature range | RT+10~300°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±2.0% |
| Chamber material | Mirror stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Rated power | 2.3KW |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | 5-Inch color touch screen fuzzy PID |
| Temperature setting | Touch screen settings |
| Temperature representation | T type: measured temperature display: touch screen upper display; set temperature display: touch screen lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed-value operation, regular operation, automatic stop, scheduled start |
| Program Mode | optional |
| Additional features | Deviation correction, menu button lock, power failure compensation, power failure memory, overlift preventer, L. T type speed regulating fan |
| Temperature sensor | pt100 |
| Interior size | 500*450*550mm |
| Dimensions | 617 * 639 * 953mm (W * D * H) |
| Packing size | 742*718*1080mm |
| Volume | 125L |
| Shelf load bearing | 15kg |
| Shelf Layers | 11th floor |
| Shelf spacing | 40mm |
| Power | (50/60Hz) Rated current AC220V/10.5A |
| Optional accessories | Shelf, printer, recorder, external communication, remote control, program temperature Controller, wireless SMS alarm, U disk data storage |
| RS485 interface | Yes. |
TaiSiTe WGL-125T Electric Forced Air Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
