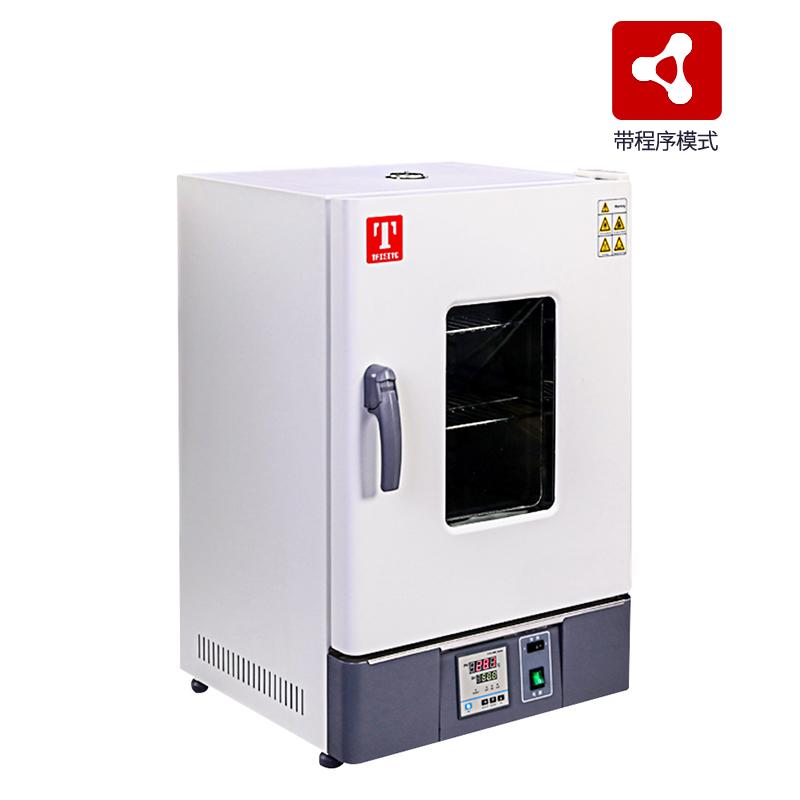

TAISITE WHL-45B Vertical electric thermostatic oven programmable type 300 ℃/45L
The temperature control reaches 300 ℃, the content volume is 45L, and the maximum can be placed on 7 shelves. The thermostat digital tube has dual-row PID temperature control, with timing and over-rise alarm functions.
TaiSiTe
WHL-45B (with program mode)
-
BENTING CBX230B Hot Air Disinfection Box 3.0kw/230L
Login -
HUITAI DHG-9140A High temperature electric blast oven temperature control 250 ℃ Volume 136L with test hole 50mm
$ 610.00 -
HUITAI GRX-9123A Dry Baking Autoclave Volume 136L
Login -
BOZHEN DGG-9146A vertical Forced Air Drying Oven electric blast oven 136L/300 ℃
$ 647.00 -
CHINA DHG-9070BE vertical Forced Air Drying Oven electric thermostatic heating box 300 ℃/72L
$ 515.00
Benefits:
Advantages: High precision, effectiveness, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Detail design advantages
Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.
Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Fig. 3, exhaust hole: multi-functional exhaust hole design
Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.
Parameter comparison
| Model | Rated power | Content volume | |
| WHL-30B/WHLL-30BE | 0.8KW | 30L | |
| WHL-45B/WHLL-45BE | 1.0KW | 45L | |
| WHL-65B/WHLL-65BE | 1.5KW | 65L | |
| WHL-125B/WHLL-125BE | 2.5KW | 125L | |
| Other parameters | |||
| Convection mode | Natural convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1.0℃ | ||
| Temperature distribution accuracy | ±3.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| heater | Nichrome heating wire OCr27A17Mo2 | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | ||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| power supply | AC220V/3.6A 50/60Hz | ||
TaiSiTe WHL-45B (with program mode) Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5％ |
| Volume | 45L |
| Interior size | 350*350*350mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 7pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/5.5A 50/60Hz |
| Input Power | 1.0Kw |
| Dimensions | 485*480*730mm |
| Net Weight | 37kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Packing size | 600*600*857mm |
| Shelf spacing | 35mm |
| Gross Weight | 43Kg |
| Safety Devices | Overrise alarm |
| Convection mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe WHL-45B (with program mode) Electric thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
