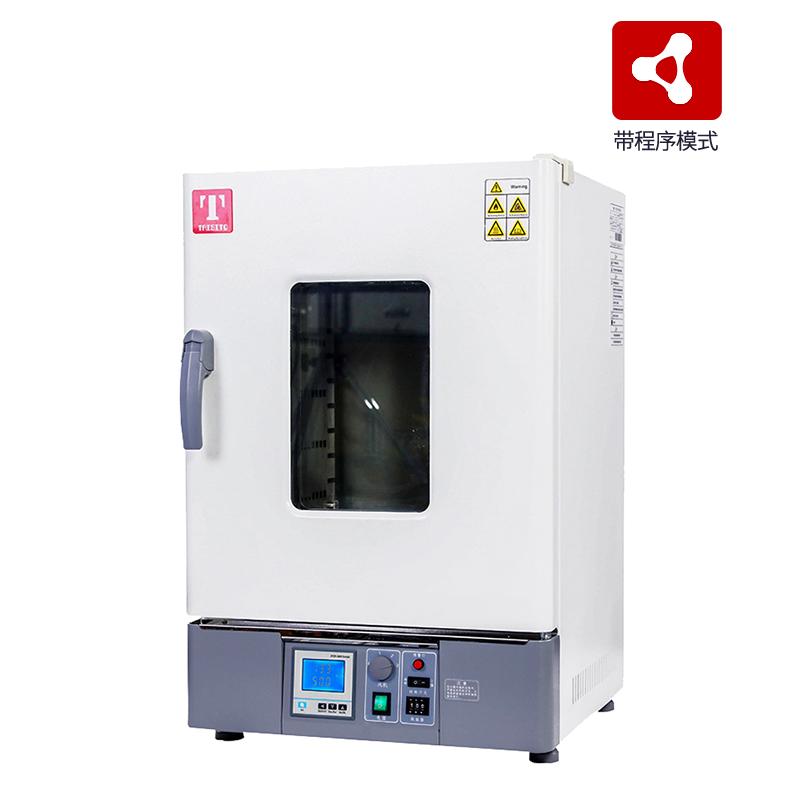

TAISITE GP-30BE drying/foster dual-use box, program-controlled type 30L
Adopt double air duct forced convection mode, adopt liquid crystal dual row PID temperature control, fluctuation foster +/- 0.5 ℃, drying +/- 1 ℃, set drying, baking, wax, heat treatment and bacterial foster in one.
TaiSiTe
GP-30BE (with program mode)
-
RONGHUA DZF-6051 Vacuum Oven capacity 53L
$ 601.00 -
HUITAI HTG-9070A Vertical Blast Drying Oven volume 80L water analysis/BOD determination
$ 512.00 -
SANFA DHG-9101-1A Electrothermal thermostatic Drying Oven 70L/stainless steel
$ 433.00 -
Kenton 101-2S Dial-Type electric Forced Air Drying Oven, stainless steel 101 oven 300 ℃/136L
$ 490.00 -
BENTING C202-2AB electric thermostatic Drying Oven 250 ℃/136L
Login
Benefits:
Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
LCD multi-data full-screen operation display, power failure memory, power failure compensation
Overlift preventer
Detail design advantages
Figure 1: Heating curve: time unit: minutes, temperature unit: °C
Figure 2,Multi-functionalAble to control the panel
Figure 1 Figure 2
Parameter comparison
| Model | heater | Content volume | Number of partition layers |
| GP-30B/BE | Stainless steel heating tubes | 30L | 6 floors |
| GP-45B/BE | Stainless steel heating tubes | 45L | 7 floors |
| GP-65B/BE | Stainless steel heating tubes | 65L | 9 floors |
| GP-125B/BE | Stainless steel heating tubes | 125L | 13 floors |
| GP-230B/BE | Nichrome heating wire | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | Incubation RT+5~80°C and drying 80~250°C | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | Incubation ± 0.5 °C dry ± 1 °C | ||
| Temperature distribution accuracy | Incubation± 1.0 °C dry ± 2.5% | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Exhaust outlets | Inner diameter 28mm*1, top | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | (GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
TaiSiTe GP-30BE (with program mode) Drying/fostering dual-use boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Foster: RT + 5~ 80 ℃; drying: 80~250 ℃ |
| Temperature Fluctuation | A.±0.5℃；B.±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | Foster +/- 1.0 ℃; drying +/- 2.5% |
| Volume | 30L |
| Interior size | 310*310*310mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 6pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/3.6A 50/60Hz |
| Input Power | Foster: 0.3Kw; drying: 0.8Kw |
| Dimensions | 445*440*690mm |
| Net Weight | 32kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Liquid crystal dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed regulating fan, overlift preventer |
| Temperature sensor | pt100 |
| Packing size | 560*560*830mm |
| Shelf spacing | 35mm |
| Gross Weight | 37Kg |
| Safety Devices | Overlift alarm, overlift preventer |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GP-30BE (with program mode) Drying/fostering dual-use box Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
