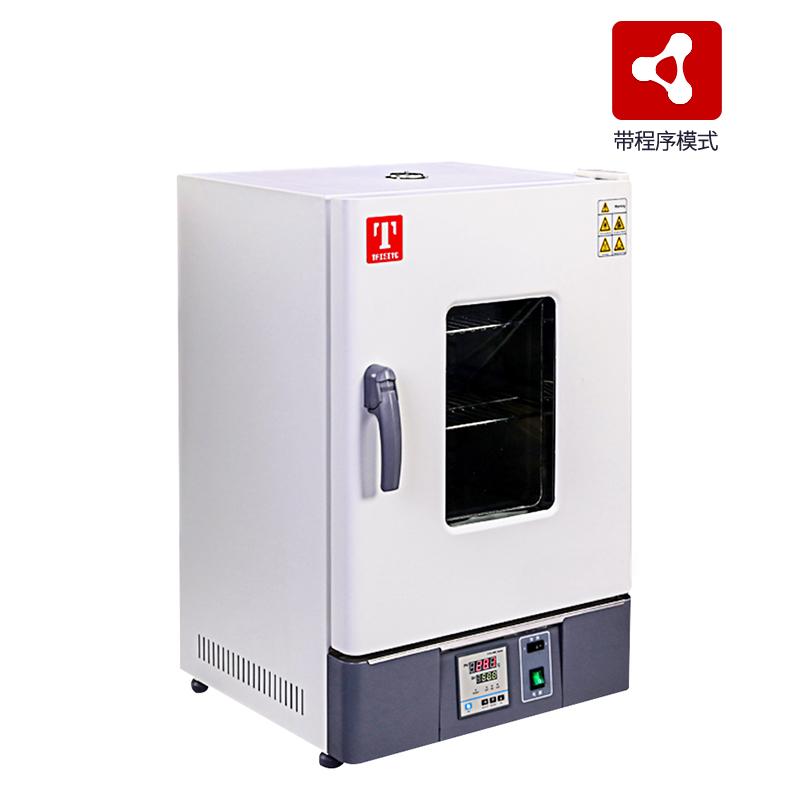

TAISITE WHLL-125BE Vertical electric thermostatic Drying Oven program-controlled type 300 ℃/125L
Liquid crystal dual-row PID temperature control, with timing and over-rise alarm function, Temperature range RT + 10~300 ℃, Interior size 500 * 450 * 550mm, with 13 layers of Shelf.
TaiSiTe
WHLL-125BE (with program mode)
-
HUITAI DHG-9030A Blast Drying Oven temperature control 250 ℃ Volume 30L with test hole 50mm
$ 403.00 -
Kenton KH-75T digital electric air blowing dryer 250 ℃/228L
$ 1328.00 -
Kenton KH-35A digital electric air blowing dryer 250 ℃/42L
$ 290.00 -
HUITAI DHG-9075A high temperature blast drying oven volume 80L temperature control 300 ℃ with test hole 50mm
$ 515.00 -
YIHENG DHG-9245A Desktop Forced Air Drying Oven Input Power 2450W
$ 863.00
Benefits:
Advantages: High precision, effectiveness, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Detail design advantages
Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.
Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Fig. 3, exhaust hole: multi-functional exhaust hole design
Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.
Parameter comparison
| Model | Rated power | Content volume | |
| WHL-30B/WHLL-30BE | 0.8KW | 30L | |
| WHL-45B/WHLL-45BE | 1.0KW | 45L | |
| WHL-65B/WHLL-65BE | 1.5KW | 65L | |
| WHL-125B/WHLL-125BE | 2.5KW | 125L | |
| Other parameters | |||
| Convection mode | Natural convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1.0℃ | ||
| Temperature distribution accuracy | ±3.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| heater | Nichrome heating wire OCr27A17Mo2 | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | ||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| power supply | AC220V/3.6A 50/60Hz | ||
TaiSiTe WHLL-125BE (with program mode) Electric thermostatic Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5％ |
| Volume | 125L |
| Interior size | 500*450*550mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 13pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/11.4A 50/60Hz |
| Input Power | 2.5Kw |
| Dimensions | 636*580*930mm |
| Net Weight | 60kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Exhaust port | Inner diameter 28mm * 2, top |
| thermostat | Liquid crystal dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer |
| Temperature sensor | pt100 |
| Packing size | 760*700*1060mm |
| Shelf spacing | 35mm |
| Gross Weight | 66Kg |
| Safety Devices | Overlift alarm, overlift preventer |
| Convection mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf | 4 pieces |
TaiSiTe WHLL-125BE (with program mode) Electric thermostatic Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
