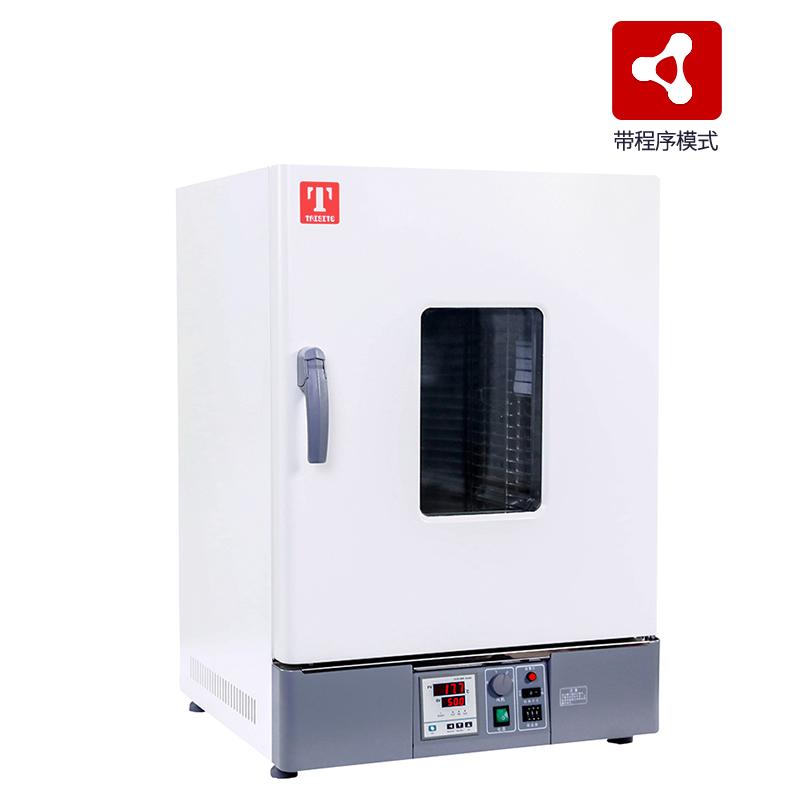

TAISITE GP-45B drying/foster dual-use box, programmable type 45L
Double air duct forced convection method, Interior size 350 * 350 * 350mm, digital tube double row PID temperature control, foster temperature RT + 5~ 80 ℃, drying temperature 80~250 ℃, built-in 7 layers Shelf.
TaiSiTe
GP-45B (with program mode)
-
CHINA DGG-9240A Desktop Forced Air Drying Oven heater Drying Oven 200 ℃/225L
$ 559.00 -
HUITAI DHG-9050A Precision blast Drying Oven temperature control 250 ℃ Volume 50L with test hole 50mm
$ 448.00 -
SANFA DHG-9202-0 Electric thermostatic Drying Oven 300 ℃/43L
$ 332.00 -
MODERNER ZGX-6090 Desktop Vacuum Oven temperature control RT + 10~250 ℃
Login -
HUITAI DZF-6210 Vacuum oven with vacuum pump, heated within 210L
$ 3609.00
Benefits:
Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Detail design advantages
Figure 1: Heating curve: time unit: minutes, temperature unit: °C
Figure 2,Multi-functionalAble to control the panel
Figure 1 Figure 2
Parameter comparison
| Model | heater | Content volume | Number of partition layers |
| GP-30B/BE | Stainless steel heating tubes | 30L | 6 floors |
| GP-45B/BE | Stainless steel heating tubes | 45L | 7 floors |
| GP-65B/BE | Stainless steel heating tubes | 65L | 9 floors |
| GP-125B/BE | Stainless steel heating tubes | 125L | 13 floors |
| GP-230B/BE | Nichrome heating wire | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | Incubation RT+5~80°C and drying 80~250°C | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | Incubation ± 0.5 °C dry ± 1 °C | ||
| Temperature distribution accuracy | Incubation± 1.0 °C dry ± 2.5% | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Exhaust outlets | Inner diameter 28mm*1, top | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | (GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
TaiSiTe GP-45B (with program mode) Drying/fostering dual-use boxSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Foster: RT + 5~ 80 ℃; drying: 80~250 ℃ |
| Temperature Fluctuation | A.±0.5℃；B.±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | Foster +/- 1.0 ℃; drying +/- 2.5% |
| Volume | 45L |
| Interior size | 350*350*350mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 7pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/5.5A 50/60Hz |
| Input Power | Foster: 0.3Kw; drying: 1.2Kw |
| Dimensions | 485*480*730mm |
| Net Weight | 37kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan |
| Temperature sensor | pt100 |
| Packing size | 600*600*857mm |
| Shelf spacing | 35mm |
| Gross Weight | 43Kg |
| Safety Devices | Overrise alarm |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GP-45B (with program mode) Drying/fostering dual-use box Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
