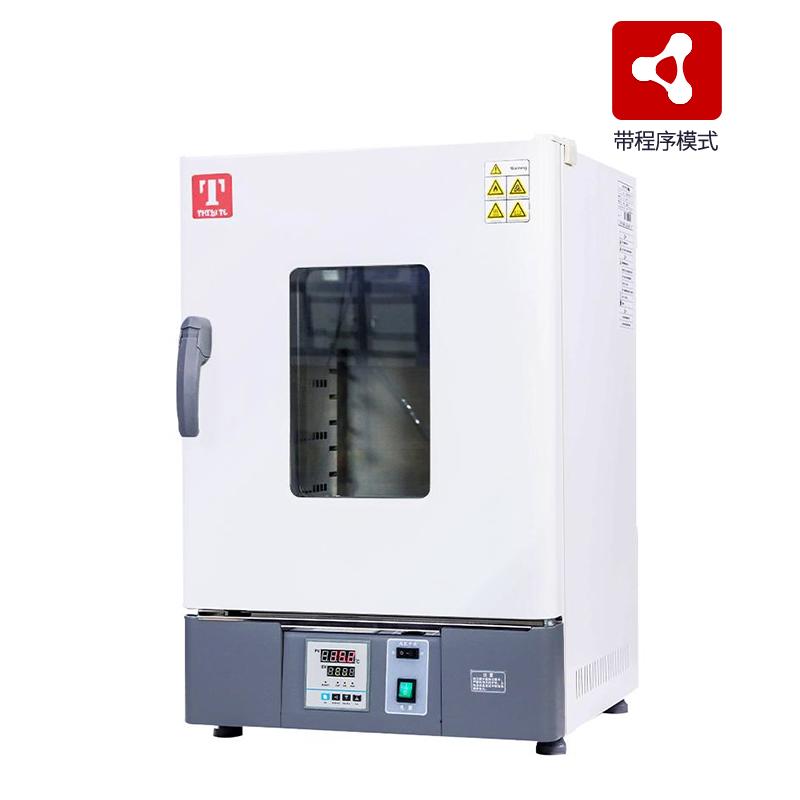

TAISITE GX125B Desktop Hot Air Sterilizer, Program Controlled 300 ℃/125L
Program multi-stage temperature control, double air duct forced convection, studio volume 126L, size 500 * 450 * 550mm, built-in 13-layer Shelf, with timing and fixed value operation function.
TaiSiTe
GX125B (with program mode)
-
SANFA HP-240A Drying Oven/Incubator (dual-use)
$ 935.00 -
HUITAI PH-070A dry culture dual-use box, volume 70L
Login -
YIHENG DHG-9070A Desktop Forced Air Drying Oven capacity is 80L Power 1550W
$ 532.00 -
Kenton KH-55T digital electric air blowing dryer 250 ℃/136L
$ 916.00 -
HUITAI DZF-6050 Vacuum Oven volume 50L with intelligent program controller
$ 846.00
Benefits:
Rapid, safe and reliable sterilization.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Detail design advantages
Figure 1LCD multi-data control panel:Multi-data full-screen operation, power failure memory, power failure compensation (BE model).
Figure 2, multi-functional safety lock: safe and secure.
Figure 3,Furnace temperatureDegree Rise Chart:The temperature rise curve is professional because it is accurate.
Figure 4,partitionThermal Safety Door:It is not hot to stand around the instrument at work.
Fig.1 Fig.2 Fig.3 Fig.4
Parameter comparison
| Model | Rated power | Content volume | Number of partition layers |
| GX30B/GX30BE | 0.8KW | 30L | 6 floors |
| GX45B/GX45BE | 1.2KW | 45L | 7 floors |
| GX65B/GX65BE | 1.6KW | 65L | 9 floors |
| GX125B/GX125BE | 2.3KW | 125L | 13 floors |
| GX230B/GX230BE | 3KW | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1℃ | ||
| Temperature distribution accuracy | ±2.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurable (GXBE type) | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
| power supply | AC 220V 50/60Hz | ||
TaiSiTe GX125B (with program mode) Hot air sterilizerSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5％ |
| Volume | 125L |
| Interior size | 500*450*550mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 13pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/10.5A 50/60Hz |
| Input Power | 2.3Kw |
| Dimensions | 636*580*930mm |
| Net Weight | 60kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan |
| Temperature sensor | pt100 |
| Packing size | 760*700*1060mm |
| Shelf spacing | 35mm |
| Gross Weight | 66Kg |
| Safety Devices | Overrise alarm |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GX125B (with program mode) Hot air sterilizer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
