TAISITE GX65BE dry-baked sterilizing box, program-controlled type 300 ℃/65L
Functional hot air disinfection box, program temperature control RT + 10~300 ℃, shelves (max) 9 layers, volume 65L, Interior size 400 * 360 * 450mm.
TaiSiTe
GX65BE (with program mode)
-
YIHENG DZF-6930 Vertical Vacuum Oven (microcomputer with timing)
$ 12807.00 -
BENTING CBX45B Hot Air Disinfection Box 1.2kw/45L
Login -
HUITAI HHG-9249A High temperature blast drying oven Volume 240L
$ 1973.00 -
BOZHEN 766-3A Far infrared Drying Oven
$ 377.00 -
BOZHEN DHG-9125A Desktop Forced Air Drying Oven
$ 647.00
Benefits:
Rapid, safe and reliable sterilization.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Functional: LCD multi-data full-screen operation display, power failure memory, power failure compensation.
It has an overlift preventer.
Detail design advantages
Figure 1LCD multi-data control panel:Multi-data full-screen operation, power failure memory, power failure compensation (BE model).
Figure 2, multi-functional safety lock: safe and secure.
Figure 3,Furnace temperatureDegree Rise Chart:The temperature rise curve is professional because it is accurate.
Figure 4,partitionThermal Safety Door:It is not hot to stand around the instrument at work.
Fig.1 Fig.2 Fig.3 Fig.4
Parameter comparison
| Model | Rated power | Content volume | Number of partition layers |
| GX30B/GX30BE | 0.8KW | 30L | 6 floors |
| GX45B/GX45BE | 1.2KW | 45L | 7 floors |
| GX65B/GX65BE | 1.6KW | 65L | 9 floors |
| GX125B/GX125BE | 2.3KW | 125L | 13 floors |
| GX230B/GX230BE | 3KW | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | RT+10～300℃ | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | ±1℃ | ||
| Temperature distribution accuracy | ±2.5％ | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurable (GXBE type) | Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
| power supply | AC 220V 50/60Hz | ||

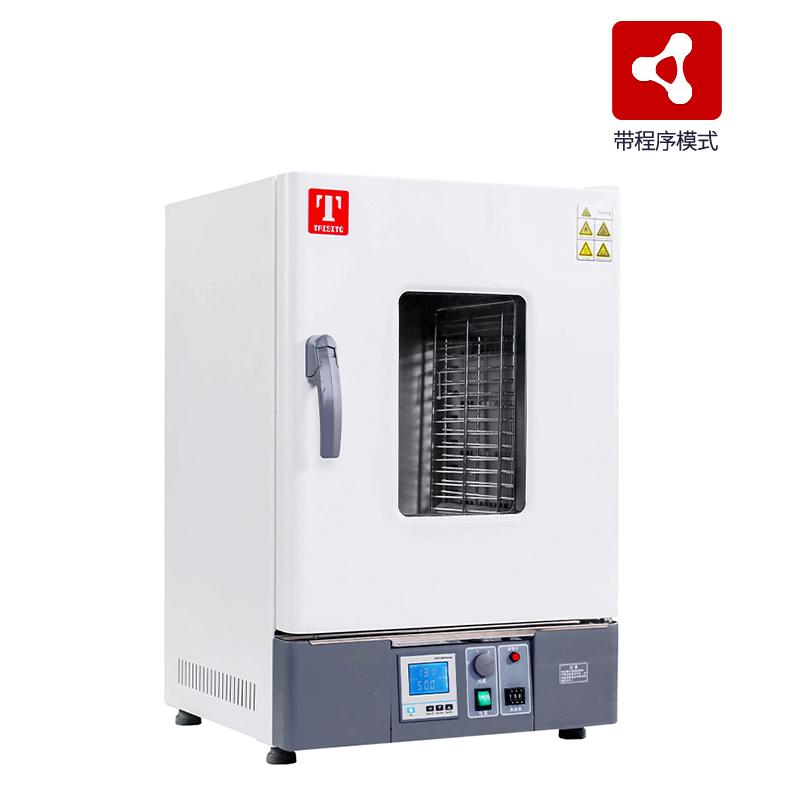

TaiSiTe GX65BE (with program mode) Hot air sterilizerSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5％ |
| Volume | 65L |
| Interior size | 400*360*450mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 9pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/7.2A 50/60Hz |
| Input Power | 1.6Kw |
| Dimensions | 535*490*820mm |
| Net Weight | 43kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Liquid crystal dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory, speed regulating fan, overlift preventer |
| Temperature sensor | pt100 |
| Packing size | 670*620*960mm |
| Shelf spacing | 35mm |
| Gross Weight | 49Kg |
| Safety Devices | Overlift alarm, overlift preventer |
| Convection mode | Double duct forced convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
TaiSiTe GX65BE (with program mode) Hot air sterilizer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
