TAISITE DZ-2BCIV Experimental Vacuum Oven controlled type 250 ℃/52L
Program temperature control, using stainless steel material studio, size is 415 * 370 * 340mm, Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 1 ℃, built-in two shelves, shelf spacing 140mm.
TaiSiTe
DZ-2BCIV (with program mode)
-
Huitai HHG-9148A high temperature Forced Air Drying Oven, volume 140L
$ 1083.00 -
YIHENG DHG-9140A Forced Air Drying Oven Power 2050W Volume 136L
$ 674.00 -
SANFA DHG-9070 Electric thermostatic Drying Oven 70L
$ 388.00 -
YIHENG BPZ-6033LCB Vacuum Oven imported Vacuumpump
$ 3174.00 -
MODERNER GFX-9055A Forced Air Drying Oven 50L
Login
Introduction
It is specially designed for drying heat-sensitive, easily decomposing, and oxidizing substances, and can be filled with inert gas.
Benefits:
PID thermostat, accurate temperature control.
Adjustable door lock, self-adaptive observation window frame, one-time molding silicone sealing strip to ensure long-term stable sealing.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Detail design advantages

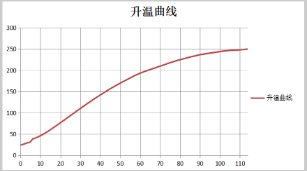

Figure 1Temperature rise graph: time unit: minutes, temperature unit: °C.
Fig. 2, thickened partition and heat-insulating glass: independent thickened detachable partition, thickened heat-insulating glass design, comfortable experiment.

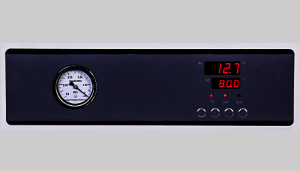

Figure 3,Multi-function control panel.
Fig.1 Fig.2 Fig.3
Parameter comparison
| Model | Heating time | Built-in | Rated power | Content volume |
| DZ-1AIV | 80min | carbon steel | 0.8KW | 24L |
| DZ-1BCIV | 80min | stainless steel | 0.8KW | 24L |
| DZ-2AIV | 100min | carbon steel | 1.4KW | 52L |
| DZ-2BCIV | 100min | stainless steel | 1.4KW | 52L |
| DZ-3AIV | 120min | carbon steel | 2.0KW | 91L |
| DZ-3BCIV | 120min | stainless steel | 2.0KW | 91L |
| Other parameters | ||||
| manner | Decompression, four-wall heating | |||
| Operating temperature range | RT+10～250℃ | |||
| Use the vacuum range | ﹤133PA | |||
| Temperature resolution | 0.1℃ | |||
| Temperature fluctuations | ±1 ℃ | |||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | |||
| Insulating materials | Aluminum silicate fiber | |||
| heater | Stainless steel heating pipes are heated on all sides | |||
| Observation window | Bulletproof tempered glass | |||
| Vacuum gauge | Pointer | |||
| Temperature control method | Digital tube double row PID | |||
| Temperature setting method | Tap the four buttons to set it | |||
| Temperature representation | Measured temperature display: 4-digit digital upper display, set temperature display: 3-4-digit digital lower display | |||
| timer | 0~9999min (with timing waiting function) | |||
| Run the function | Fixed-value operation, timed operation, automatic stop | |||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | |||
| Additional features | Deviation correction, menu key locking, power failure compensation, power failure memory | |||
| sensor | pt100 | |||
| Safety devices | Overlift alarm | |||
| Number of partition layers | 2 floors | |||
| Inhalation port | Φ12mm | |||
| Exhaust outlets | Φ12mm | |||
| Configurations can be added | Partitions, Vacuum Pumps, Recorders | |||
TaiSiTe DZ-2BCIV (with program mode) Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250°C |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5％ |
| Volume | 52L |
| Interior size | 415*370*340mm |
| Chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Shelves (max) | 2pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/6.3A 50/60Hz |
| Input Power | 1.4Kw |
| Dimensions | 560*540*680mm |
| Net Weight | 67kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube 4-sided heating |
| Exhaust port | F12mm |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 3-4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Packing size | 734*675*800mm |
| Shelf spacing | 140mm |
| Gross Weight | 92Kg |
| Safety Devices | Overrise alarm |
| Heating mode | Decompression, four-wall heating |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
| vacuum | <133Pa |
| Heating rate | 100min |
| Viewing Window | Bulletproof Tempered Glass |
| Vacuum Meter | Pointer |
| suction port | F12mm |
TaiSiTe DZ-2BCIV (with program mode) Vacuum Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
