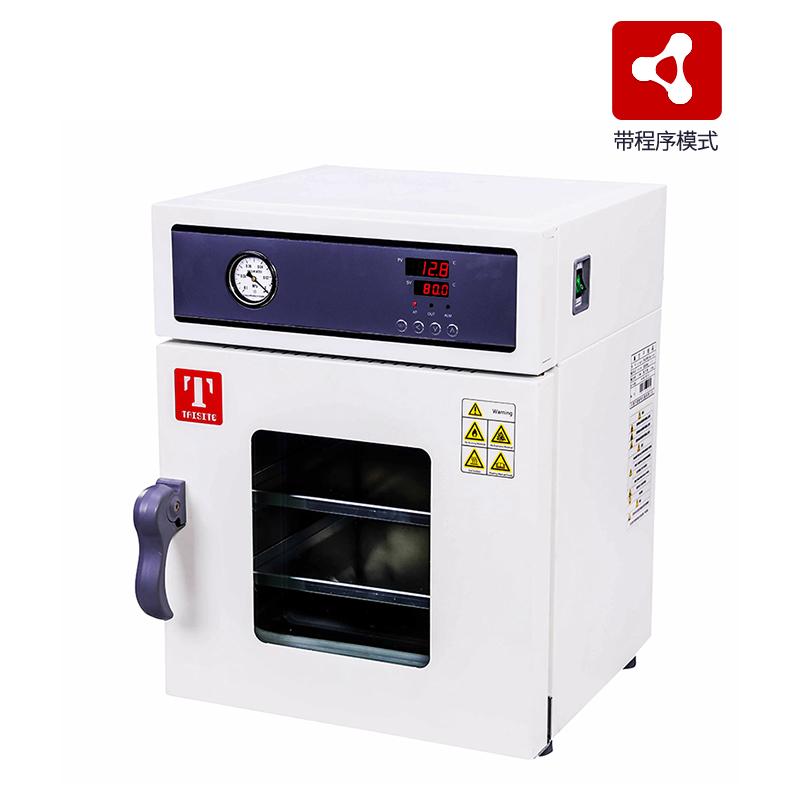

TAISITE DZ-3BCIV Vacuum Oven 250 ℃/91L
Multi-stage program temperature control, Temperature Fluctuation +/- 1 ℃, Interior size 450 * 450 * 450mm, Stainless steel Chamber material, with adjustable door lock, adaptive observation window frame, with over-rise alarm function, Heating time is 120 minutes.
TaiSiTe
DZ-3BCIV (with program mode)
-
CHINA DHG-9030AE vertical Forced Air Drying Oven 650W
$ 380.00 -
Kenton 101-0AS digital display electric Forced Air Drying Oven, stainless steel inner tank 101 oven 300 ℃/43L
$ 349.00 -
Kenton KH-35A electric air blowing dryer 42L with independent temperature limiter
$ 312.00 -
YIHENG BPG-9056A Precision Forced Air Drying Oven Input Power is 750W
$ 623.00 -
YIHENG BPZ-6213 Vacuum oven vacuum heat treatment equipment for electronic products
$ 4826.00
Introduction
It is specially designed for drying heat-sensitive, easily decomposing, and oxidizing substances, and can be filled with inert gas.
Benefits:
PID thermostat, accurate temperature control.
Adjustable door lock, self-adaptive observation window frame, one-time molding silicone sealing strip to ensure long-term stable sealing.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Detail design advantages
Figure 1Temperature rise graph: time unit: minutes, temperature unit: °C.
Fig. 2, thickened partition and heat-insulating glass: independent thickened detachable partition, thickened heat-insulating glass design, comfortable experiment.
Figure 3,Multi-function control panel.
Fig.1 Fig.2 Fig.3
Parameter comparison
| Model | Heating time | Built-in | Rated power | Content volume |
| DZ-1AIV | 80min | carbon steel | 0.8KW | 24L |
| DZ-1BCIV | 80min | stainless steel | 0.8KW | 24L |
| DZ-2AIV | 100min | carbon steel | 1.4KW | 52L |
| DZ-2BCIV | 100min | stainless steel | 1.4KW | 52L |
| DZ-3AIV | 120min | carbon steel | 2.0KW | 91L |
| DZ-3BCIV | 120min | stainless steel | 2.0KW | 91L |
| Other parameters | ||||
| manner | Decompression, four-wall heating | |||
| Operating temperature range | RT+10～250℃ | |||
| Use the vacuum range | ﹤133PA | |||
| Temperature resolution | 0.1℃ | |||
| Temperature fluctuations | ±1 ℃ | |||
| Exterior | Cold-rolled steel plate, surface resistant coating | |||
| Insulating materials | Aluminum silicate fiber | |||
| heater | Stainless steel heating pipes are heated on all sides | |||
| Observation window | Bulletproof tempered glass | |||
| Vacuum gauge | Pointer | |||
| Temperature control method | Digital tube double row PID | |||
| Temperature setting method | Tap the four buttons to set it | |||
| Temperature representation | Measured temperature display: 4-digit digital upper display, set temperature display: 3-4-digit digital lower display | |||
| timer | 0~9999min (with timing waiting function) | |||
| Run the function | Fixed-value operation, timed operation, automatic stop | |||
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | |||
| Additional features | Deviation correction, menu key locking, power failure compensation, power failure memory | |||
| sensor | pt100 | |||
| Safety devices | Overlift alarm | |||
| Number of partition layers | 2 floors | |||
| Inhalation port | Φ12mm | |||
| Exhaust outlets | Φ12mm | |||
| Configurations can be added | Partitions, Vacuum Pumps, Recorders | |||
TaiSiTe DZ-3BCIV (with program mode) Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~250°C |
| Temperature Fluctuation | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5％ |
| Volume | 91L |
| Interior size | 450*450*450mm |
| Chamber material | stainless steel |
| Shelf (std.) | 2pcs |
| Shelves (max) | 2pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC380V/9.1A 50/60Hz |
| Input Power | 2.0Kw |
| Dimensions | 640*590*780mm |
| Net Weight | 82kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Stainless steel heating tube 4-sided heating |
| Exhaust port | F12mm |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 3-4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Packing size | 769*755*905mm |
| Shelf spacing | 185mm |
| Gross Weight | 105Kg |
| Safety Devices | Overrise alarm |
| Heating mode | Decompression, four-wall heating |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
| vacuum | <133Pa |
| Heating rate | 120min |
| Viewing Window | Bulletproof Tempered Glass |
| Vacuum Meter | Pointer |
| suction port | F12mm |
TaiSiTe DZ-3BCIV (with program mode) Vacuum Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
