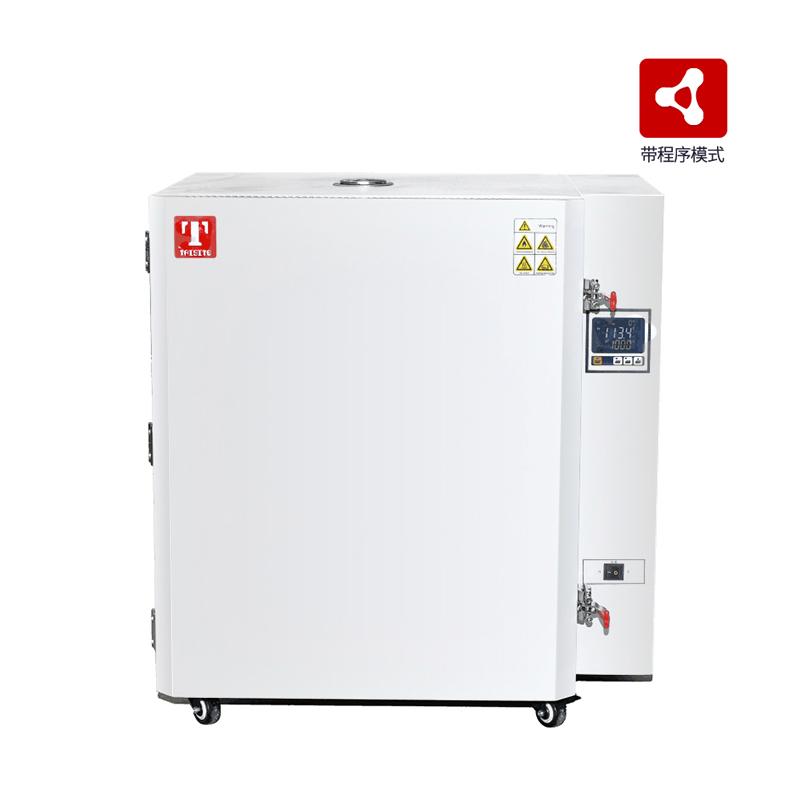

TAISITE TWG-5080L Ultra-high temperature experimental Drying Oven program-controlled type, temperature control 500 ℃ Volume 80L
Support program control mode, Interior size 400 * 400 * 450mm, Microcomputer PID high-precision temperature control, over-temperature alarm and menu lock safety function, forced hot air circulation, Heating power 3.0KW.
TaiSiTe
TWG-5080L (with program mode)
-
Kenton KH-75A laboratory electric air blowing dryer 225L with independent temperature limiter
$ 534.00 -
CHINA DHG-9053AE Desktop Forced Air Drying Oven 850W/50L
$ 406.00 -
YIHENG DHG-9070A Desktop Forced Air Drying Oven capacity is 80L Power 1550W
$ 532.00 -
BENTING CBHLL-45BE intelligent thermostatic Drying Oven 300 ℃/42L
Login -
Kenton KH-100AS digital display industrial air drying oven stainless steel liner with timing
$ 1167.00
Introduction
TWG high-temperature Drying Oven can realize drying, baking, sintering, curing, heat treatment, heat preservation and high temperature test.
Features
It can carry out high temperature heat resistance test and heat treatment at 400°C/500°C/6o0°C and below.
Intelligent microcomputer integrated temperature control system, PID logic operation function.
Color LCD screen digital display, with set temperature, constant temperature, timing, self-tuning, over-temperature alarm and other functions.
It has the function of call recovery, and also has the function of self-diagnosis of sensor start-up and over-temperature alarm.
The inner tank is made of 304 stainless steel, with rounded corners and corners, which is easy to clean.
The heating components are made of 304-resistant stainless steel heating tubes.
Inverted door lock, automatic locking when closing the door, easy to open and good sealing.
4 casters are given to facilitate the movement of the product, and there is a locking switch.
security
Over-lift alarm, menu lock.
TaiSiTe TWG-5080L (with program mode) High temperature Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~500°C |
| Temperature Fluctuation | ≤±2℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5% |
| Volume | 80L |
| Interior size | 400*400*450mm |
| Chamber material | 304 Hairline Brushed Stainless Steel |
| Shelf (std.) | 2pcs |
| Load per shelf | 10kg |
| Timer | 1~9999min |
| Power | 220V 14A |
| Heating power | 3.0KW |
| Dimensions | 770*610*850mm |
| Communication interface | 485 interface |
| Convection mode | Forced hot air circulation |
| Optional accessories | Program Controller (30 segments), Independent Overtemperature Protection Controller, sound and light alarm, Timer, printing system, inert gas inflation valve, inert gas Control system, mobile phone SMS alarm |
| Packing size | 870*720*980mm |
| Run function | Fixed value operation, regular operation |
| Temperature sensor | K type |
| Exhaust port | Overhead inner diameter 40mm |
| Heating tube | Dustproof stainless steel heating tube |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Heating rate | ≥5℃/min |
| Long-term use temperature | 480℃ |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
TaiSiTe TWG-5080L (with program mode) High temperature Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
