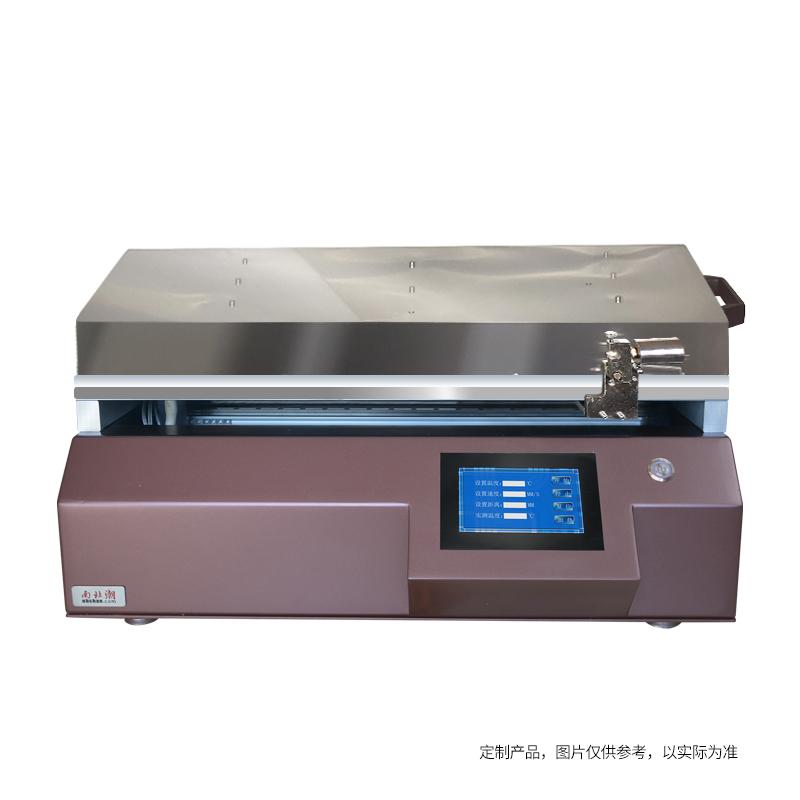

China TBJ-X4-DJ5 bar Heating Vacuum chuck Film Applicator with UV light curing Glue Coater
With UV ultraviolet curing function, using Mayer Rods film, Coating size 300 * 400mm, Heating Temperature range RT +~ 180 ℃, suitable for rolled copper foil film, mobile phone film Spreader.
zy
TBJ-X4-DJ5
TBJ-X5-DJ1
TBJ-B1-DJ5
-
HuiNuo TM2200Pro/03 drawdown blade vacuum adsorption high-precision coater effective Spreader area 400 * 400mm
$ 5356.00 -
HuiNuo TM3200/06 drawdown Bar & blade vacuum adsorption coater Adhesive 50 * 60cm
$ 6133.00 -
MODERNER AFA-V Miniature Automatic Film Applicator Automatic Film Applicator
Login -
China TBJ-A2 Heating Wire Rod Lab Film Applicator with Heating Scraping Machine
$ 1781.00 -
HuiNuo TM3000Pro/28 Automatic Film Applicator effective coating area 800 * 500mm servo motor
$ 4423.00
TBJ-X small-scale coating testing machine for inspection all adopts imported accessories, and the price is excellent and low. It has been favored by many R&D institutions of multinational companies, many familiar universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure to ensure the effect of coating and glue, to ensure the uniformity and stability of coating and glue.
TBJ-X4-DJ5 Wire Rod Heating Vacuum Adsorption Film Coating Machine with UV UV curing function, typical applications are film preparation on mobile phones, coating film on rolled copper foil, heating temperature range RT+~180℃, using wire Bar Coater Film making.
Optional
|
|
|
zy TBJ-X4-DJ5 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Spreader Accuracy | 1μm |
| Spreader thickness range | According to actual experimental requirements |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Heating Temperature range | RT+~180℃ |
| Temperature Accuracy | ±3℃ |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump size | 380*180*280mm |
| Host Power Supply | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| UV light curing area | 300*400mm |
| UV main peak wave | 365nm |
| UV Power | 400*2W |
| UV light curing wavelength | 350-450nm |
| UV UV Lamp Spacing | 18*18mm |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
zy TBJ-X4-DJ5 Automatic Film Applicator Packing list
Film Applicator X1, External vacuum pump (oil pump) X1, imported bar x1, UV light curing device (including UV lamp LED lamp * 2) x1 set, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
