YONGLIDA QNB-6 ISO flow Viscosity Cup 6mm Aperture Measurement range 188~ 684cSt
Viscosity range 188~ 684cSt, flow hole diameter 6mm, cup body material aluminum alloy, filter material stainless steel, Applicable standards ISO 2431, GB/T 6753.4.
YongLiDa
QNB-ISO-6
QNB-ISO-6
-
JINGKELIAN QNC-4C Coating Viscosity Cup
$ 110.00 -
YONGLIDA FORD-4 Ford Viscosity Cup paints viscosity measurement
$ 161.00 -
Ander LND-2 (5 #) No. 5 ISO cup with bracket Viscosity range 100~300cst
$ 189.00 -
TQC VF2027 Viscosity Cup filter, stainless steel 7mm
$ 141.00 -
Ander LND-2 (4 #) No. 4 ISO cup with bracket Viscosity range 35~ 135cst
$ 189.00
QNB ISO Outflow Viscosity Cup Overview
Yonglida QNB ISO outflow Viscosity Cup is a desktop ISO outFlow Cup designed according to ISO2431 and GB/T6753 standards. It is used to measure the outflow time of Newtonian or near-Newtonian liquids, and the time is between 30 and 100s. QNB ISO outflow Viscosity Cups are available in five models: QNB-3, QNB-4, QNB-5, QNB-6, QNB-8, the diameters of the mouth of the cups are 3mm, 4mm, 5mm, 6mm, 8mm respectively, and the cup body is made of aluminum alloy , The outflow nozzle is stainless steel.
Specifications
| model | outflow aperture | Measuring range |
| QNB-ISO-3 | 3mm | 7~42cSt |
| QNB-ISO-4 | 4mm | 34~135cSt |
| QNB-ISO-5 | 5mm | 91~326cSt |
| QNB-ISO-6 | 6mm | 188~684cSt |
| QNB-ISO-8 | 8mm | 600~2000cSt |
| Other parameters | ||
| material | Cup body: aluminum alloy; spout: stainless steel | |
| application standard | ISO 2431, GB/T 6753.4 | |
QNB ISO outflow Viscosity Cup display
QNB ISO Outflow Viscosity Cup Application Standard
ISO 2431 "Paints and varnishes - Determination of outflow time by outFlow Cup", GB/T 6753.4 "Determination of paint outflow time - ISO Flow Cup method"

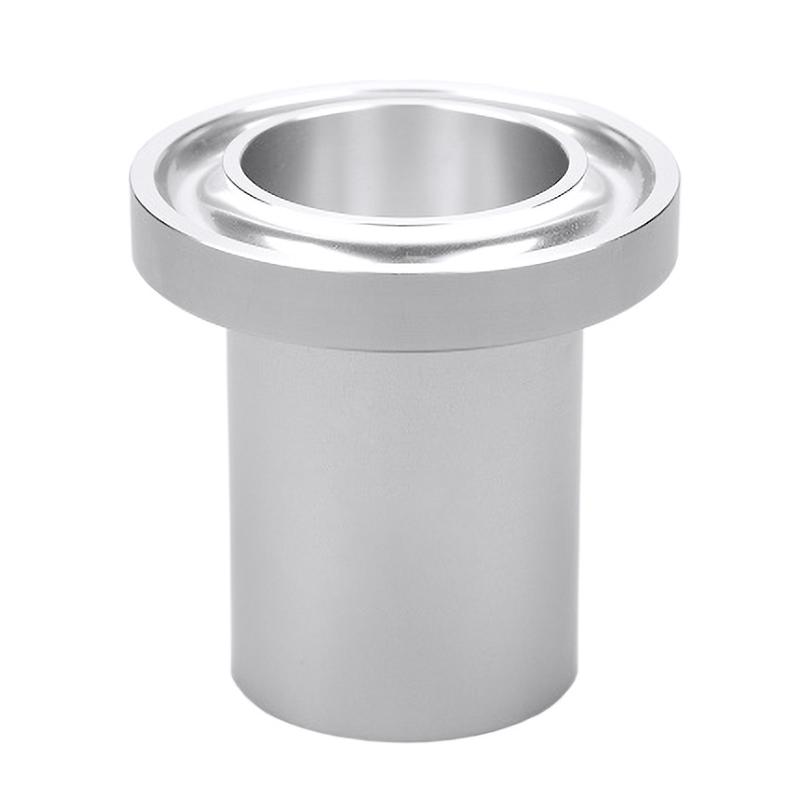

YongLiDa QNB-ISO-6 ISO Flow Cup (single cup)Specifications
| LIST | VALUE |
|---|---|
| Viscosity range | 188~684cSt |
| Flow hole diameter | 6mm |
| Cup body material | aluminum alloy |
| Filter material | stainless steel |
| Applicable standard | ISO 2431、GB/T 6753.4 |
| Certificate | without |
YongLiDa QNB-ISO-6 ISO Flow Cup (single cup) Packing list
Flow cup X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
