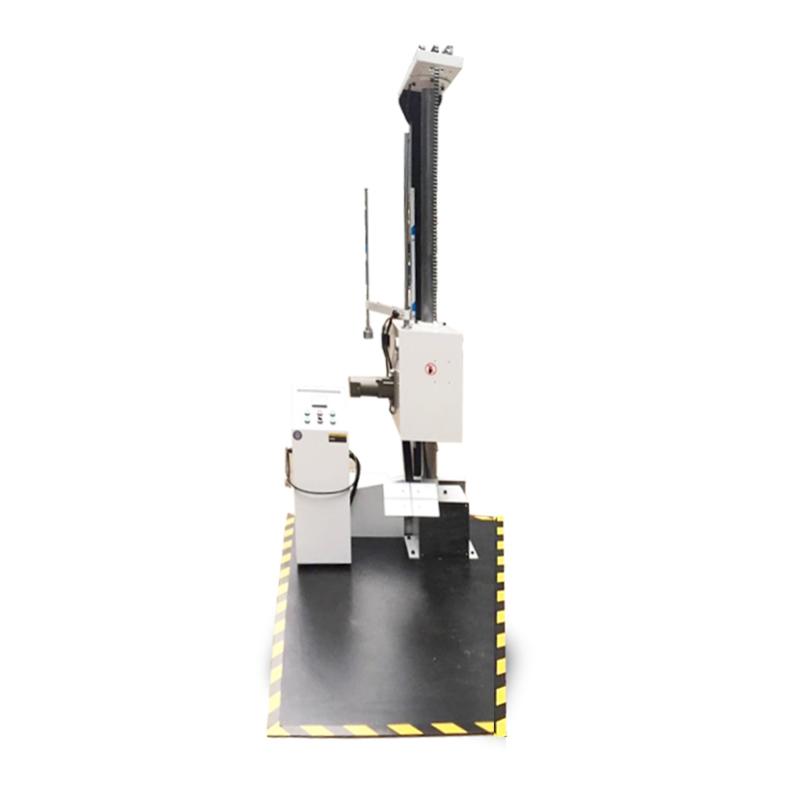

Factory BLD-613D Single wing drop machine

CHINA BLD-613D Single Wing Drop Machine

The drop height is adjustable from 300 to 1500mm, the maximum weight of the specimen is about 0-60Kg, and the thickness of the baseplate is 10mm. The buffer device greatly improves the service life, stability and safety of the machine.

Brand

SKU: NB043422

Factory

Model

BLD-613D

Price

$ 1816.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Factory shopSE

Information

Datasheet RFQ Contract

What else did others buy

CHINA NBC-1050B Double drum Drop Tester

$ 1131.00
HUIDA HD-6004 Single wing Dropping Tester Encasement Tester 300~1500mm

$ 2620.00
HUIDA HD-6005 Double wing Dropping Tester Encasement Tester 300~1500mm

$ 2620.00
CHINA BLD-613D Single Wing Drop Machine

$ 1816.00
CHINA NBC-5618B electric free Drop Tester, pneumatic Drop Tester 1.5 meters

$ 1363.00

Genuinegoods

Factory BLD-613D Single wing drop machineOverview
Specifications
Comments
FAQs

BLD-613D

Single wing drop machine

Applications

The single-arm Drop Tester is designed to test the damage caused by a drop in the product packaging and to evaluate the impact resistance during transportation and handling.

Features

The single-arm drop testing machine can do free drop tests on the surface, angle and edge of the package, and is equipped with a digital height display instrument and a decoder for height tracking, so as to accurately give the drop height of the product, and the error from the preset drop height is not more than 2% or 10MM. The machine adopts a single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting device, which is easy to use, and has a buffer device to greatly improve the service life, stability and safety of the machine. The single-arm setup allows for convenient product placement.

Applicable Standards

ISO2248、JISZ0202-87、GB/T4857.5-92

Factory BLD-613D Single wing drop machineSpecifications

LIST	VALUE
Maximum Weight of specimen	About 0-60Kg
Baseplate thickness	10mm
Maximum size of specimen	800 x 800 x 1000mm
Impact Panel Size	1700 x 1200mm
Drop height error	±10mm
Test Bench Dimensions	≈1700 x 1200 x 2315mm
Net Weight	Approx. 300kg
Control mode	electric
Drop height error	1%
Hit panel parallel error	≤ 1 degree
Angle error between falling surface and horizontal during falling process	≤ 1 degree
Power Supply	AC380V；50HZ
Power	1.85KWA

Factory BLD-613D Single wing drop machine Packing list

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Our factory needs to check the transportation safety of carton Encasement. What equipment should be used?

[A]

BLD-613D single arm drop machine. It can test up to 60kg weight, 800 × 800 × 1000mm size Encasement parts, fully covering common carton specifications. It adopts electric control, simple operation, and can meet international and domestic standards such as ISO2248 and GB/T4857.5.

[Q]

When buying a dropping tester, what should be paid attention to in terms of function?

[A]

It is recommended to pay attention to the three core functions of the BLD-613D: first, the electric lifting and resetting, which is labor-saving and efficient; second, the accurate height tracking system to ensure the accuracy of test data; third, the single-arm double-column structure, which is particularly convenient for placing specimens, greatly improving the daily detection efficiency.
