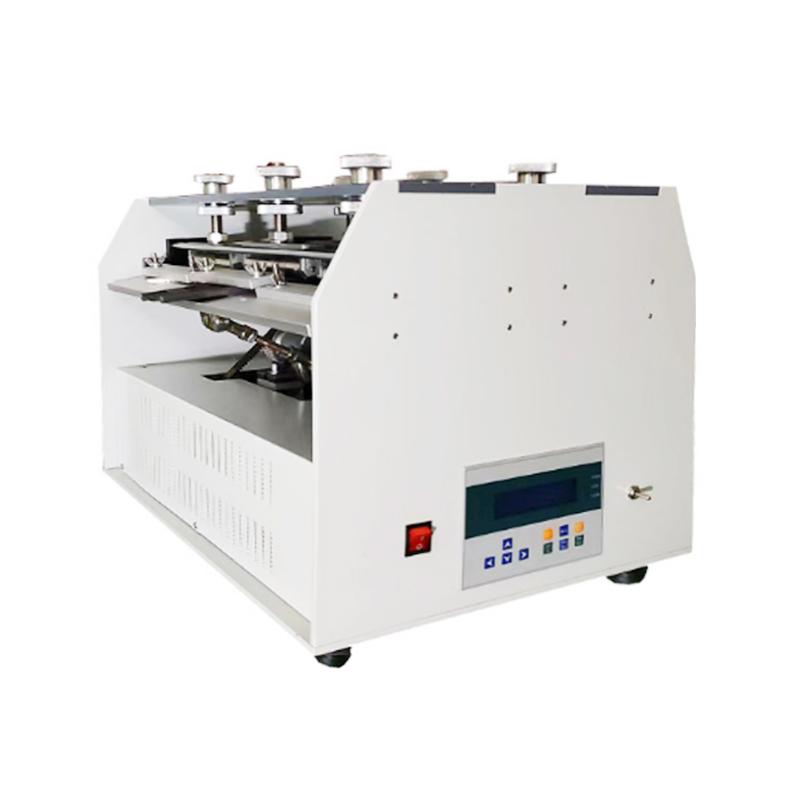

CHINA BLD-103 ROSS tortuous testing machine
The zigzag angle (90 +/- 2) °, the speed can be switched between 60r/min and 100r/min, the diameter of the zigzag shaft is 10mm, and six outsoles or 12 test pieces can be measured.
Factory
BLD-103
-
YANTE YT-CTM Folding Tester touch screen, fatigue performance test
$ 1846.00 -
Essence LD-NZ-02 Folding Strength Tester, Folding Strength Tester, Touch Screen
$ 1585.00 -
JINGWEN JW107C2 paper MIT folding resistance Tester
$ 1350.00 -
CHINA ZY-NZ-1 Folding Tester Cardboard Folding Tester
$ 1563.00 -
Huida HD-3004 low temperature folding test machine to test the cold resistance of rubber/plastic/sole/synthetic leather, etc
$ 6522.00
Introduction
The sole strip test piece is installed on the ROSS flex testing machine, so that the inchement falls directly above the center of the rotating shaft of the ROSS tortuous testing machine, and the test specimen is driven to bend freely on the shaft by the ROSS tortuous testing machine, and after a certain number of tests, the length of the incision of the test specimen is measured, and the flexural resistance of the test sole is evaluated by the size of the incision growth rate, and six outsoles or 12 test pieces can be measured.
Meets standards
Comply with GB/T21148, ASTM D1052, ISO 5423, SATRA TM60, HB-T2411 and other standards.
Factory BLD-103 ROSS tortuous testing machineSpecifications
| LIST | VALUE |
|---|---|
| Zigzag angle | (90±2)º |
| speed | 60R/min and 100r/min can be switched |
| Zigzag shaft diameter | 10mm |
| Weight | About 105kg |
| Power | 400W |
| Power Supply | AC220V 10A |
Factory BLD-103 ROSS tortuous testing machine Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
