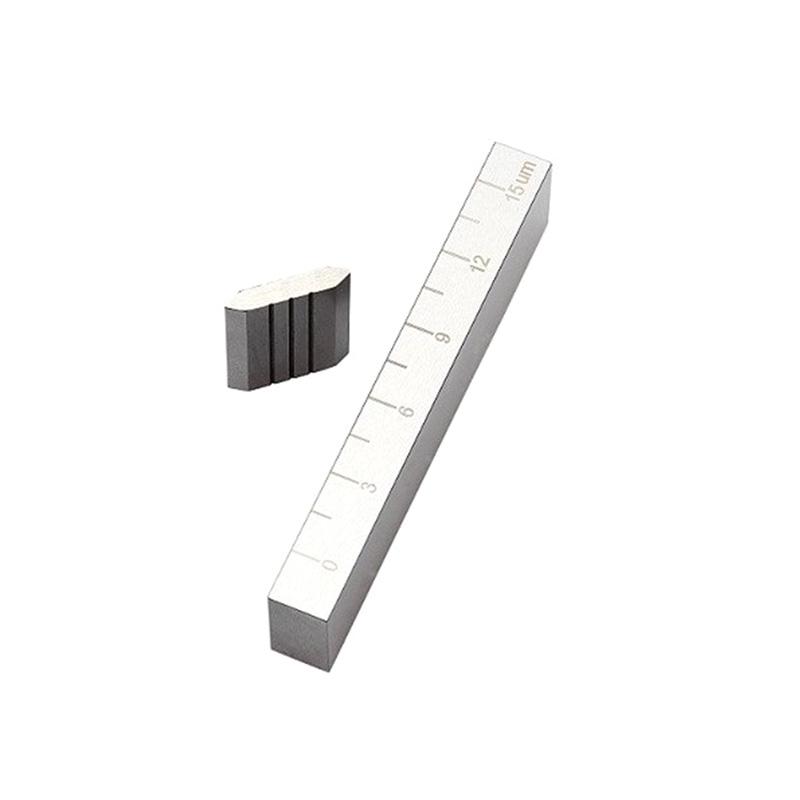

Pushen 0-15um Fineness gauge (double-channel)

Pushen 0-15um double-channel Fineness gauge 0~15μm

Pushen 0-15um double-channel Fineness gauge scraper size is 165 × 37 × 12mm, used for Coating inks Fineness detection, PU-2402 double-channel Fineness gauge measuring range is 0~15μm, slot width is 12mm.

Brand

SKU: NB004351

Pushen

Model

Price

$ 214.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Pushen shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

TRUIT TR 1201/150 single-channe fineness gauge 0~ 150μm

$ 165.00
TQC VF2120 wide-channel Grindometer 0~15μm with calibrated certificate

$ 1193.00
JINGKELIAN QXP 0-50S ISO Fineness of Ground Gauge Fineness gauge 0~50μm/5μm

$ 183.00
TQC VF2121 wide-channel Grindometer 0~25μm with calibrated certificate

$ 1193.00
JINGKELIAN QXP 0-50 single-channe Fineness of Ground Gauge Fineness gauge 0~50μm/5μm

$ 148.00

Genuinegoods

Pushen 0-15um Fineness gauge (double-channel)Overview
Specifications
Comments
FAQs

0-15um

Fineness gauge (double-channel)

Introduction of double groove small Fineness of Grind Gauge

Pushen/Pushen single-slot small Fineness of Grind Gauge includes two models PU-2400 and PU-2401. PU-2402 is a double-slot Fineness of Grind Gauge , which is developed and designed according to the parameters specified in the relevant standards of the Fineness Meter. Yes, there are three units of measurement: microns, Hegmans, and mils.Pushen PU-2400/2401/2402 single groove small Fineness of Grind Gauge has three measuring ranges: 0~15μm, 0~25μm, 0~15μm respectively, and the corresponding groove width is 12mm.

Pushen double-slot small Fineness of Grind Gauge is made of stainless steel. It is a double-slot Fineness of Grind Gauge, which is used to detect the fineness of particles such as paint and ink.

Pictures

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 1

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 2

Small Fineness of Grind Gauge Pushen NBCHAO professional photo 3

Pushen 0-15um Fineness gauge (double-channel)Specifications

LIST	VALUE
Scraper type	double-channel
Number of grooves	2
range	0 ~ 15µm
Scale unit	mm
Scraper material	stainless steel
Scraper size	1653712mm
Groove width	12mm
Graduation	1.5µm

Pushen 0-15um Fineness gauge (double-channel) Packing list

Scraper x1, Scraper x1, Instruction Manual x1, Plastic Encasement Box x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What is the slot width of this Pushen 2 paths small scraper Fineness meter?

[A]

Hello, the slot width is 12mm.

[Q]

Is this the small Fineness gauge mentioned in QB/T5477?

[A]

[Q]

Fineness of electric conductive ink particles, is it measured with this scraper Fineness meter? How to measure?

[A]

Fineness of electric conductive ink can be measured with scraper Fineness meter. For specific measurement methods, please refer to the operation manual or video of NBchao. Com Mall Knowledge Base or any Fineness meter details page.

[Q]

Carbon nanotube slurry with which type of Fineness gauge? Fineness about 5 to 10 error.

[A]

It is recommended to use a Fineness gauge with a range of 0 to 15 μm, one path 2 paths is OK. If this range is expected to expand, choose a Fineness gauge with a range of 0 to 25 μm appropriately.

[Q]

What material is this? 304?

[A]

Hello, 304 cannot be used as a scraper because it has no hardness. The materials used by domestic manufacturers are 4Cr13.
