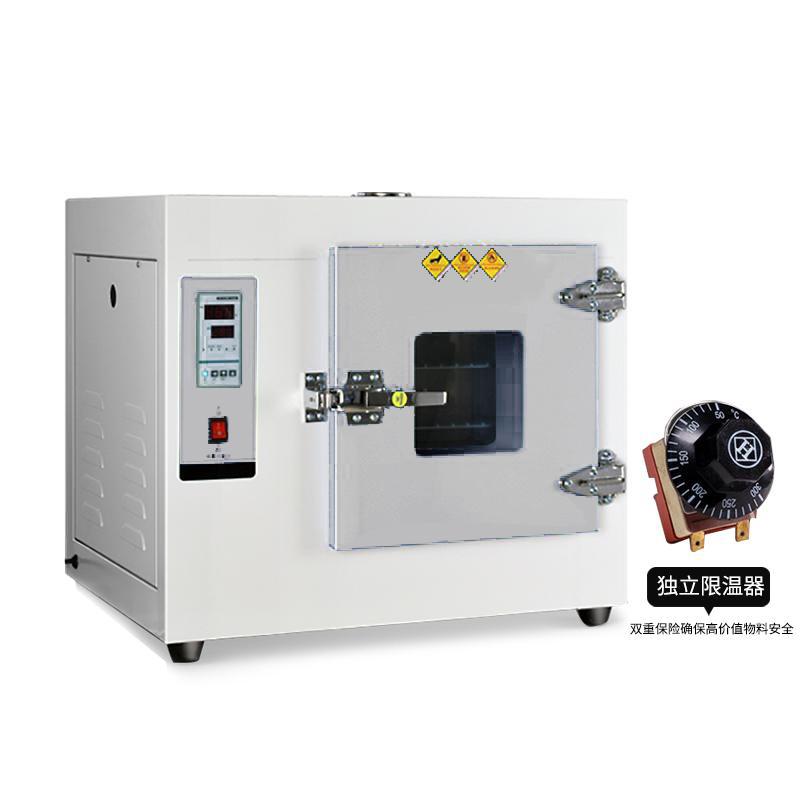

Kenton 101-2A digital display experimental Forced Air Drying Oven 136L with independent temperature limiter
Standard independent temperature controller, Temperature range RT + 5~ 300 ℃, volume 136L, standard 2 Shelf, using microcomputer intelligent PID digital display.
Kenton-
Kenton DHG-9130C Precision digital display thermostatic drying oven 130L
$ 626.00 -
Kenton KH-45A digital electric air blowing dryer 250 ℃/70L
$ 305.00 -
SANFA DZF-6050ES Vacuum Oven
$ 1520.00 -
BENTING CBGL-100B-3 Stack oven vertical mirror paint stainless steel studio
$ 3180.00 -
SANFA DZF-6420ES Vacuum Oven
$ 9022.00








Recommendations
It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops. It is not recommended for long-term uninterrupted use. It is not recommended for samples with high temperature uniformity requirements and large moisture content. For more expensive samples, it is recommended to install an independent temperature limit controller.
Application
It is used for drying, baking, heat treatment, and heating by industrial and mining enterprises, laboratory scientific research units, etc., but it is not suitable for volatile, flammable, explosive and other items to avoid causing explosions.

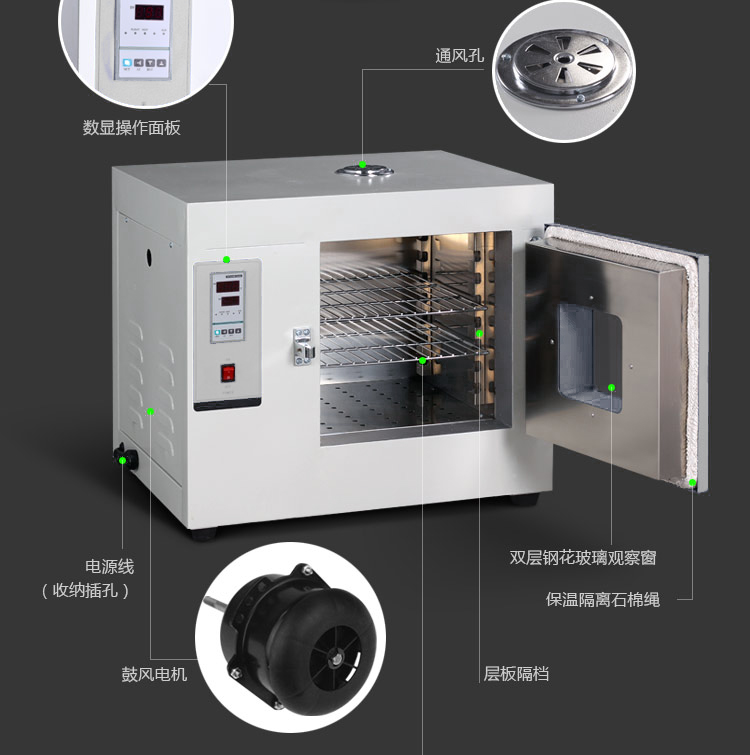

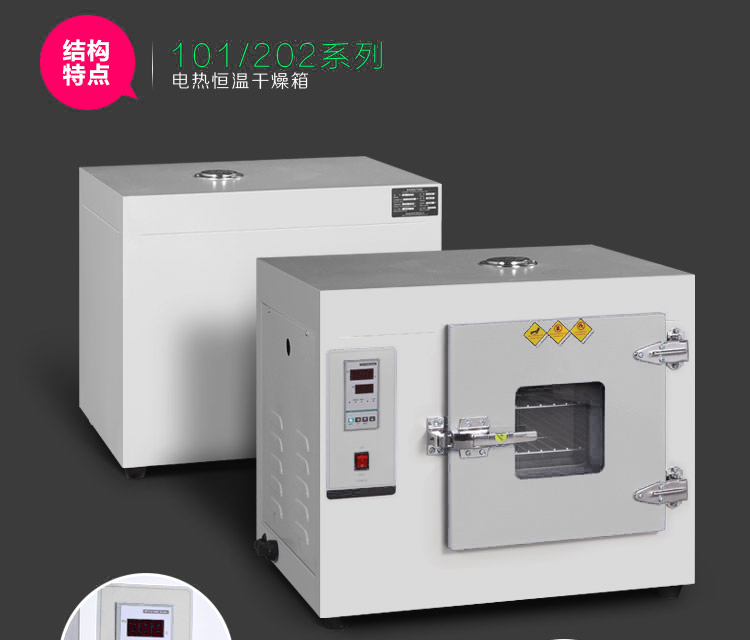

Structural features

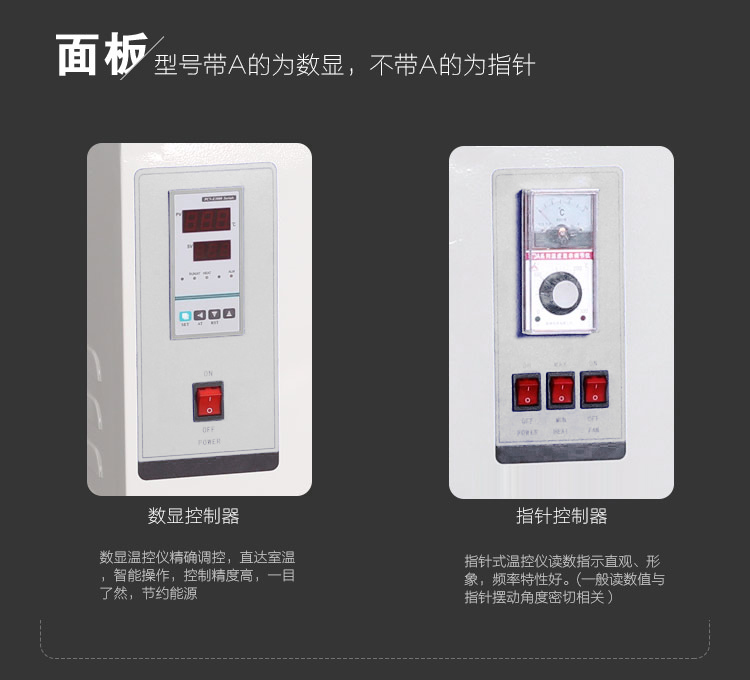

1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;
2. The outer casing is spray-painted with metallic paint, and the overall design is beautiful and elegant;
3. The hot air circulation system consists of low-noise fans and air ducts;
4. The inner tank is divided into two types: mirror stainless steel and galvanized steel plate;
5. The height and number of shelves in the studio can be adjusted to facilitate access to samples of different specifications;
6. The box door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.
Optional :
1. Intelligent digital display temperature controller with timing function;
2. Independent temperature limit controller.
product specifications
model | Studio specificationsmm (Height à Width à Depth) | Voltage | power | Temperature control range | Accuracy | Volatility |
Pointer type electric blast Drying Oven (galvanized inner tank) | ||||||
101-0 | 350Ã350à 350mm | 220V | 0.8~1.6Kw | RT+5~300 ℃ | ±1 ℃ | ±1 % |
101-1 | 450Ã450Ã 350mm | 0.8~ 1.6Kw | ||||
101-2 | 550Ã550Ã 450mm | 1.6~2.4 Kw | ||||
101-3 | 750Ã600à 500mm | 2~ 3Kw | ±2 % | |||
101-4 | 1000Ã800Ã 800mm | 380V | 3~ 4.8Kw | |||
101-5 | 1000Ã1000Ã 1000mm | 4~6 | ||||
Digital display electric Forced Air Drying Oven (galvanized liner) | ||||||
101-0A | 350Ã350à 350mm | 220V | 0.8~ 1.6Kw | RT+5~300 ℃ | ±1 ℃ | ±1 % |
101-1A | 450Ã450Ã 350mm | 0.8~ 1.6Kw | ||||
101-2A | 550Ã550Ã 450mm | 1.6~2.4 Kw | ||||
101-3A | 750Ã600à 500mm | 2~ 3Kw | ±2 % | |||
101-4A | 1000Ã800Ã 800mm | 380V | 3~ 4.8Kw | |||
101-5A | 1000Ã1000Ã 1000mm | 4~ 6Kw | ||||
Pointer type electric Forced Air Drying Oven (stainless steel liner) | ||||||
101-0S | 350Ã350à 350mm | 220V | 0.8~ 1.6Kw | RT+5~300 ℃ | ±1 ℃ | ±1 % |
101-1S | 450Ã450Ã 350mm | 0.8~ 1.6Kw | ||||
101-2S | 550Ã550Ã 450mm | 1.6~2.4 Kw | ||||
101-3S | 750Ã600Ã 500mm | 2~ 3Kw | ||||
101-4S | 1000Ã800à 800mm | 380V | 3~ 4.8Kw | ±2 % | ||
101-5S | 1000Ã1000Ã 1000mm | 4~ 6Kw | ||||
Digital display electric Forced Air Drying Oven (stainless steel liner) | ||||||
101-0AS | 350Ã350à 350mm | 220V | 0.8~ 1.6Kw | RT+5~300 ℃ | ±1 ℃ | ±1 % |
101-1AS | 450Ã450Ã 350mm | 0.8~ 1.6Kw | ||||
101-2AS | 550Ã550Ã 450mm | 1.6~2.4 Kw | ||||
101-3AS | 750Ã600à 500mm | 2~ 3Kw | ±2 % | |||
101-4AS | 1000Ã800Ã 800mm | 380V | 3~ 4.8Kw | |||
101-5AS | 1000Ã1000Ã 1000mm | 4~ 6Kw | ||||
Kenton 101-2A + independent temperature limiter Digital Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+5~300℃ |
| Temperature Fluctuation | ±1% |
| Accuracy | ±1℃ |
| Volume | 136L |
| Interior size | 550*550*450mm |
| Chamber material | Galvanized steel sheet |
| Enclosure Material | Metallic paint spraying |
| thermostat | Microcomputer intelligent PID digital display |
| Viewing Window | Yes. |
| Power | 220V |
| Input Power | 1.6~2.4Kw |
| Dimensions | 790*870*640mm |
| Standard number of laminates | 2 |
| Laminate spacing | 4cm |
| Maximum number of layers | 11 |
Kenton 101-2A + independent temperature limiter Digital Electric Forced Air Drying Oven Packing list
Complete machine X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
