      Home> Drying Oven> Kenton> Kenton 101-4A + independent temperature limiter Digital Electric Forced Air Drying Oven

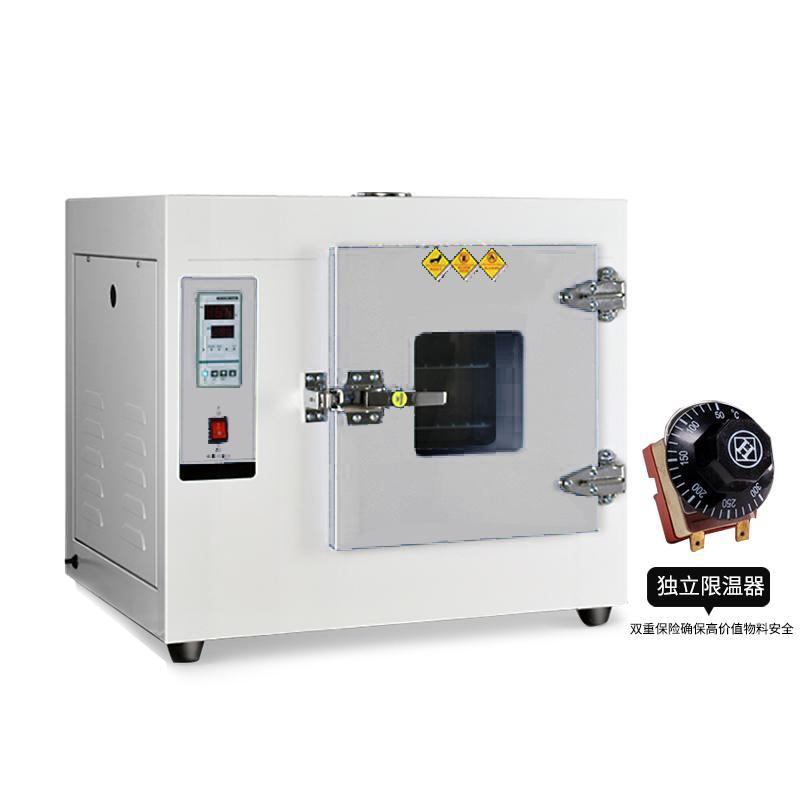

      Kenton 101-4A digital Forced Air Drying Oven 640L with independent temperature limiter

      Standard independent temperature controller, Temperature range RT + 5~ 300 ℃, volume 640L, standard 2 Shelf, using microcomputer intelligent PID digital display.

      VS
      Genuinegoods
      • Kenton 101-4A + independent temperature limiter Digital Electric Forced Air Drying OvenOverview

      • Specifications
      • Comments
      • FAQs
      101-4A + independent temperature limiter
      Digital Electric Forced Air Drying Oven
      • Kenton 101-4A digital Forced Air Drying Oven 640L with independent temperature limiter
      • Kenton 101-4A digital Forced Air Drying Oven 640L with independent temperature limiter Figure 1
      • Kenton 101-4A digital Forced Air Drying Oven 640L with independent temperature limiter Figure 2
      Standard independent temperature controller, Temperature range RT + 5~ 300 ℃, volume 640L, standard 2 Shelf, using microcomputer intelligent PID digital display.



      Detailed picture of electric Forced Air Drying Oven 3

      Detailed picture of electric Forced Air Drying Oven 4

      Detailed picture of electric Forced Air Drying Oven 5

      Detailed picture of electric Forced Air Drying Oven 6


      Detailed picture of electric Forced Air Drying Oven 8

      Recommendations

      It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops. It is not recommended for long-term uninterrupted use. It is not recommended for samples with high temperature uniformity requirements and large moisture content. For more expensive samples, it is recommended to install an independent temperature limit controller.

      Application

      It is used for drying, baking, heat treatment, and heating by industrial and mining enterprises, laboratory scientific research units, etc., but it is not suitable for volatile, flammable, explosive and other items to avoid causing explosions.

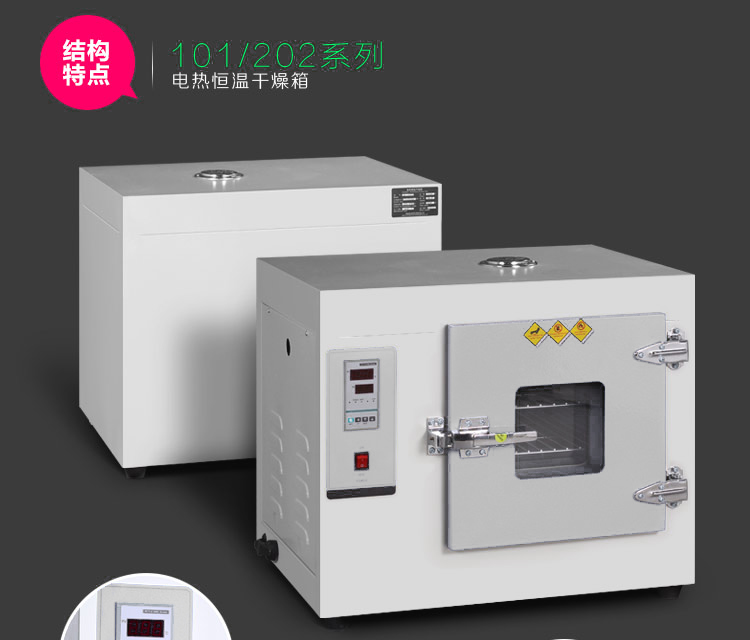

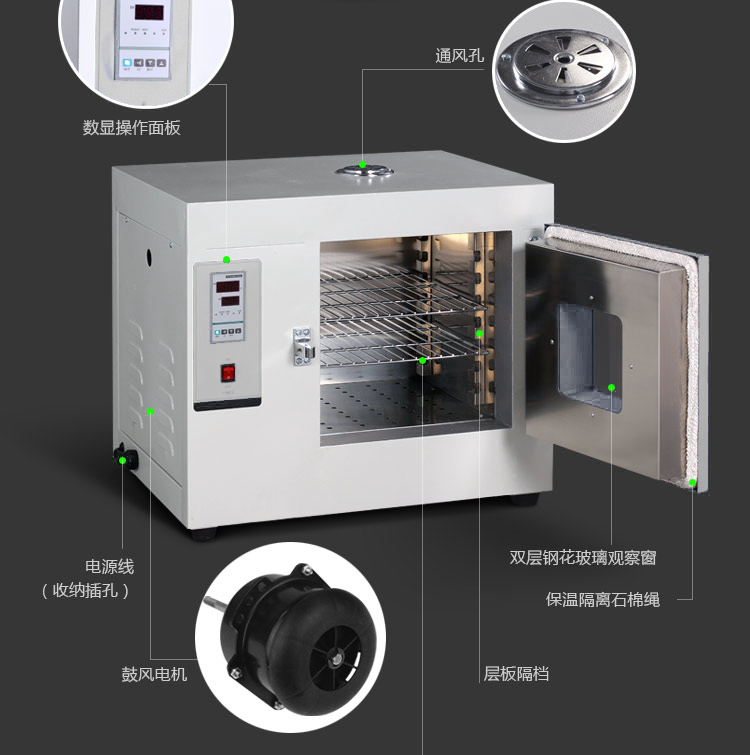

      Structural features

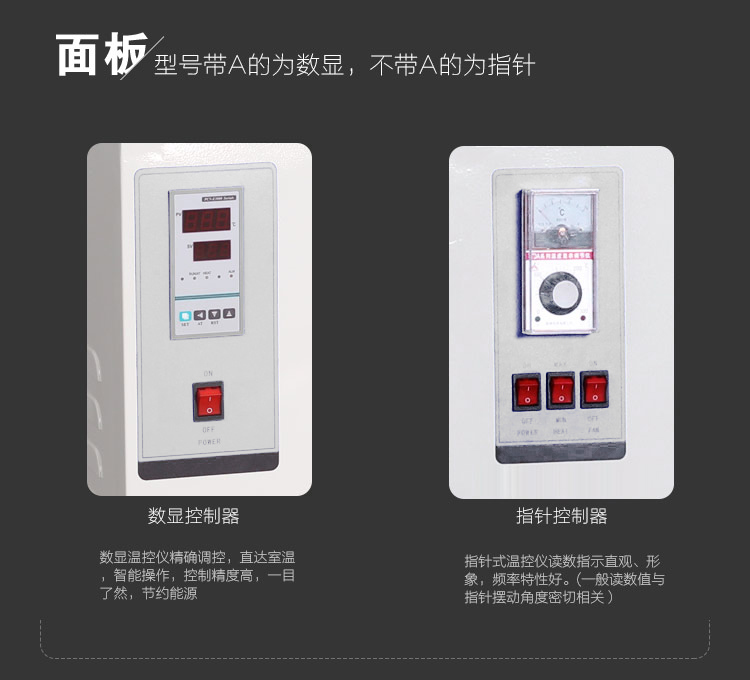

      1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;

      2. The outer casing is spray-painted with metallic paint, and the overall design is beautiful and elegant;

      3. The hot air circulation system consists of low-noise fans and air ducts;

      4. The inner tank is divided into two types: mirror stainless steel and galvanized steel plate;

      5. The height and number of shelves in the studio can be adjusted to facilitate access to samples of different specifications;

      6. The box door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.

      Optional :

      1. Intelligent digital display temperature controller with timing function;

      2. Independent temperature limit controller.

      product specifications

      model

      Studio specificationsmm

      (Height × Width × Depth)

      Voltage

      power

      Temperature control range

      Accuracy

      Volatility

      Pointer type electric blast Drying Oven (galvanized inner tank)

      101-0

      350×350× 350mm

      220V

      0.8~1.6Kw

      RT+5~300

      ±1

      ±1 %

      101-1

      450×450× 350mm

      0.8~ 1.6Kw

      101-2

      550×550× 450mm

      1.6~2.4 Kw

      101-3

      750×600× 500mm

      2~ 3Kw

      ±2 %

      101-4

      1000×800× 800mm

      380V

      3~ 4.8Kw

      101-5

      1000×1000× 1000mm

      4~6

      Digital display electric Forced Air Drying Oven (galvanized liner)

      101-0A

      350×350× 350mm

      220V

      0.8~ 1.6Kw

      RT+5~300

      ±1

      ±1 %

      101-1A

      450×450× 350mm

      0.8~ 1.6Kw

      101-2A

      550×550× 450mm

      1.6~2.4 Kw

      101-3A

      750×600× 500mm

      2~ 3Kw

      ±2 %

      101-4A

      1000×800× 800mm

      380V

      3~ 4.8Kw

      101-5A

      1000×1000× 1000mm

      4~ 6Kw

      Pointer type electric Forced Air Drying Oven (stainless steel liner)

      101-0S

      350×350× 350mm

      220V

      0.8~ 1.6Kw

      RT+5~300

      ±1

      ±1 %

      101-1S

      450×450× 350mm

      0.8~ 1.6Kw

      101-2S

      550×550× 450mm

      1.6~2.4 Kw

      101-3S

      750×600× 500mm

      2~ 3Kw

      101-4S

      1000×800× 800mm

      380V

      3~ 4.8Kw

      ±2 %

      101-5S

      1000×1000× 1000mm

      4~ 6Kw

      Digital display electric Forced Air Drying Oven (stainless steel liner)

      101-0AS

      350×350× 350mm

      220V

      0.8~ 1.6Kw

      RT+5~300

      ±1

      ±1 %

      101-1AS

      450×450× 350mm

      0.8~ 1.6Kw

      101-2AS

      550×550× 450mm

      1.6~2.4 Kw

      101-3AS

      750×600× 500mm

      2~ 3Kw

      ±2 %

      101-4AS

      1000×800× 800mm

      380V

      3~ 4.8Kw

      101-5AS

      1000×1000× 1000mm

      4~ 6Kw

      VS

      Kenton 101-4A + independent temperature limiter Digital Electric Forced Air Drying OvenSpecifications

      LIST VALUE
      Temperature range RT+5~300℃
      Temperature Fluctuation ±2%
      Accuracy ±1℃
      Interior size 1000*800*800mm
      Chamber material Galvanized steel sheet
      Enclosure Material Metallic paint spraying
      thermostat Microcomputer intelligent PID digital display
      Viewing Window Yes.
      Power 380V
      Input Power 3~4.8Kw
      Dimensions 1300*1210*1000mm
      Standard number of laminates 2
      Laminate spacing 20cm
      Maximum number of layers 5

      Kenton 101-4A + independent temperature limiter Digital Electric Forced Air Drying Oven Packing list

      Complete machine X1, manual X1, certificate of conformity X1, warranty card X1

      [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
