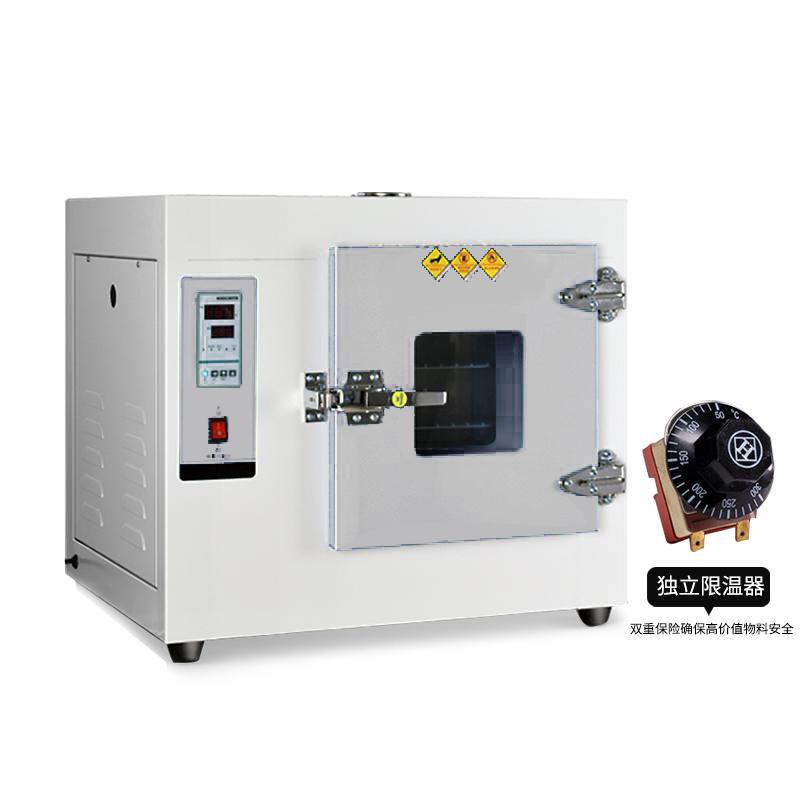

Kenton 101-2AS digital Electric Forced Air Drying Oven 136L with independent temperature limiter
Stainless steel liner, size is 550 × 550 × 450mm, standard independent temperature limit controller, double safety guarantee, temperature control up to 300 ℃, using blast forced convection circulation system.
Kenton-
RONGHUA DHG-9030A Electric thermostatic Drying Oven
$ 343.00 -
YIHENG DHG-9245A Desktop Forced Air Drying Oven Input Power 2450W
$ 863.00 -
BENTING CBGL-30B vertical standard Forced Air Drying Oven 300 ℃/30L oven
Login -
Kenton KH-45T digital electric air blowing dryer 250 ℃/42L
$ 722.00 -
Kenton DZF-6050 Experimental Vacuum Oven cold rolled sheet liner with 2L Vacuum Pump
$ 991.00








Suggestions for use
It is suitable for routine testing in industrial and mining enterprises, basic laboratories and workshops, and is not recommended for long-term uninterrupted use. Samples with high temperature uniformity and high water content are not recommended. For more valuable samples, it is recommended to be equipped with an independent temperature limiting controller.
Application
It is used for drying, baking, heat treatment and heating in industrial and mining enterprises and laboratory scientific research units, but it is not suitable for volatile, flammable, explosive and other items to avoid explosion.

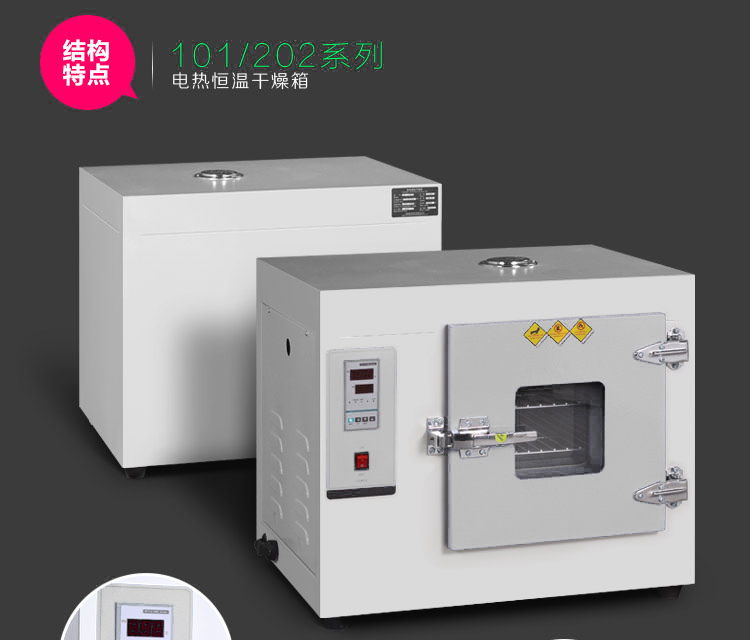

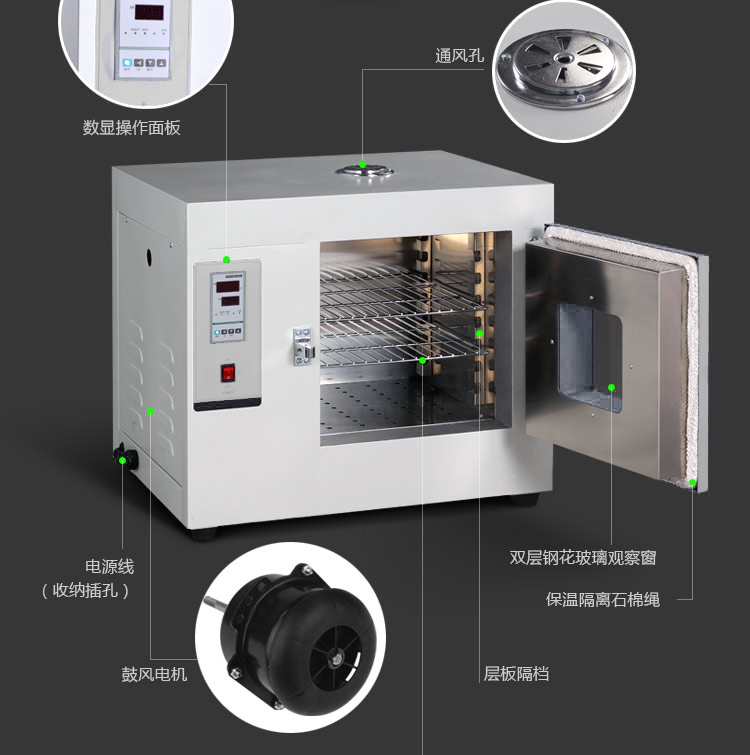

Structural features

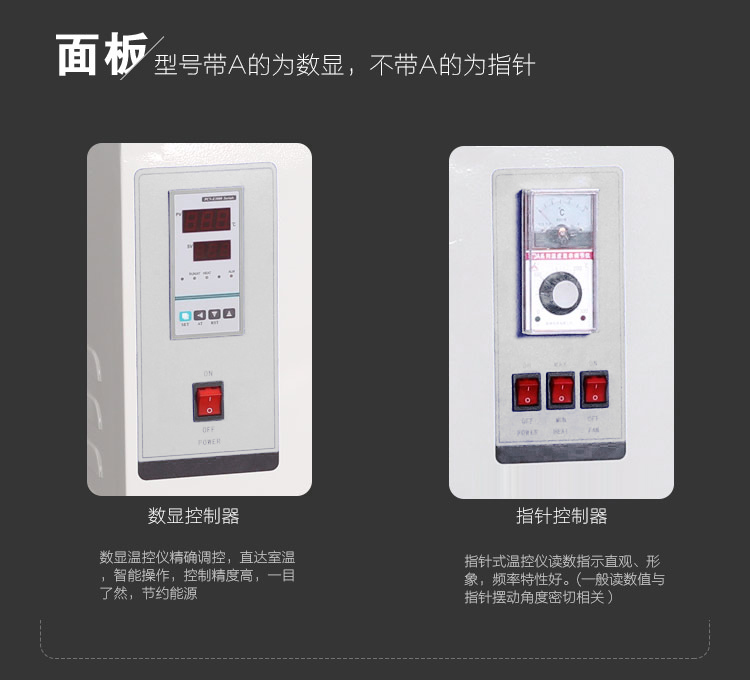

1. The thermostat is divided into two types: Dial-Type and microcomputer intelligent PID digital display;
2. The shell is sprayed with metal paint, and the overall design is beautiful and generous;
3. The hot air circulation system is composed of a low-noise fan and an air duct;
4. The inner tank is divided into two types: mirror stainless steel and galvanized steel;
5. The height and number of shelves in the studio can be adjusted, which is convenient for accessing samples of different specifications;
6. The door is equipped with a double-layer tempered glass observation window, which can clearly observe the contents of the box.
Optional Accessories:
1. Intelligent digital display temperature controller with timing function;
2. Independent temperature limiting controller.
Product Specifications
Model | Studio Specifications mm (Height× Width×Depth) | Voltage | power | Temperature control range | precision | Volatility |
Pointer electric blowerDrying oven(galvanized bile liner) | ||||||
101-0 | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1 | 450×450×350mm | 0.8~1.6Kw | ||||
101-2 | 550×550×450mm | 1.6~2.4Kw | ||||
101-3 | 750×600×500mm | 2~3Kw | ±2% | |||
101-4 | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5 | 1000×1000×1000mm | 4~6 | ||||
Digital display electric heatingForced Air Drying Oven(galvanized bile liner) | ||||||
101-0A | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1A | 450×450×350mm | 0.8~1.6Kw | ||||
101-2A | 550×550×450mm | 1.6~2.4Kw | ||||
101-3A | 750×600×500mm | 2~3Kw | ±2% | |||
101-4A | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5A | 1000×1000×1000mm | 4~6Kw | ||||
Pointer electric Forced Air Drying Oven (stainless steel liner) | ||||||
101-0S | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1S | 450×450×350mm | 0.8~1.6Kw | ||||
101-2S | 550×550×450mm | 1.6~2.4Kw | ||||
101-3S | 750×600×500mm | 2~3Kw | ||||
101-4S | 1000×800×800mm | 380V | 3~4.8Kw | ±2% | ||
101-5S | 1000×1000×1000mm | 4~6Kw | ||||
Digital display electric blower Drying Oven(Stainless steel liner) | ||||||
101-0AS | 350×350×350mm | 220V | 0.8~1.6Kw | RT+5~300℃ | ±1℃ | ±1% |
101-1AS | 450×450×350mm | 0.8~1.6Kw | ||||
101-2AS | 550×550×450mm | 1.6~2.4Kw | ||||
101-3AS | 750×600×500mm | 2~3Kw | ±2% | |||
101-4AS | 1000×800×800mm | 380V | 3~4.8Kw | |||
101-5AS | 1000×1000×1000mm | 4~6Kw | ||||
Kenton 101-2AS + independent temperature limiter Digital Electric Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+5~300℃ |
| Temperature Fluctuation | ±1% |
| Accuracy | ±1℃ |
| Interior size | 550*550*450mm |
| Chamber material | stainless steel |
| Enclosure Material | Metallic paint spraying |
| thermostat | Microcomputer intelligent PID digital display |
| Viewing Window | Yes. |
| Power | 220V |
| Input Power | 1.6~2.4Kw |
| Dimensions | 790*870*640mm |
| Standard number of laminates | 2 |
| Laminate spacing | 4cm |
| Maximum number of layers | 11 |
Kenton 101-2AS + independent temperature limiter Digital Electric Forced Air Drying Oven Packing list
Complete machine X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
