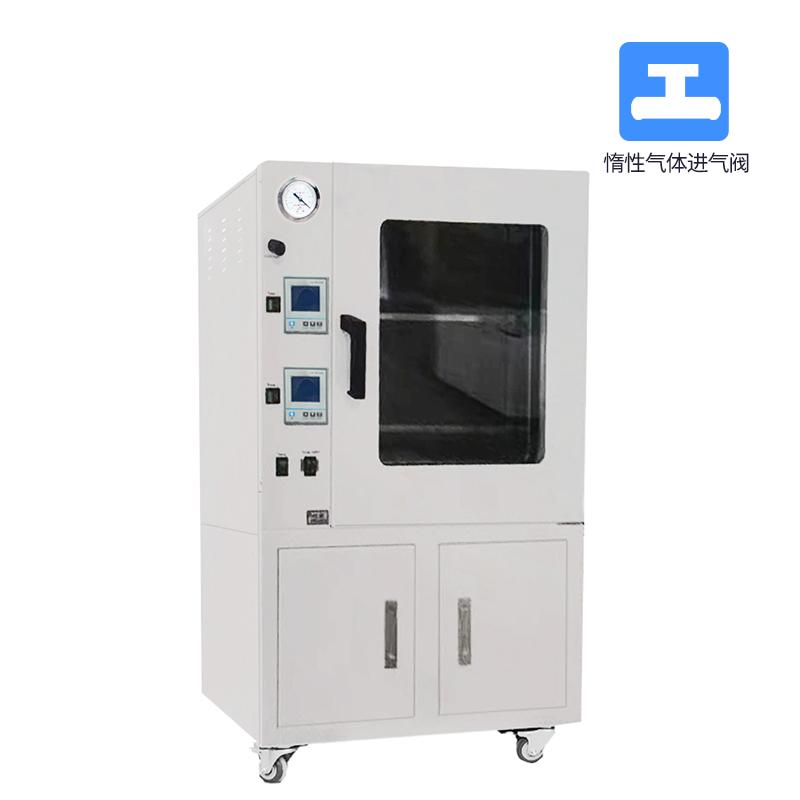

HUITAI DZF-6210 Benchtop Vacuum oven with vacuum pump with inert gas intake valve

Overview

Huitai DZF-6210 vacuum Drying Oven is widely used in biochemistry, chemical and pharmaceutical, medical and health, agricultural scientific research, environmental protection and other research and Applications, for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and effective drying of heat-sensitive, easily decomposed, easily oxidized substances and complex composition items.

Product technical advantages

 The vacuum environment greatly reduces the boiling point of the liquid that needs to be expelled, so vacuum drying can be easily applied to heat-sensitive substances;

 For samples that are not easy to dry, such as powder or granular samples, vacuum drying can effectively shorten the drying time;

 Various mechanical parts or other porous samples with complex structures are cleaned and then vacuum-dried, leaving no participating substances after complete drying;

 It is safer to use, under vacuum or inert conditions, completely eliminates the possibility of thermal explosion of oxides;

 Compared with ordinary drying that relies on air circulation, powdery samples will not be blown or moved by the flowing air.

Features

1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate.

2. The aluminum shelf stamped by special process has high temperature non-oxidation and fast heat conduction. Minimize heat loss

3. The rectangular parallelepiped working room makes the utilization rate of the effective volume large, and the microcomputer temperature controller ensures accurate and reliable temperature control.

4. Toughened, bulletproof double-layer glass door to observe the objects in the working room at a glance, and can fill the interior with inert gas.

5. The tightness of the box door can be adjusted freely by the user. The integrally formed silicone rubber door seal ensures high vacuum in the box.

6. The working room is made of stainless steel plate, enclosure is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7. Storage, heating, testing and drying are carried out in an environment without oxygen or filled with inert gas, which will not cause oxidation.

8. The heating element is located on the inner partition of the box, and the heating time is shortened by 50% compared with the traditional vacuum drying box.

Optional

Intelligent program controller

Inert gas inlet valve

Gas-liquid separator

vacuum drying tank

Cabinet (6020/6030/6050)

Vacuum pump-2XZ-2

Vacuum pump-2XZ-4

DZF series vacuum Drying Oven parameter comparison

Host X1, fuse X2, certificate X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
